4 Channel Digital Video Recorder - 160GB - Discontinued

4 Channel Digital Video Recorder - 160GB0DVR-EZ-PRO

Loading …

Dimensions: (mm) -
w: 301mm x d: 280mm x h: 56mm

Integral power for 12VdC cameras up to
2000ma (500ma/channel)
4 Channel Digital Video Recorder
Internal 160GB HDD

Record all four channels of a Witness observation kit ( or any other suitable CCTV System ) in full screen at all times.
Crisp and clear digital images. Instant date and time search facility.
Built in pixel motion detection .
USB port for extraction of images to a PC ( software included).
Complete with all required cables . Simple on screen set up .

This digital video recorder (DVR) records and retrieves real-time video streams
from up to 4-channels simultaneously. Advanced M-JPEG digital video image
compression technology is used to compress the input video streams for storage
onto an internal hard disk drive (HDD).

DVR-EZPRO and the networkable DVR-EZPRON have been developed on a brand new platform
to provide installers with a robust 4 channel solution at market competitive pricing. Popular features
from the previous model such as built in power supply for cameras, now an enviable 500ma per channel, have
been retained however many new requested features have been added.
Recordings can now be backed up directly to a USB stick (sometimes known as a flash drive). Images can be viewed
sequentially or picture in picture as well as quad and the standard high quality Seagate SV35 drive can be easily replaced or upgraded if required.
Overall the unit has a much simpler end user interface, more like a VCR than a PC and now at last most of the functions can be operated via a remote control.

  • Motion Detection on all four channels.
  • Five levels of sensitivity on motion detection.
  • Two adjustable motion detection fields per channel.
  • Audio input on all four channels, single audio recording.
  • Three levels of video quality.
  • Four alarm inputs (either NO or NC). Single alarm output.
  • Watchdog, recording automatically resumes after power loss.
  • Quick search from time/date and event menu
  • Stores up to 128 events of motion detection.
  • High quality digital recording - no tapes!
  • Record all four channels in full screen all the time
  • USB output for easy storage and extraction of images
  • Supplied with BNC Monitor Cable - 1 Mtr
  • Picture in Picture view
  • Sequence view
  • 12vdc 500ma power per channel for cameras ( was 350ma )
  • PC back up Compatible
    with XP and VISTA
  • Easy quick back up to USB stick
  • Individual channel settings for precise set up
  • Remote control included
  • Built in ‘on-screen’ motion detection
  • Up to 3 months continuous recording
  • Ultra quiet fan
  • Video Loss Buzzer, can be set to On or Off
  • Password Protection.
  • USB2.0 Support.
  • Alarms when HDD is full : Displayed by OSD.
  • Supplied c/w
    USB Cable
    Software CD
    Power Cord
    AC-DC Power Converter
    All cables supplied for simple to connection to all TS WIT kits


Installation & Operating Instructions
  Order Code Description Price (ex VAT) Price (inc VAT) Quantity

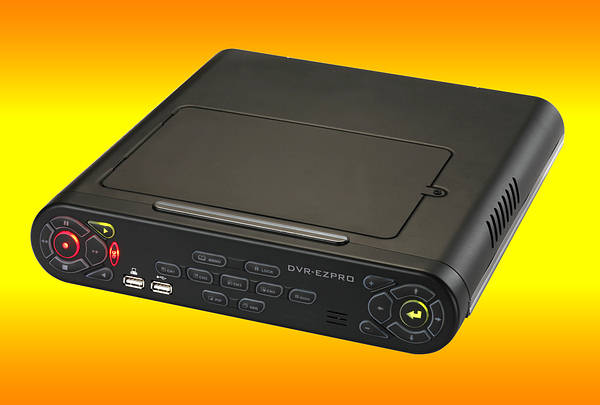

product photo TS DVREZPRO 4 Channel Digital Video Recorder - 160GB
