420TVL 3.6mm Lens Eyeball Dome Camera Grey 20m IR - Discontinued

Please try BNC CCTV Dome Cameras for alternative products.

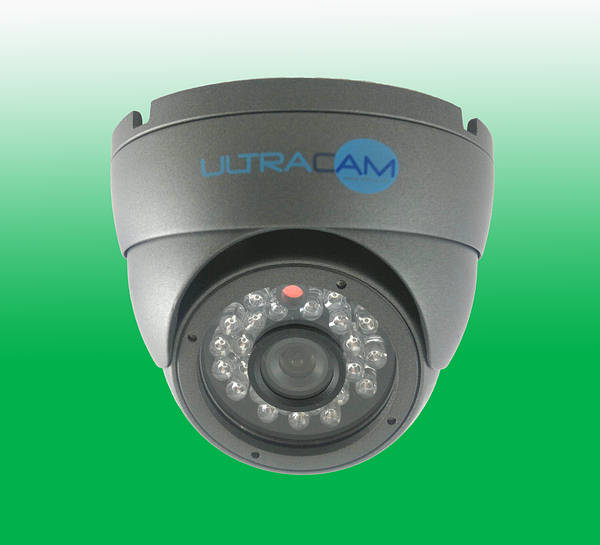

420TVL 3.6mm Lens Eyeball Dome Camera Grey 20m IRED42FG

Dia: 95mm
Height: 85mm
Ultracam
420 TVL Day/Night (20M IR)
"Eyeball" Dome (Fixed 3.6mm)
Grey
Vibrant colour during daylight hours
and crisp mono with infra red illumination at night.
  • External or internal use day/night camera.
  • Vandal resistant metal casing.
  • Horizontal resolution of 420 TVL.
  • High quality Sony Super HAD II 1/3" colour CCD (ICX633BKA).
  • High quality Sony IC (CXA3796N).
  • High quality Sony DSP (CXD3142R).
  • Fixed focus 3.6mm F2.0 lens.
  • Colour images in normal light, B&W images with I/R active.
  • 24 x size 5 IR LED's (maximum 20M range illumination).
  • Dual glass, hoop/ring design (prevents IR glare).
  • 3 axis design (ceiling and wall mountable).
  • Easy to install "screw on" base.
  • 12vDC 350mA power consumption.
  • Supplied with a 2.1mm power connector
  • Image sensor: -Sony Super HAD II 1/3" colour CCD
  • Image DSP: - Sony IC/DSP (CXA3796N/CXD3142R)
  • Horizontal resolution: - 420 TVL
  • Lens: - 3.6mm F2.0
  • Minimum illumination: - 0 lux with IR’
  • No. of IR LED's: - 24
  • IR coverage: - Maximum of 20M
  • Pixels: - Effective 537(H) x 582(V)
  • Video output: - 1.0v p-p / 75 Ohm
  • Voltage: - 12v DC (350mA)
  • White balance: - Auto
  • S/N ratio: - > 48dB
  • Sync system: - Internal
  • Gamma: - > 0.45
  • Electronic shutter: -1/50 - 1/100,000 sec

Order Code
Description
Price (ex VAT)
Price (inc VAT)
Quantity
product photo

TS ED42FG

420TVL 3.6mm Lens Eyeball Dome Camera Grey 20m IR

EA

£30.00

EA

£36.00

Discontinued
