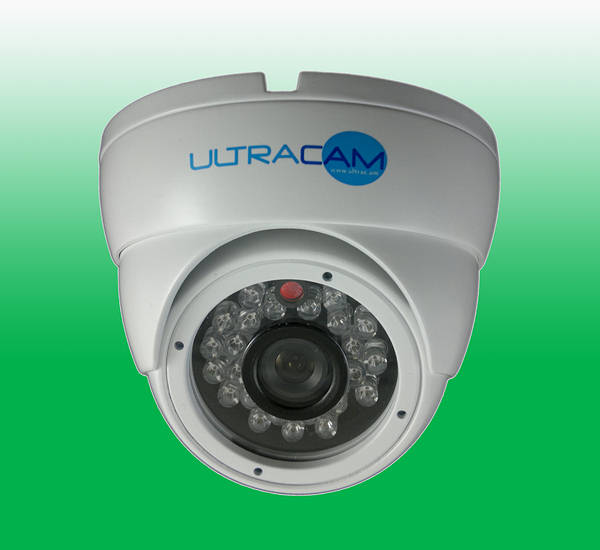

420TVL 3.6mm Lens Eyeball Dome Camera White 20m IR
Product Code: TS ED42FW
0
ED42FW
Loading …
Dia: 95mm
Height: 85mm
Height: 85mm
Ultracam
420 TVL Day/Night (20M IR)
"Eyeball" Dome (Fixed 3.6mm)
White
420 TVL Day/Night (20M IR)
"Eyeball" Dome (Fixed 3.6mm)
White
and crisp mono with infra red illumination at night.
- External or internal use day/night camera.
- Vandal resistant metal casing.
- Horizontal resolution of 420 TVL.
- High quality Sony Super HAD II 1/3" colour CCD (ICX633BKA).
- High quality Sony IC (CXA3796N).
- High quality Sony DSP (CXD3142R).
- Fixed focus 3.6mm F2.0 lens.
- Colour images in normal light, B&W images with I/R active.
- 24 x size 5 IR LED's (maximum 20M range illumination).
- Dual glass, hoop/ring design (prevents IR glare).
- 3 axis design (ceiling and wall mountable).
- Easy to install "screw on" base.
- 12vDC 350mA power consumption.
- Supplied with a 2.1mm power connector
- Image sensor: -Sony Super HAD II 1/3" colour CCD
- Image DSP: - Sony IC/DSP (CXA3796N/CXD3142R)
- Horizontal resolution: - 420 TVL
- Lens: - 3.6mm F2.0
- Minimum illumination: - 0 lux with IR’
- No. of IR LED's: - 24
- IR coverage: - Maximum of 20M
- Pixels: - Effective 537(H) x 582(V)
- Video output: - 1.0v p-p / 75 Ohm
- Voltage: - 12v DC (350mA)
- White balance: - Auto
- S/N ratio: - > 48dB
- Sync system: - Internal
- Gamma: - > 0.45
- Electronic shutter: -1/50 - 1/100,000 sec
Dia: 95mm
Height: 85mm
Height: 85mm
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
TS ED42FW
420TVL 3.6mm Lens Eyeball Dome Camera White 20m IR |
