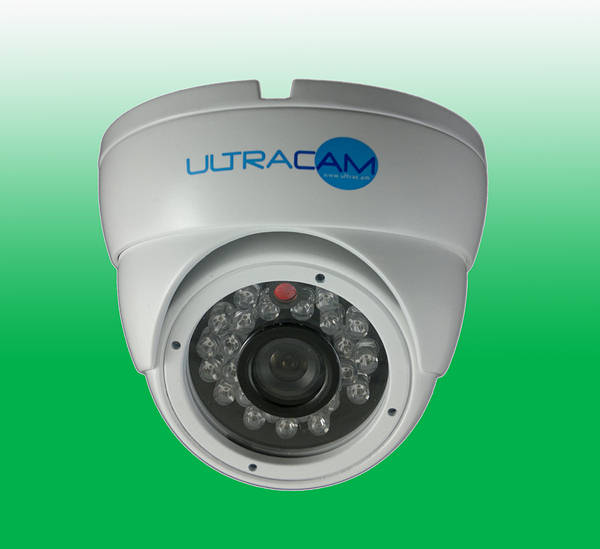

1/3" Sony 700TVL IP65 20M IR V/R Eyeball Dome Camera c/w 3.6mm Lens0ED70FW
Loading …
Dia: 95mm
Height: 85mm
Height: 85mm
Ultracam
700 TVL Day/Night (20M IR)
"Eyeball" Dome (Fixed 3.6mm)
White
700 TVL Day/Night (20M IR)
"Eyeball" Dome (Fixed 3.6mm)
White
and crisp mono with infra red illumination at night.
- External or internal use day/night camera.
- OSD menu controlled by cable button.
- Vandal resistant metal casing.
- Horizontal resolution of 700 TVL.
- High quality Sony EXview HAD II 1/3" colour CCD (ICX673AKA).
- High quality Sony Sony AFE (CXD5148GG).
- High quality Sony “Enhanced” Effio-E DSP (CXD4140GG).
- Fixed focus 3.6mm F2.0 lens.
- Colour images in normal light, B&W images with I/R active.
- 24 x size 5 IR LED's (maximum 20M range illumination).
- Dual glass, hoop/ring design (prevents IR glare).
- 3 axis design (ceiling and wall mountable).
- Easy to install "screw on" base.
- 12vDC 350mA power consumption.
- Supplied with a 2.1mm power connector
- Image sensor: -1/3’’ Sony EXview HAD II CCD
- Image DSP: - Sony “Enhanced” Effio-E AFE/DSP
- Horizontal resolution: - 700 TVL
- OSD: - controlled by cable button
- Lens: - 3.6mm F2.0
- Minimum illumination: - 0 lux with IR’
- No. of IR LED's: - 24
- IR coverage: - Maximum of 20M
- Pixels: - Effective 752(H) x 582(V)
- Video output: - 1.0v p-p / 75 Ohm
- Voltage: - 12v DC (350mA)
- White balance: - Auto
- S/N ratio: - > 48dB
- Gamma: - > 0.45
- Electronic shutter: -1/50 - 1/100,000 sec
| Order Code | Description | Price (ex VAT) | Price (inc VAT) | Quantity | |
|---|---|---|---|---|---|
|
TS ED70FW | 1/3" Sony 700TVL IP65 20M IR V/R Eyeball Dome Camera c/w 3.6mm Lens |
Accessories
| Order Code | Description | Price (ex VAT) | Price (inc VAT) | Quantity | |||||
|---|---|---|---|---|---|---|---|---|---|
 |
TS PSUP | 12v DC 1 Amp Plug In Power Supply c/w 1M lead |
|
|
