1080P HD 6-22mm Bullet Camera c/w 50m IR LED
Product Code: TS FHDVC622VFB
5060224106563
FHDVC622VFB
Loading …
Dimension
260(L) x 136(H) x 115(D)mm
Requires Power Supply
ES PSIL - at camera
or connected with shotgun cable when powered from DVR
260(L) x 136(H) x 115(D)mm
ES PSIL - at camera
or connected with shotgun cable when powered from DVR

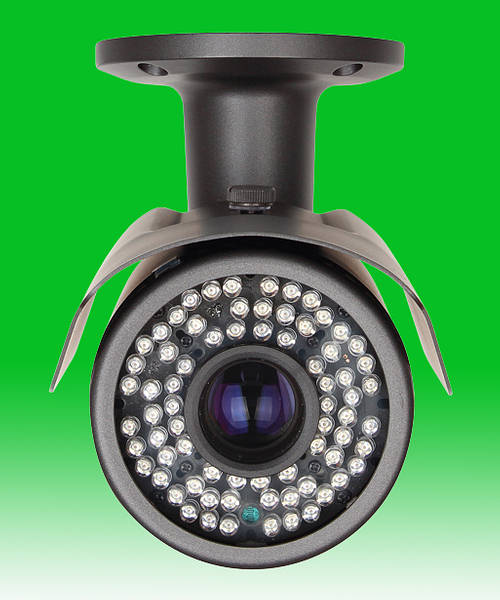

Full 2MP 1080P Bullet CCTV Camera - Black
6mm - 22mm Lens - 50Mtr IR
6mm - 22mm Lens - 50Mtr IR
all feature the multi-function on screen display (OSD) settings.
Camera Housing IP Rating IP66
Whilst in many situations you will find an ‘out of the box installation’ will give excellent results
the OSD settings will enable you to make adjustments to the cameras final output to
provide an excellent image in the most demanding situations.
Please read through this manual prior to
installation in order to better understand all the functionality of the product.
This model features manual adjustment of zoom and focus.
The adjustments are located on the underneath of the camera.
- Pick up Element 1/2.7"
- Eective Pixels (H×V) NTSC/ PAL:1920(H)x1080V)
- Horizontal Resolution 1080P
- Minimum Illumination 0.1 Lux/F2.0
- 0 Lux (with IR LED ON)
- S/N Ratio More than 58dB
- Scanning System Progressive
- Synchronous System Internal, Negative sync.
- Auto Electronic Shutter NTSC: 1/60s~1/100,000s,
- PAL: 1/50s~1/100,000s
- Gamma Characteristic 0.45
- IR Distance 35 Meters
- IR Status Under 10 Lux by CDS
- IR Power On CDS AUTO Control/ICR
- Video Output 1Vpp, 75?
- Auto Gain Control Auto
- Power/Current DC12V(+/-10%)/560mA
- Lens 6-22mm Adjustable Lens
- Dimension 260(W) x 136(H) x 115(D) mm
- Weight 1200g
- Storage Temperature -30~+60 °C RH95% MAX
- Operating Temperature -10~+50 °C RH95% MAX
Dimension
260(L) x 136(H) x 115(D)mm
Requires Power Supply
ES PSIL - at camera
or connected with shotgun cable when powered from DVR
260(L) x 136(H) x 115(D)mm
ES PSIL - at camera
or connected with shotgun cable when powered from DVR
Technical:FHDVC622VFB Inst 1.8Mb pdf |
|
