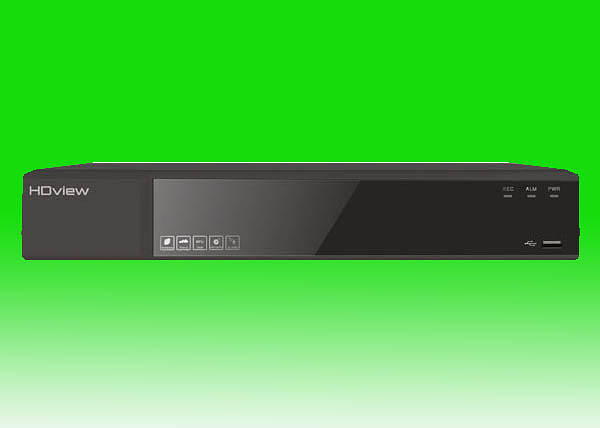

16 Channel Full SHD CCTV DVR - 2TB50602241096419SHDV16R2TB
Loading …
326(W) x 243(D) x 52(H) mm
HDView
16 Channel Full SHD CCTV DVR - 2TB
16 Channel Full SHD CCTV DVR - 2TB
Hard drive 2TB,
16 Channel System (Supports up to 16 cameras)
4 Megapixel live view and recording
Recording options – Continuous / Scheduled / Motion
Remote view via ESP HDview APP for smartphones
USB back up of recordings for easy evidence transfer
Video outputs HDMI / VGA for connection to a monitor
Renowned Western Digital Surveillance Hard Drive pre-installed
Programmable Spot Output
CMS software included for remote viewing via a PC
Remote monitoring via wired connection or Wi-Fi (requires DVRWLA
Mouse driven comprehensive user interface
RS485 control for PTZ cameras
Programmable alarm inputs & outputs
Audio inputs & outputs
Silent DVR operation
16 Channel System (Supports up to 16 cameras)
4 Megapixel live view and recording
Recording options – Continuous / Scheduled / Motion
Remote view via ESP HDview APP for smartphones
USB back up of recordings for easy evidence transfer
Video outputs HDMI / VGA for connection to a monitor
Renowned Western Digital Surveillance Hard Drive pre-installed
Programmable Spot Output
CMS software included for remote viewing via a PC
Remote monitoring via wired connection or Wi-Fi (requires DVRWLA
Mouse driven comprehensive user interface
RS485 control for PTZ cameras
Programmable alarm inputs & outputs
Audio inputs & outputs
Silent DVR operation
- Main Processor Embedded Processor
- Operating System Embedded LINUX
- Video & Audio
- Video Input 16 channel BNC
- Audio Input 4 channel RCA
- Audio Output 1 channel RCA
- Display
Video Output 1 x HDMI, 1 x VGA, 1 x Auxiliary - Display Split 1, 4, 6, 9,16 and 20
- Resolution 1024×768, 1280×720, 1280×1024, 1440×900,
- 1920×1080, 2560x1440
- Recording
Video/Audio Compression H.264 Main profile/G.711A - Resolution 4 Megapixel
- Record Rate (Main Stream) 16ch 4MP recording
- Recording Mode Manual/Motion Detection/Schedule
-
Playback & Backup
Sync Playback 16ch 4MP recording - Backup Mode Network/USB2.0 devices
- Network
Ethernet RJ45 10M/100M - Network Functions HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP,
- SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP
- Network Monitoring Web browsers, CMS, Android & IOS APP
- Storage
Internal HDD 2 SATA HDD, 2TB HDD - Auxiliary Interface
- Alarm Input 4 Channel
- Alarm Output 1 Channel
- PTZ Control RS485 with multi-protocol
- USB Interface 2
- General
Power Supply DC12V/5A - Power Consumption <15W (without hard disk)
- Operation Condition –10ºC – +55ºC / 10% – 90%
Technical:TSSHDV16 Data 200Kb pdf TSSHDV16 Instructions 4.0Mb pdf |
| Order Code | Description | Price (ex VAT) | Price (inc VAT) | Quantity | |||||
|---|---|---|---|---|---|---|---|---|---|
|
TS SHDV16R2TB | 16 Channel Full SHD CCTV DVR - 2TB |
|
|
Accessories
| Order Code | Description | Price (ex VAT) | Price (inc VAT) | Quantity | |||||
|---|---|---|---|---|---|---|---|---|---|
 |
TS MON284K | 28 Inch 4k LED CCTV Monitor |
|
|
|||||
 |
TS DVRWLA | WiFi Module for TSDGV / TSHDV / TSFHDV |
|
|
