Dimensions
250(W)x230(D)x45(H)mm
HD View

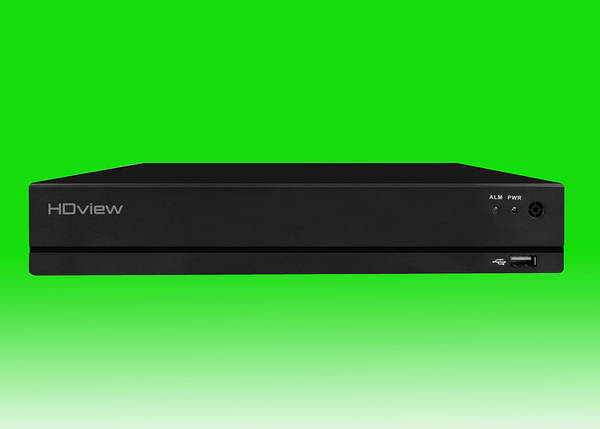

8 Channel Full SHD CCTV DVR - 1TB
Hard drive: SHDV8R - 1TB
8 Channel System (Supports up to 8 cameras)
4 Megapixel live view and recording
Recording options – Continuous / Scheduled / Motion
Remote view via ESP HDview APP for smartphones
USB back up of recordings for easy evidence transfer
Video outputs HDMI / VGA for connection to a monitor
Renowned Western Digital Surveillance Hard Drive pre-installed
Programmable Spot Output
CMS software included for remote viewing via a pc
Remote monitoring via wired connection or Wi-Fi (requires DVRWLA)
Mouse driven comprehensive user interface
RS485 control for PTZ cameras
Silent DVR operation
  • System
    Main Processor Embedded Processor
  • Operating System - Embedded LINUX
  • Video & Audio
    Video Input - 8 channel BNC
  • Audio Input - 4 channel RCA
  • Audio Output - 1 channel RCA
  • Display
    Video Output - 1 x HDMI, 1 x VGA, 1 x Auxiliary
  • Display Split - 1, 4 and 10
  • Resolution - 1024×768, 1280×720, 1280×1024, 1440×900, 1920×1080, 2560x1440
  • Recording
    Video/Audio Compression - H.264 Main profile/G.711A
  • Resolution - 4 Megapixel
  • Record Rate (Main Stream) - 8ch 4MP recording
  • Recording Mode - Manual/Motion Detection/Schedule
  • Playback & Backup
    Sync Playback - 8ch 4MP recording
  • Backup Mode - Network/USB2.0 devices
  • Network
    Ethernet - RJ45 10M/100M
  • Network Functions - HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP
  • Network Monitoring - Web browsers, CMS, Android & iPhone apps
  • Storage
    Internal HDD - 1 SATA HDD, up to 4TB per HDD
  • Auxiliary Interface
    PTZ Control - RS485 with multi-protocol
  • USB Interface - 2
  • General
    Power Supply - DC12V/2A
  • Power Consumption - <10W (without hard disk)
  • Operation Condition - 0ºC – +55ºC / 10% – 90%

Technical:
