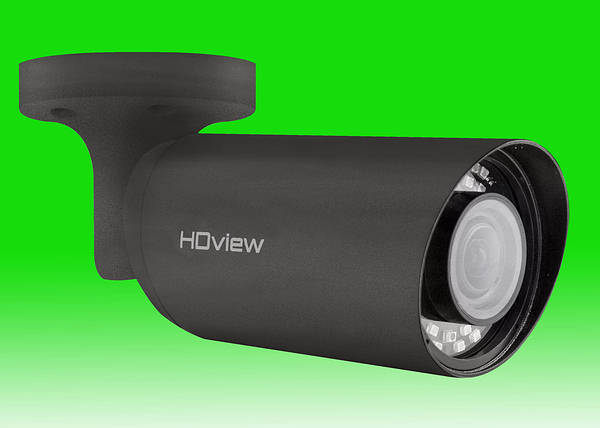

2.8-12mm Super HD Bullet Camera Grey c/w 30m IR LED --- Price Drop ---
Product Code: TS SHDVC2812VFBG
5060224108284
SHDVC2812VFBG
Loading …
Width: 267mm.
Height: 85mm.
Depth: 95mm.
Weight 720g.
2.8-12mm SHD
Bullet Camera - Grey
c/w 30m IR LED
Bullet Camera - Grey
c/w 30m IR LED
In addition to the 4MP resolution the Hdview range of CCTV cameras all feature
the multi-function on screen display (OSD) settings, these are accessible from the DVR.
Camera Housing IP Rating IP66.
Whilst in many situations you will find an ‘out of the box installation’ will give
excellent results the OSD settings will enable you to make adjustments to the
cameras final output to provide an excellent image in the most demanding situations.
Please read through this manual prior to installation in
order to better understand all the functionality of the product.
*For compatibility with other systems, check that an AHD video signal and 4MP resolution is supported. Please contact the ESP technical team for further information on 01527 515150.
the multi-function on screen display (OSD) settings, these are accessible from the DVR.
Camera Housing IP Rating IP66.
Whilst in many situations you will find an ‘out of the box installation’ will give
excellent results the OSD settings will enable you to make adjustments to the
cameras final output to provide an excellent image in the most demanding situations.
Please read through this manual prior to installation in
order to better understand all the functionality of the product.
*For compatibility with other systems, check that an AHD video signal and 4MP resolution is supported. Please contact the ESP technical team for further information on 01527 515150.
- Lens Type 2.8-12 mm Adjustable Lens
- Angle of View Horizontal: 98°~ 34°
- Pick up Element 1/3.
- Video Output 4MP AHD.
- Effective Pixels (H×V) NTSC/ PAL: 2560 (H) × 1440 (V).
- 14µX30pcs SMD LED.
- IR Distance 30 Meters.
- Minimum Illumination 0.01Lux.
- S/N Ratio More than 50dB.
- Scanning System Progressive.
- Auto Electronic Shutter NTSC: 1/60s~1/100,000s.
- PAL: 1/50s~1/100,000s.
- Gamma Characteristic 0.45.
- Auto Gain Control Auto.
- Power/Current DC12V(+/-10%)/400mA.
- Operating Temperature -20~+50°C RH95% MAX.
- The varifocal models feature manual adjustment of zoom and focus.
- The adjustments are located on the underneath of the camera.
Width: 267mm.
Height: 85mm.
Depth: 95mm.
Weight 720g.
Technical:TSSHDVC2812VFB Instructions 3.2Mb pdfWarranty:ESP |
|
