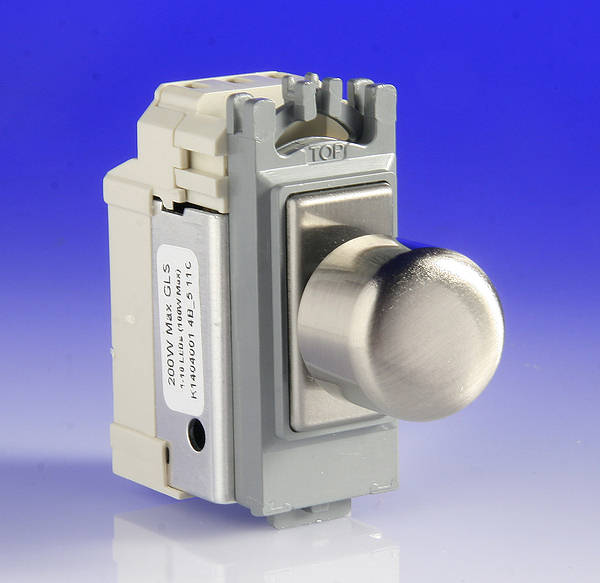

200w V-PRO Silent Trailing Edge & 100w LED PowerGrid Dimmer - Brush Steel
Product Code: VL GJP400S
5021575968729
GJP100S
Loading …
V-PRO Dimmer Range
35mm deep boxes recommended
to aid heat dissipation.
Min Load: 4 watts LEDlite GU10 LED's
Min Load: 10 watts LED
Max Load: 100 watts LED
Other
Max Load: - 200 watts
Max Halogen Load: - 150 watts
35mm deep boxes recommended
to aid heat dissipation.
Min Load: 4 watts LEDlite GU10 LED's
Min Load: 10 watts LED
Max Load: 100 watts LED
Other
Max Load: - 200 watts
Max Halogen Load: - 150 watts
Varilight
200w 2 Way Silent Trailing Edge & LED Grid Dimmer
for use with Varilight PowerGrid
200w 2 Way Silent Trailing Edge & LED Grid Dimmer
for use with Varilight PowerGrid
Our most versatile dimmer switch.
High quality UK design and manufacture.
Trailing edge for smooth, totally silent dimming.
Intelligent detection of the lamp type for adaptive control of most loads.
Overload protection. Superb performance with most dimmable LED lamps.
Soft start and gentle waveform to considerably extend lamp life
- Soft start to extend lamp life Saves energy
- Steps down output under partial overload,
- Switches off under gross overload, protecting components and extending product life.
- Normal operation resumes once load is corrected.
- iQ intelligent control of awkward loads
- Push-on / Push-off 2 Way switching
- Specifically for use on the primary circuit of low voltage lighting transformers.
- Any combination of transformers up to the maximum rating may be connected
- Automatic self-resetting overload protection
- Automatic self-resetting thermal protection
- How to Program Varilight V-Pro Dimmers
- Suitable for
- Incandescent GLS Lamps
- Candle, Golf Ball etc
- 12V Dichroic lamps (best with Telco premium low voltage transformers)
- Mains Halogen (GU10 Etc)
- Varilight Dimmable CFL
- Leading Edge Dimming Loads
- Trailing Edge Dimming Loads
- Other Dimmable CFL (subject to manufacturers Guidelines)
- Dimmable Mains LED
- Very low wattage loads
- Not Suitable for
- Dimmable Ballast
- Fluorescent Tubes
- Wire Wound Low Voltage (or other inductive Load)
V-PRO Dimmer Range
35mm deep boxes recommended
to aid heat dissipation.
Min Load: 4 watts LEDlite GU10 LED's
Min Load: 10 watts LED
Max Load: 100 watts LED
Other
Max Load: - 200 watts
Max Halogen Load: - 150 watts
35mm deep boxes recommended
to aid heat dissipation.
Min Load: 4 watts LEDlite GU10 LED's
Min Load: 10 watts LED
Max Load: 100 watts LED
Other
Max Load: - 200 watts
Max Halogen Load: - 150 watts
Technical:Dimmer Selection Guide .PDF (200kb) Dimmer Instructions - pdf 63kb FAQ - Trouble Shooting |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
VL GJP400S
200w V-PRO Silent Trailing Edge & 100w LED PowerGrid Dimmer - Brush Steel |
