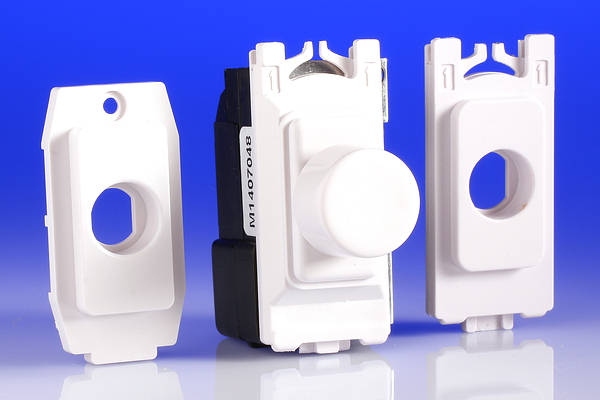

Name: 60w-400w V-DIM Multi Grid Dimmer - White
Brand: Varilight
SKU: VLGP400WMG
Price: 12.66 GBP
Availability: InStock

60w-400w V-DIM Multi Grid Dimmer - White

Product Code: VL GP400WMG

5021575969139

GP400W.MG

Loading …

V-DIM Dimmer Range

35mm deep boxes recommended
to aid heat dissipation.

EACH	3+
£10.55	£10.05

EACH	3+
£12.66	£12.06

Quantity

Description

400w 2 way Grid Dimmer - White

for use with MK, Schneider Ultimate, Schneider Lisse, Crabtree, Hager, Deta, BG & Varilight PowerGrid.

This dimmer is protected against overload.
If an overload occurs it will automatically switch off the
lights and slowly turn them on and off until the
overload is removed and the dimmer has returned to
its usual operating temperature.

SUITABLE FOR
Mains voltage Halogen, GLS or candle bulbs
Good quality dimmable electronic low voltage transformers
NOT SUITABLE FOR
Fluorescent bulbs and tubes
Wire-wound or toroidal transformers
Electric motors
Dimmable LED Lighting for dimmable LED Lighting select a dimmer from the V-PRO series

Max Lamp Loads per Grid Faceplate
1 Gang Plate: - Mains 400w - Low volt 200w
2 Gang Plate: - Mains 800w - Low volt 400w
3 Gang Plate: - Mains 1200w - Low volt 600w (max 2 dimmers)
4 Gang Plate: - Mains 1200w - Low volt 600w (max 2 dimmers)
6 Gang Plate: - Mains 1800w - Low volt 900w (max 3 dimmers)
8 Gang Plate: - Mains 1800w - Low volt 900w (max 4 dimmers)
9 Gang Plate: - Mains 2400w - Low volt 1200w (max 4 dimmers)
12 Gang Plate: - Mains 2400w - Low volt 1200w (max 4 dimmers)

V-DIM Dimmer Range

35mm deep boxes recommended
to aid heat dissipation.

Technical

Technical:

Dimmer Selection Guide - pdf 180k MultiGrid Adaptors - pdf 180k Grid Instructions - pdf 180k V-PLUS Instructions - pdf 180k VLGP400WMG Datasheet
