2 Gang 200w 2 Way V-PRO Master Remote Touch Dimmer - Brushed S/Steel5021575161991ijDSI102S

Loading …

WARNING: Do not apply products with metal faceplates directly to freshly plastered or damp surfaces as product may tarnish. If in doubt, use polythene as a temporary gasket to protect the product. Do not use masking tape on this product.

Description

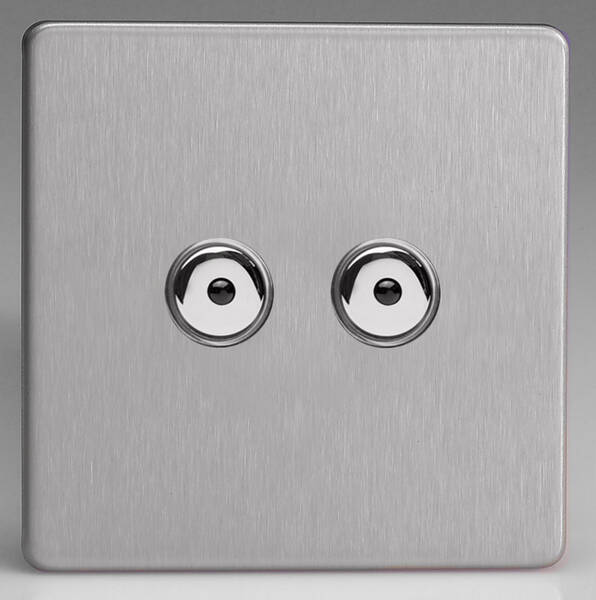

Varilight V-Pro IR
2 x 200w 2 Way Master Remote Touch Dimmer Switch Switch
Brushed Stainless Steel

The V-Pro™ dimmer range features intelligent overload protection, short circuit protection and,
most importantly, an adjustable minimum brightness and a choice of dimming modes
so that it can be used with lamps which require leading or trailing edge dimming.
This makes the dimmer extremely versatile because it is equipped to deliver
the best possible dimming performance from a given lighting load.

V-Pro™ dimmers are suitable for 0 - 100W of LED lighting (1 - 10 LEDs), Varilight DigiFlux dimmable CFLs,
electronic low voltage transformers, mains halogen and traditional mains GLS lighting.
The dimmers also feature soft start to improve lamp life and totally silent operation.

You can dim the lights using touch control or by a remote control handset.
The V-Pro IR master dimmer switches are one way
but can be used in conjunction with V-Pro IR slave units
in a multi-way circuit (including intermediate and 2 way)
so that the lights can be dimmed from more than one location.

In this type of circuit you should use one V-Pro IR master dimmer and any number of V-Pro IR slave units
with three wires directly connecting each switch (as is usual in a 2 way circuit).

The low-priced V-Pro IR slave units are not dimmer switches
and cannot be used on their own without a master dimmer.

2 Gang Dimmer Load
Dimmable LEDs
Min Load: 0W
Max Load: 100W (or 1 - 10 LEDs)
Incandescent Lamps
Min Load: 10W
Max Load: 200W
Halogen Lamps
Min Load: 10W
Max Load: 150W

Full functionality can be achieved by choosing the Varilight® LightScene™ remote control handset, including a master control function which will switch several dimmers on and off simultaneously, and enabling the user to record up to 4 lighting "scenes" and recall them or the previous light settings at the touch of a button.
V-Pro IR dimmers are capable of learning to respond to a spare button on many existing infra-red remote control handsets.

Technical

Technical:

Dimmer Selection Guide .PDF (200kb) Dimmer Instructions - pdf 63kb FAQ - Trouble Shooting

Order Code Description Price (ex VAT) Price (inc VAT) Quantity

VL IJDSI102S

2 Gang 200w 2 Way V-PRO Master Remote Touch Dimmer - Brushed S/Steel

EACH	3+
£37.40	£34.25

EACH	3+
£44.88	£41.10

Accessories, Boxes and Grommets

Order Code Description Price (ex VAT) Price (inc VAT) Quantity

VL IJDSS001S

1 Gang Slave V-PRO Remote Control/Touch Dimmer - Brushed Stainless Steel

EACH	3+
£16.55	£15.15

EACH	3+
£19.86	£18.18

VL IJDSS002S

2 Gang Slave V-PRO Remote Control/Touch Dimmer - Brushed Stainless Steel

EACH	3+
£29.50	£27.30

EACH	3+
£35.40	£32.76

VL YRC8

Optional 8 Button Remote Control

EACH	3+
£5.15	£4.85

EACH	3+
£6.18	£5.82

VL YRE8

Varilight LightScene™ Remote Control

EACH
£16.05

EACH
£19.26

WD 328PW

DeWalt Wall-Dog 32mm x 8mm Pan Head - White

per 100	per 100 500+
£6.90	£6.65

per 100	per 100 500+
£8.28	£7.98

WD 328PC

DeWalt Wall-Dog 32mm x 8mm Pan Head - Chrome

per 100	per 100 500+
£6.90	£6.65

per 100	per 100 500+
£8.28	£7.98

AP 655

1 Gang 25mm KO Flush Box

EACH	10+
£0.43	£0.38

EACH	10+
£0.52	£0.46

AP 615

1 Gang 35mm KO Flush Box

EACH	10+
£0.50	£0.45

EACH	10+
£0.60	£0.54

GR 20

20mm Open Grommets

EACH	100+
£0.07	£0.04

EACH	100+
£0.09	£0.04

MT MDLB1

1 Gang 35mm Dry Lining / Plasterboard Box

EACH	10+
£0.60	£0.48

EACH	10+
£0.72	£0.58

FB 4135

1 Gang 35mm Fire & Acoustic Metal Dry Lining Plasterboard Box

EACH	10+
£2.35	£2.05

EACH	10+
£2.82	£2.46
