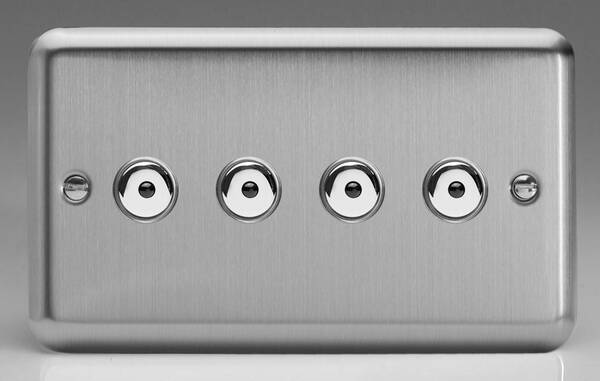

Varilight V-Pro IR
4 x 200w 2 Way Master Remote Touch Dimmer Switch Switch
The V-Pro dimmer range features intelligent overload protection, short circuit protection and,
most importantly, an adjustable minimum brightness and a choice of dimming modes
so that it can be used with lamps which require leading or trailing edge dimming.
This makes the dimmer extremely versatile because it is equipped to deliver
the best possible dimming performance from a given lighting load.
V-Pro dimmers are suitable for 0 - 100W of LED lighting (1 - 10 LEDs), Varilight DigiFlux dimmable CFLs,
electronic low voltage transformers, mains halogen and traditional mains GLS lighting.
The dimmers also feature soft start to improve lamp life and totally silent operation.
You can dim the lights using touch control or by a remote control handset.
The V-Pro IR master dimmer switches are one way
but can be used in conjunction with V-Pro IR slave units
in a multi-way circuit (including intermediate and 2 way)
so that the lights can be dimmed from more than one location.
In this type of circuit you should use one V-Pro IR master dimmer and any number of V-Pro IR slave units
with three wires directly connecting each switch (as is usual in a 2 way circuit).
The low-priced V-Pro IR slave units are not dimmer switches
and cannot be used on their own without a master dimmer.
4 Gang Dimmer Load
- Dimmable LEDs
Min Load: 0W
Max Load: 100W (or 1 - 10 LEDs)
- Incandescent Lamps
Min Load: 10W
Max Load: 200W
- Halogen Lamps
Min Load: 10W
Max Load: 150W
Full functionality can be achieved by choosing the Varilight® LightScene remote control handset, including a master control function which will switch several dimmers on and off simultaneously, and enabling the user to record up to 4 lighting "scenes" and recall them or the previous light settings at the touch of a button.
- V-Pro IR dimmers are capable of learning to respond to a spare button on many existing infra-red remote control handsets.
