4 Gang 100W V-PRO Multi-Point Remote Touch LED Dimmer - Screwless Br Bronze
Product Code: VL JDYE104SBZ
5021575193275
JDYE104S.BZ
Loading …
1 way or multi-way when used with Eclique2 dimming slave unit(s)
Screwless Brushed Bronze

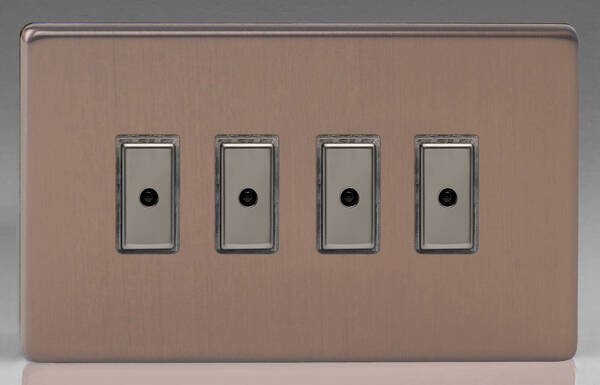

4 Gang 100w V-PRO Multi-Point Master Remote Touch LED Dimmer
4 Gang 100w V-PRO Multi-Point Master Remote Touch LED Dimmer
V-PRO Multipoint - (Formally known as Eclique2)
Tactile Touch and remote controlled dimmers, which are suitable for 0 - 100W of dimmable LED lighting (1 - 10 LEDs).
You can dim the lights using touch control or using a remote control handset (sold separately).
To access the scene-setting features of these dimmers choose the LightScene handset (YRE8).
Not suitable for LEDs requiring triac dimming control.
The new rectangular rocker touch pad allows you to have more control over the dimming cycle, while having a classic light switch design. Pressing anywhere on the touch pad will turn on/off, and pressing and holding the top will dim up and the bottom will dim down
V-Pro dimmers are programmable to offer a choice of dimming modes.
In addition, users can set the minimum load level for the dimmer
to optimise the dimming range of a particular lighting load.
Tactile Touch and remote controlled dimmers, which are suitable for 0 - 100W of dimmable LED lighting (1 - 10 LEDs).
You can dim the lights using touch control or using a remote control handset (sold separately).
To access the scene-setting features of these dimmers choose the LightScene handset (YRE8).
Not suitable for LEDs requiring triac dimming control.
The new rectangular rocker touch pad allows you to have more control over the dimming cycle, while having a classic light switch design. Pressing anywhere on the touch pad will turn on/off, and pressing and holding the top will dim up and the bottom will dim down
V-Pro dimmers are programmable to offer a choice of dimming modes.
In addition, users can set the minimum load level for the dimmer
to optimise the dimming range of a particular lighting load.
- Trailing edge for smooth, totally silent dimming.
- V-Pro intelligent dimming technology
- Tactile touch control or remote control from dedicated handset or spare button on an existing handset (e.g. TV remote)
- Soft start feature and intelligent overload protection
- 1-way or multi-way when used with Multi-Point dimming slave unit(s)
- Up to 100 Watts (1-10 LEDs) per gang
- Up to 250 Watts halogen per gang
- Choice of 3 driving modes to ensure the widest compatibility with LED lamps.
- Adjustable minimum and maximum load level for the dimmer to optimise the dimming range of a particular lighting load
- Child Lock feature which can be turned on once the dimmer is set up to avoid reprogramming inadvertently
- Short circuit protection and overload protection.
- Remote control sold separately
1 way or multi-way when used with Eclique2 dimming slave unit(s)
Technical:Dimmer Selection Guide - pdf 180k V-PRO Multi Instructions - pdf 180k VLJDYE104SBZ Datasheet |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
VL JDYE104SBZ
4 Gang 100W V-PRO Multi-Point Remote Touch LED Dimmer - Screwless Br Bronze |
