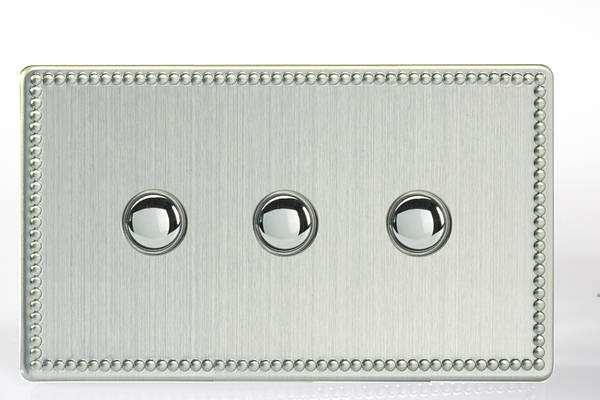

3 Gang 300W 2 Way eclique™ Master Remote Touch Dimmer - Jubilee Steel
Product Code: VL JDYI303SJS
5021575196436
JDYI303S.JS
Loading …
With the prospect of householders increasingly replacing traditional lamps with energy-efficient alternatives, and LEDs in particular, installations can effectively be made "LED-ready".
Even if LEDs are not part of an existing lighting scheme, by choosing to install Varilight's V-Pro™ dimmers, an end-user can decide to switch to dimmable LEDs from an established brand at a future date without the need to upgrade their dimmers.
Adjustable minimum brightness setting for optimal performance
> Choice of driving modes for maximum compatibility with many types of lighting
Incandescent
Mains halogen
Eco halogen
Electronic transformers
Dimmable CFLs
Dimmable LEDs
Even if LEDs are not part of an existing lighting scheme, by choosing to install Varilight's V-Pro™ dimmers, an end-user can decide to switch to dimmable LEDs from an established brand at a future date without the need to upgrade their dimmers.
Adjustable minimum brightness setting for optimal performance
> Choice of driving modes for maximum compatibility with many types of lighting
Incandescent
Mains halogen
Eco halogen
Electronic transformers
Dimmable CFLs
Dimmable LEDs
Varilight eclique™
3 x 300w 2 Way Master Remote Touch Dimmer Switch
Jubilee Steel
3 x 300w 2 Way Master Remote Touch Dimmer Switch
Jubilee Steel
most importantly, an adjustable minimum brightness and a choice of dimming modes.
This makes the dimmer extremely versatile because it is equipped to deliver
the best possible dimming performance from a given lighting load.
V-Pro™ dimmers are suitable for controlling most dimmable LEDs, Varilight DigiFlux dimmable CFLs,
electronic low voltage transformers, mains halogen and traditional mains GLS lighting.
You can dim the lights using touch control or by a remote control handset.
The eclique™ master dimmer switches are one way
but can be used in conjunction with eclique™ slave units
in a multi-way circuit (including intermediate and 2 way)
so that the lights can be dimmed from more than one location.
In this type of circuit you should use one eclique™ master dimmer and any number of eclique™ slave units
with three wires directly connecting each switch (as is usual in a 2 way circuit).
The low-priced eclique™ slave units are not dimmer switches
and cannot be used on their own without a master dimmer.
- eclique is the stylish touch/remote-control addition to Varilight's V-Pro™ range of trailing-edge dimmers, featuring a blue LED-backlit metal touch button with tactile touch and infra-red remote control.
- Clever design allows the infra-red signal to be received via a clear ring that surrounds the touch button, which also provides for the attractive LED backlighting, adding to the elegance of the product.
- The gentle blue ring of light also serves to help to locate the dimmer
- Full functionality can be achieved by choosing the Varilight® eclique™ LightScene™ remote control handset, including a master control function which will switch several dimmers on and off simultaneously, and enabling the user to record up to 4 lighting "scenes" and recall them or the previous light settings at the touch of a button.
- eclique™ dimmers are capable of learning to respond to a spare button on many existing infra-red remote control handsets.
- Dimmable LEDs
Min Load: 4W
Max Load: 150W - Incandescent Lamps
Min Load: 10W
Max Load: 300W - Halogen Lamps
Min Load: 10W
Max Load: 250W
With the prospect of householders increasingly replacing traditional lamps with energy-efficient alternatives, and LEDs in particular, installations can effectively be made "LED-ready".
Even if LEDs are not part of an existing lighting scheme, by choosing to install Varilight's V-Pro™ dimmers, an end-user can decide to switch to dimmable LEDs from an established brand at a future date without the need to upgrade their dimmers.
Adjustable minimum brightness setting for optimal performance
> Choice of driving modes for maximum compatibility with many types of lighting
Incandescent
Mains halogen
Eco halogen
Electronic transformers
Dimmable CFLs
Dimmable LEDs
Even if LEDs are not part of an existing lighting scheme, by choosing to install Varilight's V-Pro™ dimmers, an end-user can decide to switch to dimmable LEDs from an established brand at a future date without the need to upgrade their dimmers.
Adjustable minimum brightness setting for optimal performance
> Choice of driving modes for maximum compatibility with many types of lighting
Incandescent
Mains halogen
Eco halogen
Electronic transformers
Dimmable CFLs
Dimmable LEDs
Technical:Dimmer Selection Guide .PDF (200kb) Eclique Instructions - pdf 90kb FAQ - Trouble Shooting |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
VL JDYI303SJS
3 Gang 300W 2 Way eclique™ Master Remote Touch Dimmer - Jubilee Steel |
