32 Amp Wiska 308 Junction Box 85 x 85 x 51mm - White IP66400768560611010060611

Loading …

Terminal Cable Capacity

5 x 1.5mm
3 x 2.5mm
2 x 4.0mm

Optional Magic Sealing Gel
The sealing technique ensures a high life expectancy even under permanent influence of moisture

IP 68 up to a water depth of 15 meters according to DIN EN 60529

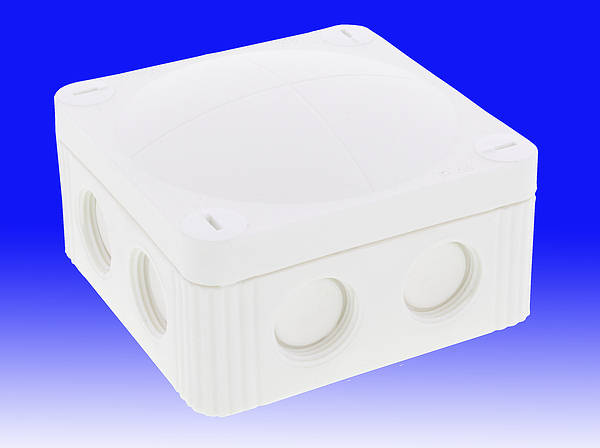

Wiska Box - IP66
85 x 85 x 51mm White
32 Amp
Cleverly designed
30% saving on labour. Cables quickly introduced without any kind of tool,
thanks to WISKA COMBI's openings with soft self-sealing diaphragm (WK108 up to WK607).

Cable glands can be screwed directly into the integrated thread in the WK308 and WK607,
no more need for lock nuts.

Little screws that can't be lost. The quick-release lid screws made of plastic will not rust and stay
securely in place just where they belong - in the WISKA COMBI Box.

Good to look at
The 'Designer Box'. The WISKA COMBI with its unmistakeable
'bellied' lid provides the utmost in visual and functional perfection.
Now you can install with system AND with style.
  • Waterproof junction box up to 4 mm2 (32A)
  • 85 x 85 x 51 mm
  • 8 elastic self-sealing cable-inlets (clamping range 3-12 mm)
  • Integrated M 20 threads, for cable glands no locknuts necessary
  • 4 quick-release lid screws in the cover
  • Fixing with the fast mounting clip or
    internally located openings out of the sealing area
  • includes 5-pole screw terminal 4 mm2 (patented)
  • 10% more room inside, thanks to the bellied cover
  • 30% saving on labour thanks to faster cable-entry
  • captive quick-release lid screws
  • Strong
    Stable, safe and secure. The WISKA COMBI with its high IP 66 Degree of Protection is weather-proof, impact-resistant and shatter-proof. Eminently suitable for extreme conditions or for outdoor installations.
  • All WISKA COMBI Boxes are flame-retardant, halogen free, and are highly resistant to animal or vegetable fats, mineral oil, diesel, weak acids, strong and weak alkaline solutions, or alcohol.


IP Rating Chart
Product Code
Price (ex VAT)
Price (inc VAT)
product photo
WK 308W

32 Amp Wiska 308 Junction Box 85 x 85 x 51mm - White IP66
