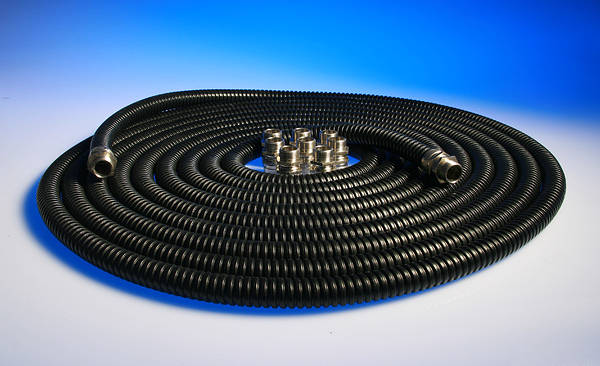

20mm PVC / Steel Flexible Conduit - 10Mtr c/w 10 Glands
Loading …
See product for Accessories
20mm Steel Flexible Conduit PVC Coated
10Mtr c/w 10 Glands
10Mtr c/w 10 Glands
Suitable for machine tools and connections for light mechanical stress.
Brass/nickel plated swivel glands IP54.
Additional Glands see below
| See product for Accessories |
Technical:IP Rating Chart |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
20mm Flexible Conduit Pack c/w 10 Glands - Grey
Loading …
Internal dia: - 14.1mm
External dia: - 19.7mm
Flexicon
10mts x 20mm Flexible Conduit Pack c/w 10 Glands
Grey
10mts x 20mm Flexible Conduit Pack c/w 10 Glands
Grey
- Materials: Polypropylene
- Fire performance: self extinguishing
- IP66 rated
- Fast, one piece push fit glands c/w lock nuts
- Glands can be removed with screwdriver if required
- Temperature performance: -20°C to 90°
Internal dia: - 14.1mm
External dia: - 19.7mm
Technical:Data Sheet - 150Kb IP Rating Chart |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|

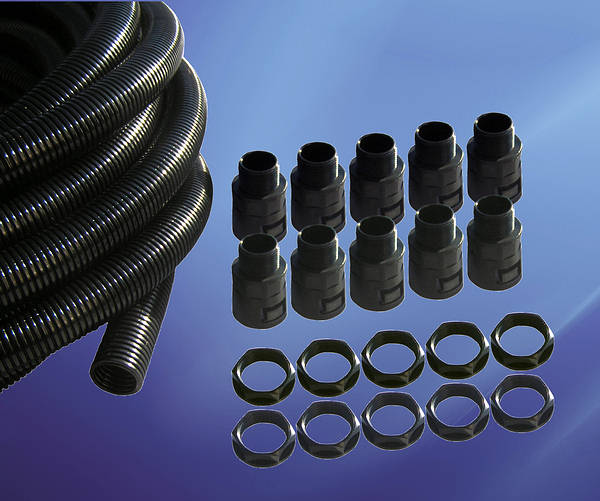

Flexible Conduit Packs c/w 10 Glands - Black
Loading …
Flexicon
10mts Flexible Conduit Packs c/w 10 Glands
Black
10mts Flexible Conduit Packs c/w 10 Glands
Black
- Materials: Polypropylene
- Fire performance: self extinguishing
- IP66 rated
- Fast, one piece push fit glands c/w lock nuts
- Glands can be removed with screwdriver if required
- Temperature performance: -20°C to 90°
Technical:Data Sheet - 150Kb Data Sheet - 395Kb IP Rating Chart |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
32mm Flexible Conduit Kit IP68 c/w 10 Glands - Black
Loading …
Internal diameter: Ø28.8mm
External diameter: Ø34.5mm
Wiska
32mm Flexible Conduit Kit IP68 c/w 10 Glands
Black
32mm Flexible Conduit Kit IP68 c/w 10 Glands
Black
Offering IP68 protection, WISKA contractor packs have everything you need to make your installation quicker and easier.
The flexible conduit fittings included are one piece construction (no assembly required), offer a high strain relief, built in O-ring,
and a unique closing mechanism ensuring a tight, tear-proof grip on your conduit.
Complete with 10 metres of polypropylene conduit, 10 fittings and locknuts.
The flexible conduit fittings included are one piece construction (no assembly required), offer a high strain relief, built in O-ring,
and a unique closing mechanism ensuring a tight, tear-proof grip on your conduit.
Complete with 10 metres of polypropylene conduit, 10 fittings and locknuts.
- Material : Polypropylene
- Halogen free
- Sulphur and Cadmium free
- Abrasion resistant
- Benzine, solvent and acid resistant
- UV resistant
- Protection class: IP68
- Operating temperature: -30°C to 95°C
- Flammability class: UL94 HB
- Colour: Black (RAL 9011)
- Compression strength: 350N
- Tensile strength: 250N
- Easy installation
- Standard: EN 61386
- Certificate: CE, ROHS
Internal diameter: Ø28.8mm
External diameter: Ø34.5mm
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|

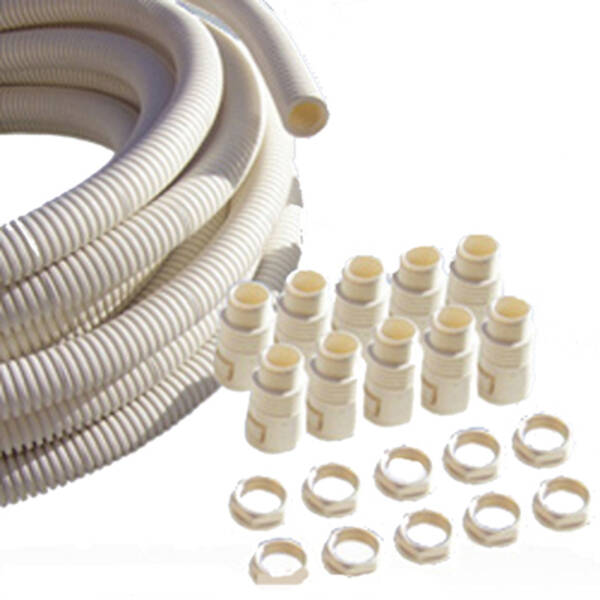

Flexible Conduit Packs c/w 10 Glands - White
Loading …
Flexicon
10mts Flexible Conduit Packs c/w 10 Glands
White
10mts Flexible Conduit Packs c/w 10 Glands
White
- Materials: Polypropylene
- Fire performance: self extinguishing
- IP66 rated
- Fast, one piece push fit glands c/w lock nuts
- Glands can be removed with screwdriver if required
- Temperature performance: -5°C to 70°
Technical:Datasheet - 280kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|

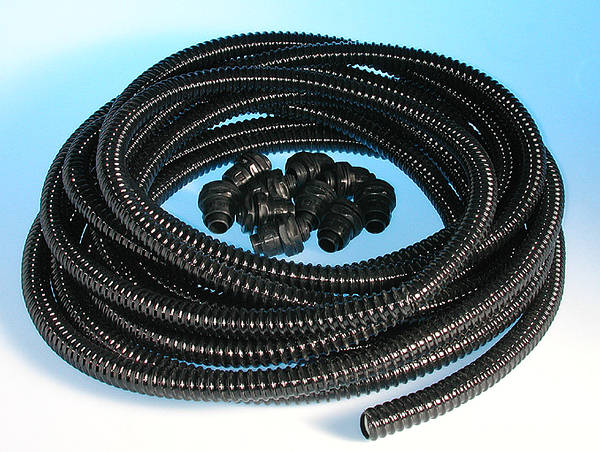

Electroflex Contractors Pack c/w 10 Glands
Loading …
External dia: - 20.7mm
See product for Accessories
Electroflex
10mts x 20mm Flexible Conduit c/w 10 Glands
Huge savings
10mts x 20mm Flexible Conduit c/w 10 Glands
Huge savings
External dia: - 20.7mm
| See product for Accessories |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|

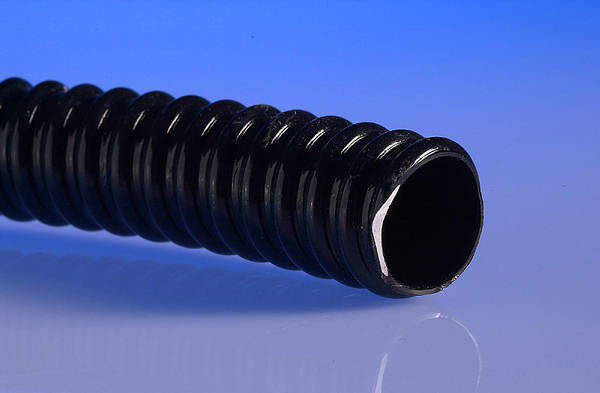

Flexible Conduit
Loading …

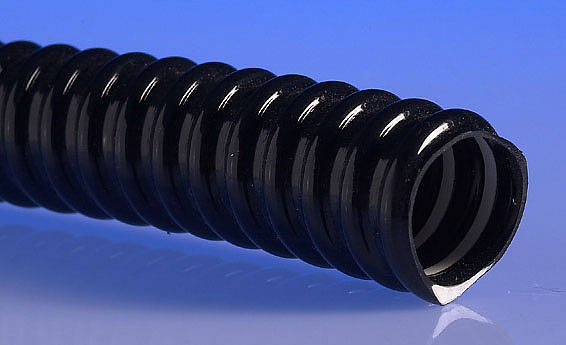

BH EF20
BH EF25

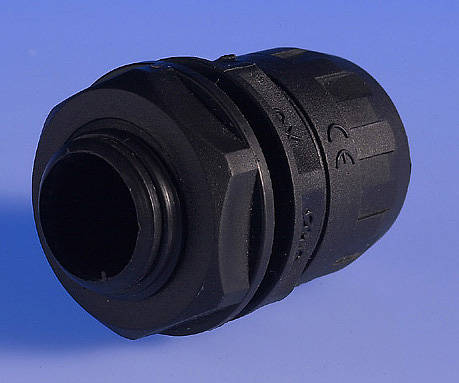

BH EF20G

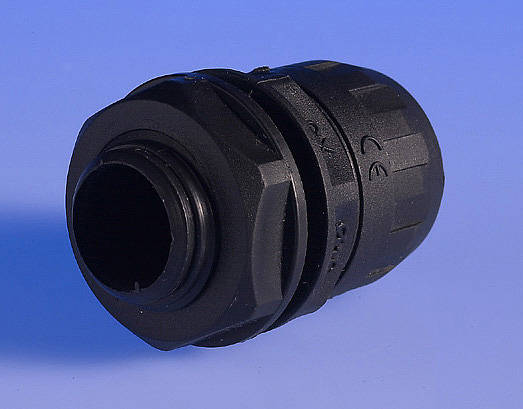

BH EF25G
See product for Accessories
Electroflex Conduit
| See product for Accessories |
Technical:BHEF Datasheet 1.0mb - pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
20mm Electroflex Flexible Conduit 30M --- Price Drop --- |
|
25mm Electroflex Conduit 30M --- Price Drop --- |
|
PVC Flexible Conduit - Black
Loading …
See product for Accessories
PVC Flexible Conduit
Black
Black
For general use, industrial where limited mechanical protection is required.
- Material: Polypropylene PP, self extinguishing
- Colour: Black
- Temperature range: -5°C to 90°C
- Crush resistance to 320N
- Standards: BS EN 61386
- See each product
| See product for Accessories |
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
LOflex Galvanised Flexible Steel Conduit
Loading …

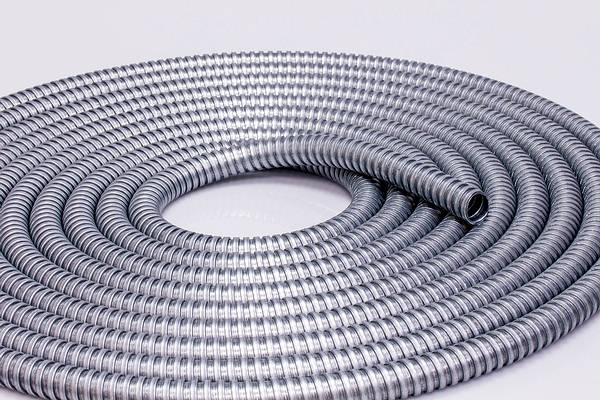

LF LS20/10

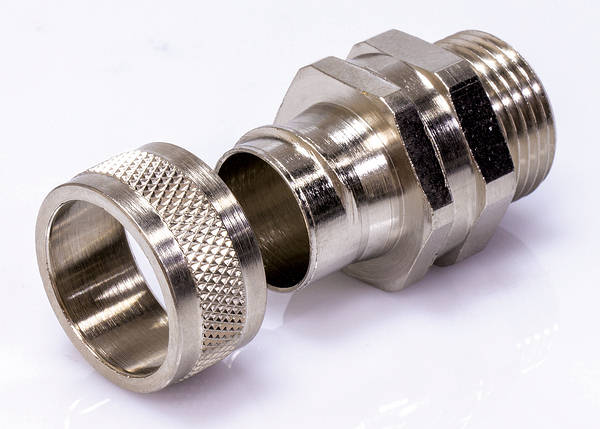

LF LGS20
See product for Accessories
LOflex
Galvanised Flexible Steel Conduit
Galvanised Flexible Steel Conduit
Galvanised Steel helically wound flexible conduit.
Flexible metallic conduit is inherently low fire hazard and provides high mechanical strength and is anti-static.
Ideal for use in Commercial and public buildings as well as tunnels.
Typically used in protecting cables for underfloor wiring in office blocks.
Flexible metallic conduit is inherently low fire hazard and provides high mechanical strength and is anti-static.
Ideal for use in Commercial and public buildings as well as tunnels.
Typically used in protecting cables for underfloor wiring in office blocks.
- IP40: when used with LG or LGS glands
- 20mm OD: 20.3mm ID: 16.9mm
- 25mm OD: 24.8mm ID: 21.2mm
- Bend radius: 45°
-
Compression Strength:
20mm: 263kg / 100mm
25mm: 234kg / 100mm - Tensile Strength:
20mm - 95kg / 20mm
25mm - 111kg / 20mm
| See product for Accessories |
Technical:LOflex Datasheet - 160kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|

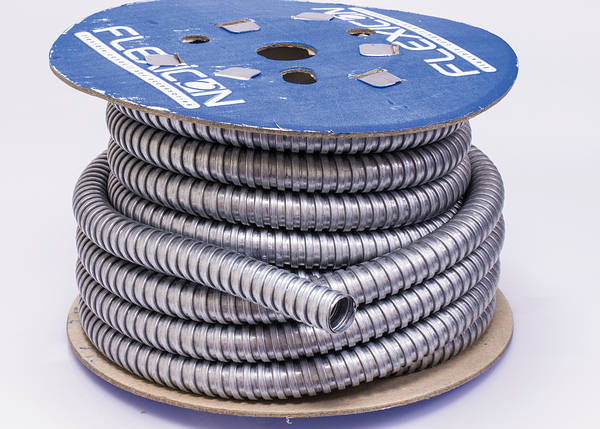

Flexicon Galvanised Steel Flexible Conduit
Loading …
FN FU20/10
FN M25S
See product for Accessories
Flexicon
Galvanised Steel Flexible Conduit
Galvanised Steel Flexible Conduit
Galvanised Steel helically wound flexible conduit.
Flexible metallic conduit is inherently low fire hazard and provides high mechanical strength and is anti-static.
Ideal for use in Commercial and public buildings as well as tunnels.
Typically used in protecting cables for underfloor wiring in office blocks.
Flexible metallic conduit is inherently low fire hazard and provides high mechanical strength and is anti-static.
Ideal for use in Commercial and public buildings as well as tunnels.
Typically used in protecting cables for underfloor wiring in office blocks.

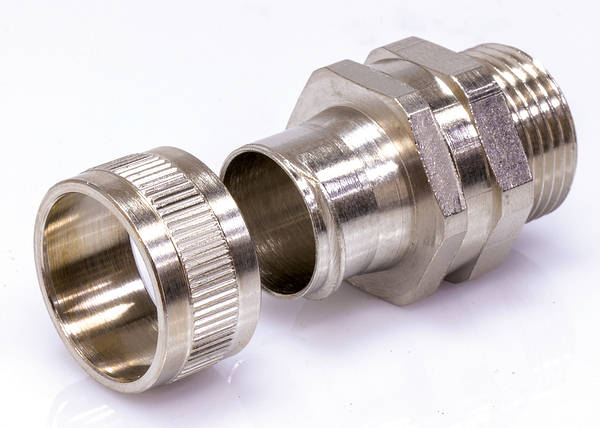

- IP40 when used with FNM20/25 glands
- 20mm OD: 20.6mm ID: 16.8mm
- 25mm OD: 24.6mm ID: 20.9mm
- Bend radius: 45°
-
Compression Strength:
20mm: 388kg / 100mm
25mm: 290kg / 100mm - Tensile Strength:
20mm - 151kg / 20mm
25mm - 152kg / 20mm
| See product for Accessories |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|

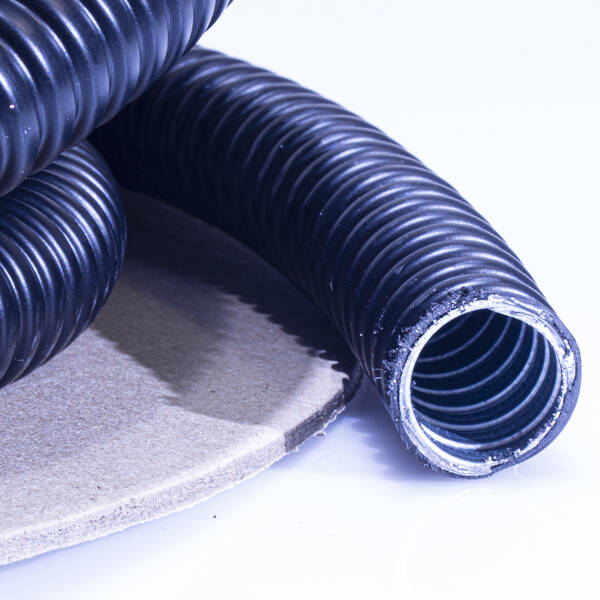

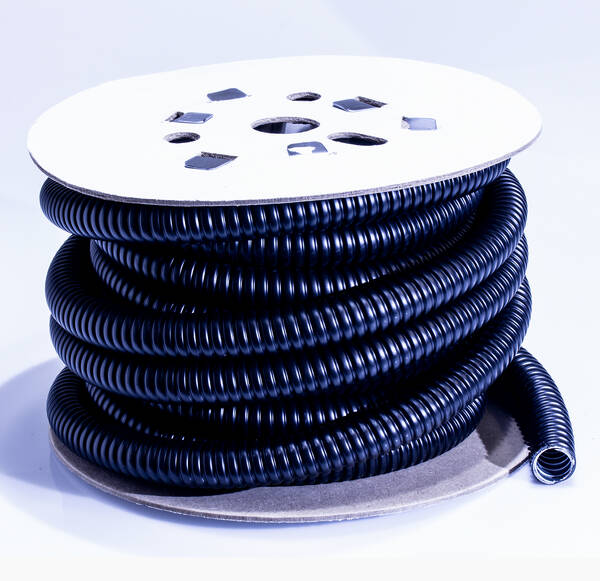

LOflex PVC Coated Flexible Steel Conduit
Loading …
20mm shown
20mm shown
See product for Accessories
Loflex
PVC Coated Flexible Steel Conduit
PVC Coated Flexible Steel Conduit
PVC Coated helically wound flexible steel conduit.
Flexible metallic conduit provides high mechanical strength and is anti-static.
Ideal for use in commercial and public buildings as well as tunnels.
Typically used in protecting cables for underfloor wiring in office blocks.
Flexible metallic conduit provides high mechanical strength and is anti-static.
Ideal for use in commercial and public buildings as well as tunnels.
Typically used in protecting cables for underfloor wiring in office blocks.
- IP54: when used with LG or LGS glands
- Compression strength: 1500N/50mm
- Temperature range: -15°C to +70°C
- Tested and compliant to: IEC EN 61386
| See product for Accessories |
Technical:LOflex Datasheet - 160kb pdf |
|
