FuseBox 100A TP&N Horizontal Fused Switch c/w 3 x 100A gG fuses
Loading …
See product for Replacement Fuses and Accessories
FuseBox
100A TP&N Horizontal Fused Switch c/w 3 x 100A gG fuses
100A TP&N Horizontal Fused Switch c/w 3 x 100A gG fuses
Designed for installations where height is restricted, FuseBox's 295mm high horizontal power distribution boards fit where standard boards won’t. Compact on the outside, with plenty of space inside for easy wiring.
- Horizontal design for restricted spaces
- Fixed horizontal busbar
- Spacious internal layout for easier cable routing and termination
- Removable and raised DIN rail for greater wiring access
- Aligned earth and neutral bars for faster, tidier wiring
- Coin-slot door lock for secure, convenient access
- No knockouts for added flexibility when glanding off
- Reversible door can be fixed to either side
- Easily removeable devices
- Robust 1.2mm steel enclosure
| See product for Replacement Fuses and Accessories |
Technical:Horizontal DB Datasheet - 5.6mb pdf Horizontal DB Flyer - 350kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|

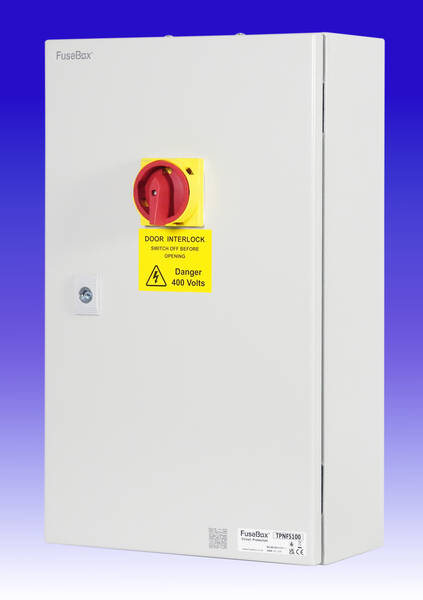

FuseBox TP&N Switchfuse - Steel Enclosure - IP65
Loading …
FuseBox
TP&N Switchfuse
Steel Enclosure - IP65
TP&N Switchfuse
Steel Enclosure - IP65
Combining a rotary isolator with integrated fuse protection, FuseBox's TP&N Switchfuse delivers safe circuit protection. Rated from 32A to 100A (AC-23A), it is supplied with 10×38 gG fuses for the 32A version and 22×58 gG fuses for 63A–100A. This provides mixed load protection, essential for high-current equipment where reliable isolation and overload protection are critical.
A red/yellow door interlock handle provides clear ON/OFF indication, while the door is mechanically interlocked when in the ‘ON’ position and can be padlocked when switched ‘OFF’. The signature spacious interior makes wiring fast and frustration-free.
A red/yellow door interlock handle provides clear ON/OFF indication, while the door is mechanically interlocked when in the ‘ON’ position and can be padlocked when switched ‘OFF’. The signature spacious interior makes wiring fast and frustration-free.
- AC-23A: 32A, 63A, 80A, and 100A options to suit commercial and industrial installations
- Delivers both manual isolation and automatic overload protection, necessary for high-current equipment
- Large, durable 1.2mm steel enclosure with a powder-coated RAL7035 finish
- Removable gland plates at the top and bottom
- Manually operated red/yellow handle for secure ON/OFF isolation
- Mechanically interlocked door in the ‘ON’ position to prevent access
- Handle can be padlocked in the OFF position for extra-secure isolation (max. 3 padlocks)
- Spacious internal layout ensures easy cable termination
- Operating temperature range of -25°C to 55°C
Technical:TP&N Switchfuse Brochure - 530kb pdf TP&N Switchfuse Datasheet - 490kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|

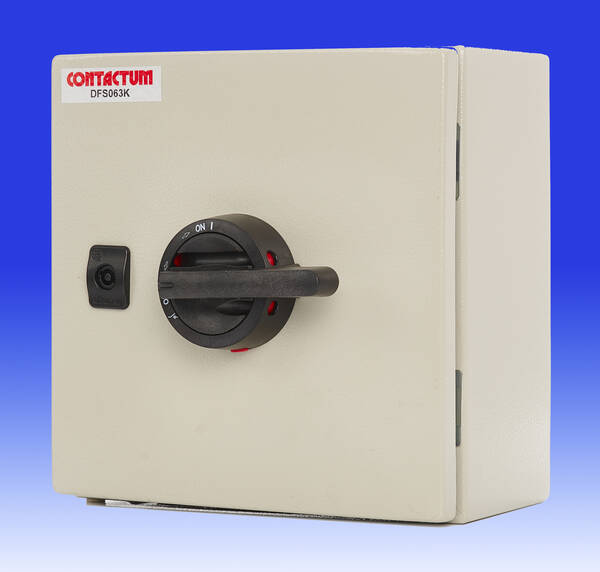

Contactum - TP&N Switchfuse
Loading …
See product for Accessories
'S' Type Three Pole Switchfuses (hinged doors)
Rotary Handles
Rotary Handles
- Fully rated solid neutral
- Gland plate (63A to 630A)
- Removable back plate and door
- Fully rated AC23 on load switch disconnectors
- Total isolation for fuse link removal
- Interlocked padlockable handle
- To BS EN 60947-3
- RAL7044 light grey finish
- Smaller rated fuses can be fitted in fuse units. Subject to body size
- Aux. switches and switched neutrals available (please contact Contactum)
- BS88 fuses included in switchfuses
| See product for Accessories |
Technical:Datasheet - 315kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|

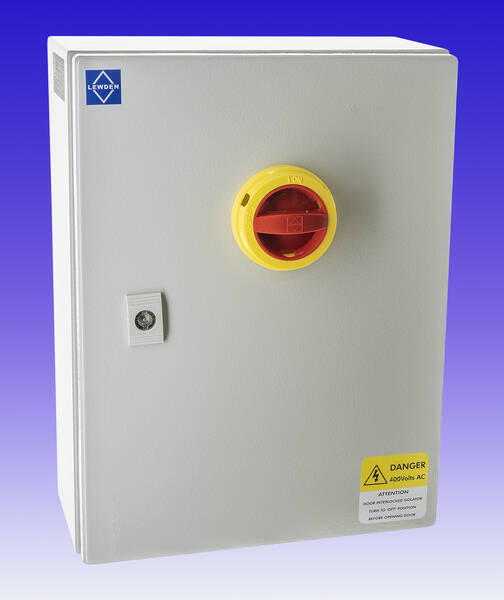

Lewden - TP&N Switchfuse
Loading …
Lewden
TP&N Switchfuse Metal Clad - IP65
TP&N Switchfuse Metal Clad - IP65
Powder coated mild steel enclosure with a wide space for comfortable wiring.
- Fully rated to AC-23A category - allows safe operation even with highly inductive loads (e.g. Motors, etc.)
- Robust and wide IP65 enclosure
- Manufactured from powder coated steel
- Padlockable and interlocked door
- Conforms to BS EN 60947-3
- See each product
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|

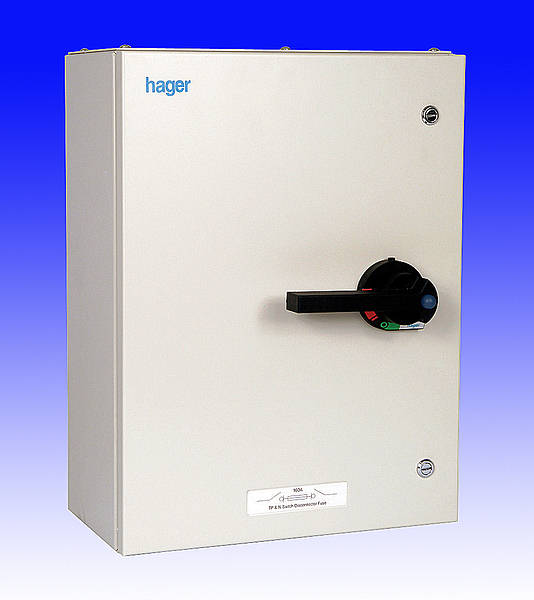

Hager - TP&N Switchfuse
Loading …
See product for Accessories
Hager - TP&N Switchfuse
FCS, TPN and panel board ranges by providing individual protection and control of individual circuits up to 800A.
The enclosures have been designed to provide adequate cabling space
without the need for additional cable spreader boxes.
Operation of the device is through a door mounted rotary handle which is mechanically
interlocked to prevent access to live conductors when the switch is in the on position.
The handle is also padlockable in the off position.
| See product for Accessories |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
MEM - TP&N Switch Fuses
Loading …
See product for Accessories
MEM - TP&N Switch Fuses
