Alabama LED Emergency Exit Box - Self Test
Loading …
EM AB3ST
Height: 196mm.
Width: 392mm.
Depth: 30mm.
Alabama LED Emergency Exit Box
Maintained
Self Test
Maintained
Self Test
Wall Mounting
The EMAB3ST is a LED maintained emergency exit box, low energy, ultra slim alternative to conventional exit boxes.
It has self-test functionality, 3 hour maintained mode as standard
Interchangeable up, down, left & right arrow exit legends included.
Applications: corridors, exits, escape routes.
The EMAB3ST is a LED maintained emergency exit box, low energy, ultra slim alternative to conventional exit boxes.
It has self-test functionality, 3 hour maintained mode as standard
Interchangeable up, down, left & right arrow exit legends included.
Applications: corridors, exits, escape routes.
- Input Voltage: 220-240V/AC.
- Power: 3.8W.
- Light Output: 25Lm (charging) - 48Lm (discharging).
- Viewing Distance: 30m max.
- Test method: Self-test.
- CCT: 6500K.
- IP Rating: IP20.
- Protection Class: Class II (double insulated)
- Housing: PC Body & Acrylic Lit Panel.
- Wall Mounting.
- Battery: LiFePO4 3.2V 1500mAh.
- 4 Legends included.
Height: 196mm.
Width: 392mm.
Depth: 30mm.
Technical:EMAB3ST Datasheet 540kb EMAB3ST Instructions 630kb - pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|

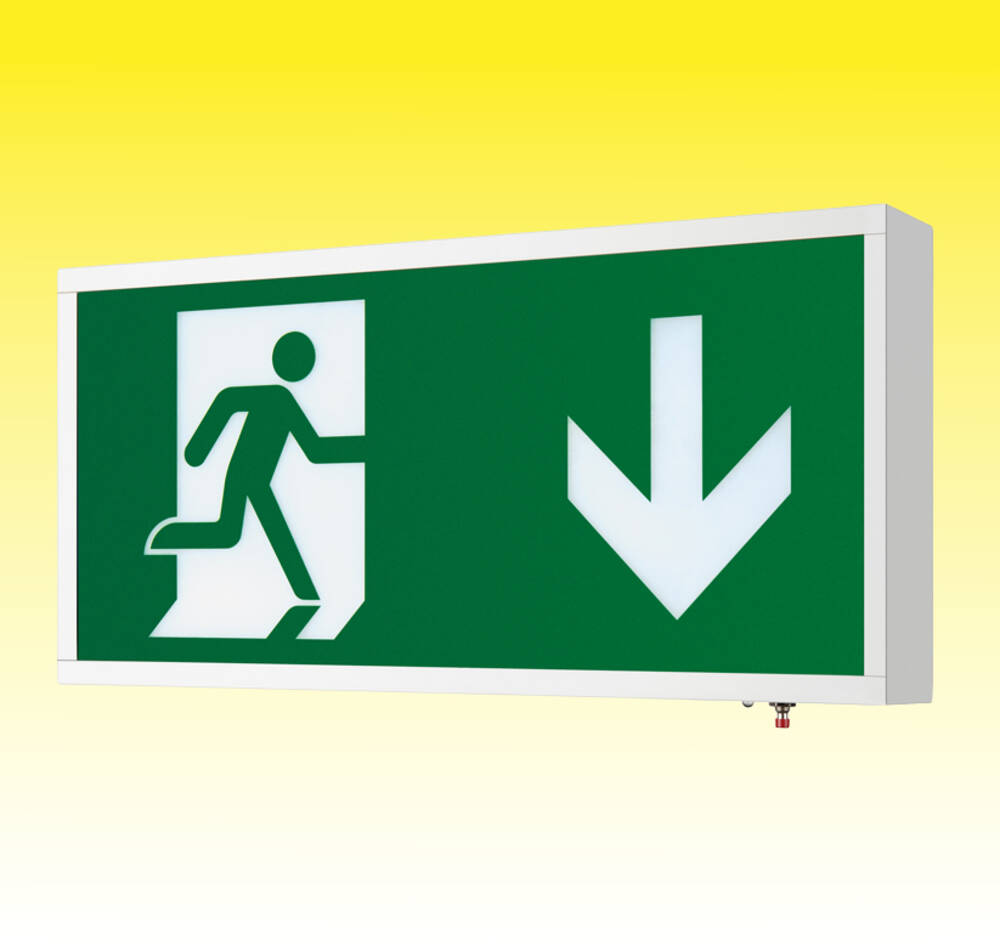

EscapeLUX 1W EM Metal Exit Box White - Self Test - IP20 c/w Legends
Loading …
Height: 190mm
Width: 390mm
Projection: 60mm
EscapeLUX
1W EM Metal Exit Box White
Self Test - IP20 c/w Legends
1W EM Metal Exit Box White
Self Test - IP20 c/w Legends
EscapeLUX is a flexible and fully compliant emergency lighting solution designed to meet the demands of commercial, industrial, and public sector environments. Features include: long-lasting lithium LiFePO4 batteries, self-test options for automatic testing, and a 5 year warranty (inc. battery).
- Wattage: 1W
- Lumen output: 20lm
- Colour temperature: 6500K
- Beam angle: 130°
- Manual or self-test selectable
- Maintained or non-maintained
- Steel construction
- Surface mounting
- Exit legends included
- IP20 rated
- Class I
- Operating temperature: 0°C to 45°C
- Lithium LiFePO4 battery with 5 year warranty
- Minimum battery run time: 3hrs
- Recharge time: 24hrs
- Manufactured in accordance to BS EN60598-2-22
Height: 190mm
Width: 390mm
Projection: 60mm
Technical:JCEM110018WH Datasheet - 190kb pdf JCEM110018WH Instructions - 2.1mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
LED 3W Ultra Slim Emergency Bulkhead - Self Test
Loading …
EM SB3ST
LED 3W Ultra Slim Emergency Bulkhead
Self Test
Self Test
The EMSB3ST is a LED maintained emergency exit bulkhead, low energy, ultra slim alternative to conventional exit bulkheads.
It has self-test functionality, 3 hour maintained mode as standard and can also be configured for non maintained operation.
Interchangeable up, down, left & right arrow exit legends included.
Applications: corridors, exits, escape routes.
It has self-test functionality, 3 hour maintained mode as standard and can also be configured for non maintained operation.
Interchangeable up, down, left & right arrow exit legends included.
Applications: corridors, exits, escape routes.
Technical:EMSB3ST Datasheet 3.2mb - pdf EMSB3ST Instructions 600kb - pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
EscapeLUX EM Bulkhead White - Self Test - IP66 c/w Legends
Loading …
Length: 355mm
Width: 115mm
Projection: 63mm
EscapeLUX
EM Bulkhead White - Self Test - IP66 c/w Legends
EM Bulkhead White - Self Test - IP66 c/w Legends
EscapeLUX is a flexible and fully compliant emergency lighting solution designed to meet the demands of commercial, industrial, and public sector environments. Features include: long-lasting lithium LiFePO4 batteries, self-test options for automatic testing, and a 5 year warranty (inc. battery).
- Colour temperature: 6500K
- Beam angle: 120°
- Manual or self-test selectable
- Maintained or non-maintained
- ABS/Polycarbonate construction
- Surface mounting
- Four way conduit entry with BESA mounting
- Exit legends included
- IP66 rated
- Impact rating: IK07
- Class II
- Operating temperature: 0°C to 45°C
- Lithium LiFePO4 battery with 5 year warranty
- Minimum battery run time: 3hrs
- Recharge time: 24hrs
- Manufactured in accordance to BS EN60598-2-22
Length: 355mm
Width: 115mm
Projection: 63mm
- See each product
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
LED Blade Exit Emergency Light - Self Test
Loading …
EM BL3ST
Dimensions:
Height: 211mm
Width: 285mm
Depth: 35mm
See product for Accessories
LED Blade Exit Emergency Light
Self Test
Self Test
The EMBL3ST is a LED maintained emergency exit sign, low energy, ultra slim alternative to conventional exit signs.
It has self-test functionality and 3 hour maintained mode as standard.
Rotatable legend design allows for selection of exit direction to increase flexibility.
LiFePO4 Lithium battery provides improved energy consumption, product reliability and lifetime.
Different mounting options available:
Suspension, Recessed, Ceiling surface, Wall surface mounting.
It has self-test functionality and 3 hour maintained mode as standard.
Rotatable legend design allows for selection of exit direction to increase flexibility.
LiFePO4 Lithium battery provides improved energy consumption, product reliability and lifetime.
Different mounting options available:
Suspension, Recessed, Ceiling surface, Wall surface mounting.
- Applications: corridors, exits, escape routes
- Self-test function (BS5266 compliant)
- Multiple mounting options
- Easy rotating PVC legends included
- Battery: LongLife LiFePO4 3.2V 1000mAh
- Warranty: 3 years (excluding battery)
- Power: 2.5W
- Light output: 45lm (charging), 25lm (discharging)
- Viewing distance: 30m max.
- CCT: 6500K
- Class: II (double insulated)
Dimensions:
Height: 211mm
Width: 285mm
Depth: 35mm
- See each product
| See product for Accessories |
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|

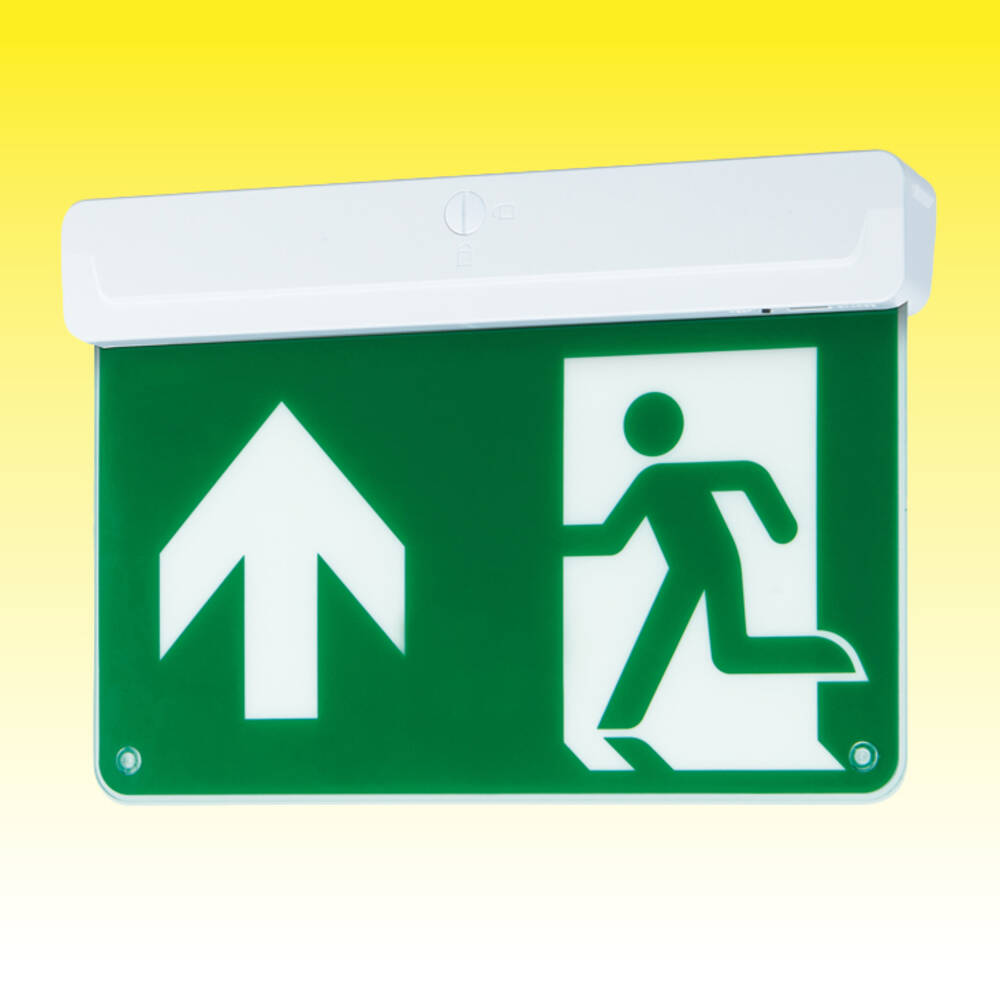

EscapeLUX 0.7W EM Exit Blade White - Self Test - IP20 c/w Legends
Loading …
Height: 212mm
Width: 313mm
Projection: 42mm
EscapeLUX
0.7W EM Exit Blade White - Self Test
IP20 c/w Legends
0.7W EM Exit Blade White - Self Test
IP20 c/w Legends
EscapeLUX is a flexible and fully compliant emergency lighting solution designed to meet the demands of commercial, industrial, and public sector environments. Features include: long-lasting lithium LiFePO4 batteries, self-test options for automatic testing, and a 5 year warranty (inc. battery).
- Wattage: 0.7W
- Lumen output: 20lm
- Colour temperature: 6500K
- Manual or self-test selectable
- Maintained or non-maintained
- Wall or ceiling mounting
- Exit legends included
- IP20 rated
- Class II
- Operating temperature: 0°C to 45°C
- Lithium LiFePO4 battery with 5 year warranty
- Minimum battery run time: 3hrs
- Recharge time: 24hrs
- Manufactured in accordance to BS EN60598-2-22
Height: 212mm
Width: 313mm
Projection: 42mm
Technical:JCEM110020WH Datasheet - 190kb pdf JCEM110020WH Instructions - 2.1mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
EscapeLUX 0.7W 5-in-1 EM Exit Blade White - Self Test - IP20 c/w Legends
Loading …
Height: 212mm
Width: 313mm
Projection: 42mm
EscapeLUX
0.7W 5-in-1 EM Exit Blade White - Self Test
IP20 c/w Legends
0.7W 5-in-1 EM Exit Blade White - Self Test
IP20 c/w Legends
5-in-1 design allows the installer to choose from the following mounting options:
Recessed, Surface - ceiling, Surface - wall, Flag, Suspended
EscapeLUX is a flexible and fully compliant emergency lighting solution designed to meet the demands of commercial, industrial, and public sector environments. Features include: long-lasting lithium LiFePO4 batteries, self-test options for automatic testing, and a 5 year warranty (inc. battery).
Recessed, Surface - ceiling, Surface - wall, Flag, Suspended
EscapeLUX is a flexible and fully compliant emergency lighting solution designed to meet the demands of commercial, industrial, and public sector environments. Features include: long-lasting lithium LiFePO4 batteries, self-test options for automatic testing, and a 5 year warranty (inc. battery).
- Wattage: 0.7W
- Lumen output: 20lm
- Colour temperature: 6500K
- Manual or self-test selectable
- Maintained or non-maintained
- Recessed, surface mount, flag mount, and suspension kit included
- Exit legends included
- IP20 rated
- Class II
- Operating temperature: 0°C to 45°C
- Lithium LiFePO4 battery with 5 year warranty
- Minimum battery run time: 3hrs
- Recharge time: 24hrs
- Manufactured in accordance to BS EN60598-2-22
Height: 212mm
Width: 313mm
Projection: 42mm
Technical:JCEM110021WH Datasheet - 160kb pdf JCEM110021WH Instructions - 7.9mb pdf |
|
