Fire Cable Fixing Clip for 25mm & 32mm Trunking
Product Code: DL SD30
5060226645619
SAFE-D30/100
Loading …
D-Line - Safe-D30
Fire Cable Fixing Clip
Fire Cable Fixing Clip
Safe and Secure for FIRE
Produced from high-temperature pliable steel with a non-corrosive finish.

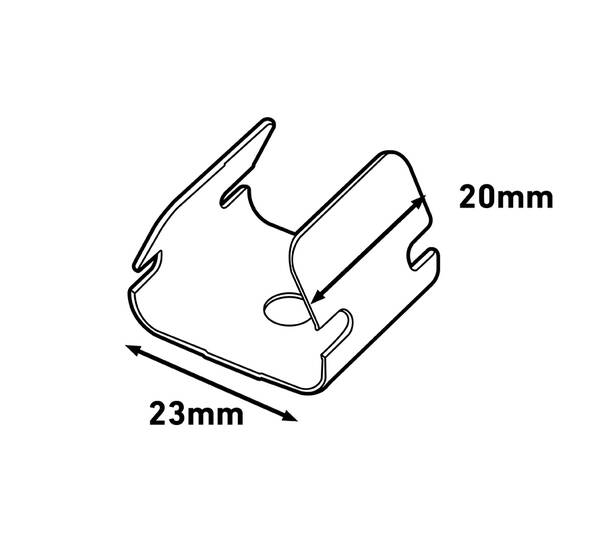

20mm-wide side-tabs can be simply folded to provide a way of containing cables for
up to 2 hours in 930°C fire conditions (when secured by a non-combustible fixing).

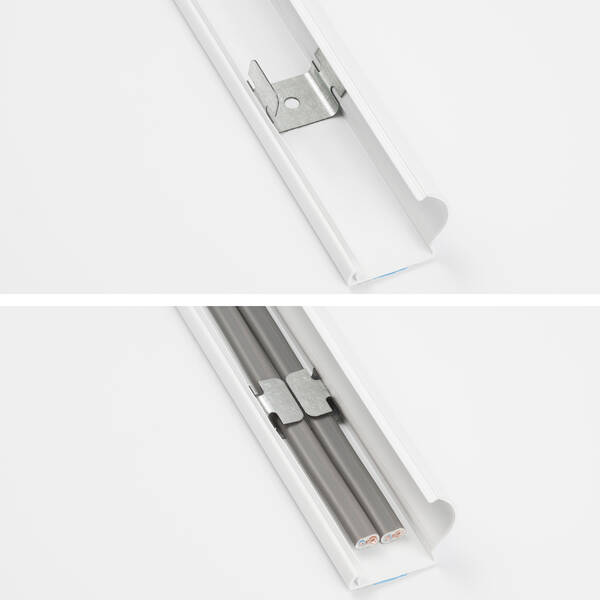

Use Safe-D30 Clips in 25mm or 30mm PVC trunking bases, or in ceiling voids.
22mm base width x 8.5mm internal height when folded (187mm2 capacity).
Ideal for 2x 2.5mm Twin & Earth, 2x 1.5mm 2-core FP cables etc. 5mm diameter fixing hole in base.
- Recent changes to 18th Edition (s521.11.201) require that “Wiring systems in escape routes shall be supported such that they will not be liable to premature collapse in the event of fire.” This refers to ALL cables in public areas, and is effective from 1st July 2015.
- D-Line Safe-D Clips have all been fully tested and certified by Exova Warrington Fire confirming they can hold full cable loads for 2 hours in temperatures up to 930°C to satisfy BS5839 pt1.
Technical:D Line Catalogue - 3.1Mb pdf How to Comply 633kb pdf Data Sheet 290kb pdf Fire Safety 980kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
DL SD30
Fire Cable Fixing Clip for 25mm & 32mm Trunking |
