Dimplex Monterey Panel Heater - 1500w5011139027900MFP150W

Loading …

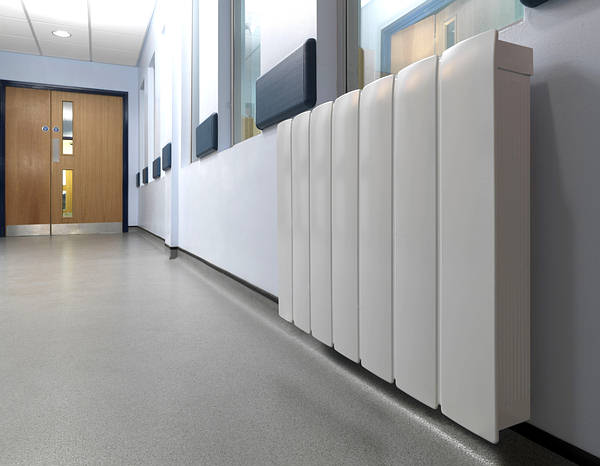

Monterey MFP150 Shown

Width: 741mm
Height: 536mm
Depth: 104mm

Description

Dimplex Monterey
Panel Heater - 1500w

Contemporary design.
Convected heat for rapid warm up.
Virtually noiseless.
Pre-set background temperature at 5oC below thermostat setting.*
Splash-proof (IPX4) rated, for use in bathroom or wet areas.

* When connected to a programming unit supporting setback feature.

Energy saving features
Compatible with Dimplex 4-zone, wall mounted pilot wire and mains borne signalling multi-heater programmers.
Thermostat control
User selection of room temperature from 5oC (frost protection) to 30oC using slider control. Slider can be locked in position if required. providing room temperature stability to +/-0.3oC.
Power controls and indicators
Soft-touch on/off button, together with indicators showing when power to heating is on and when element is operating.
IP Rating - Splashproof IPX4.

Plug-in control modules - (optional) A range of optional plug-in control modules, which can be removed from the heater for easy programming, provide the flexibility to meet a wide range of control specifications:
24-hour Digital Timer (RX24Ti)
1 timer required per heater. Provides 24 hour programmable on/off control.
Single Zone, Pilot Wire Programmer (RXPW1)
Controls up to 10 slave heaters linked via pilot wire. Provides 7 day programmable on/off control.
Runback Timer (RXRBTi)
1 timer required per heater. Provides installer programmable runback time up to 4 hours (in 30 min increments.) Can be locked into heater.
