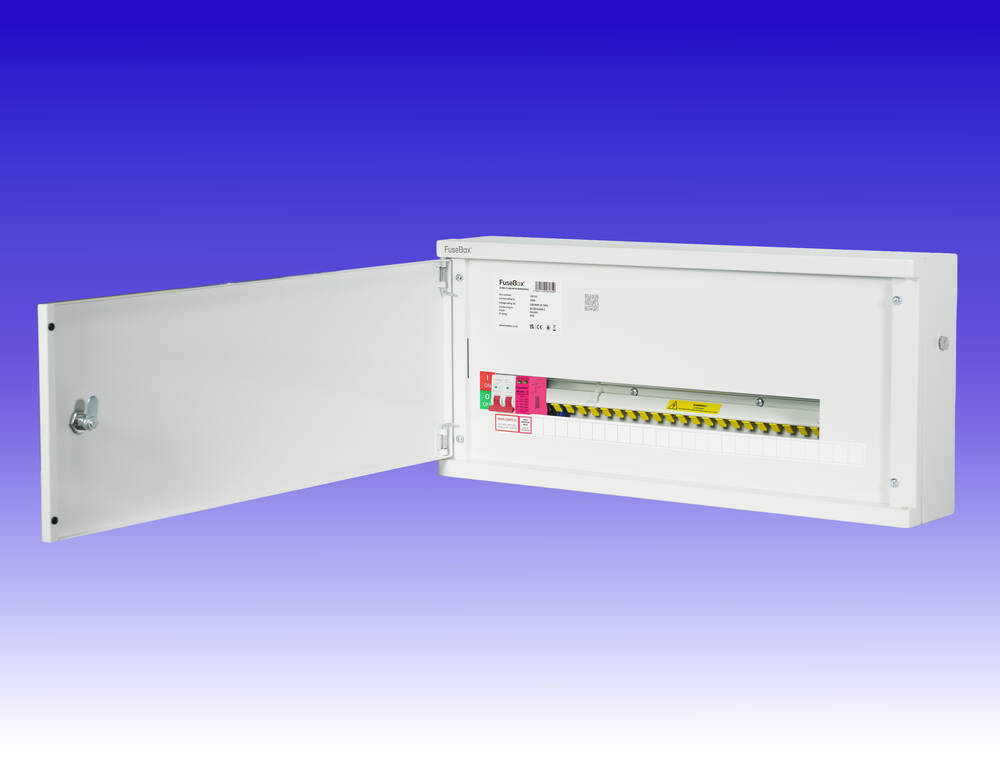

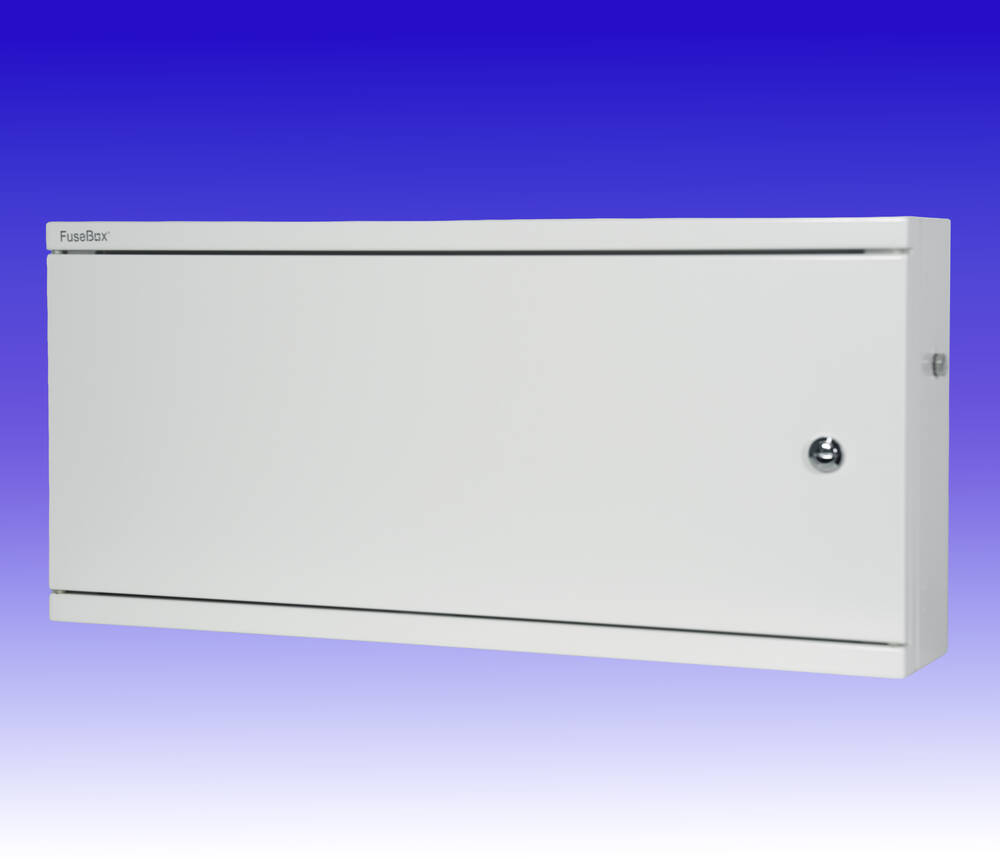

25 Way SP&N Horizontal Distribution Board c/w 100A Main Switch + T2 SPD
Product Code: FB HSP25Z
5061129481359
HSP25Z
Loading …
Height: 295mm
Width: 644mm
Depth: 113mm
FuseBox
25 Way SP&N Horizontal Distribution Board
c/w 100A Main Switch + T2 SPD
25 Way SP&N Horizontal Distribution Board
c/w 100A Main Switch + T2 SPD
Designed for installations where height is restricted, FuseBox's 295mm high horizontal power distribution boards fit where standard boards won’t. Compact on the outside, with plenty of space inside for easy wiring.
Available in Single Phase and Three Phase distribution. Suitable for 6kA and 10kA FuseBox devices.
Available in Single Phase and Three Phase distribution. Suitable for 6kA and 10kA FuseBox devices.
- Horizontal design for restricted spaces
- Fixed horizontal busbar
- Spacious internal layout for easier cable routing and termination
- Removable and raised DIN rail for greater wiring access
- Aligned earth and neutral bars for faster, tidier wiring
- Coin-slot door lock for secure, convenient access
- No knockouts for added flexibility when glanding off
- Reversible door can be fixed to either side
- Easily removeable devices
- Robust 1.2mm steel enclosure
Height: 295mm
Width: 644mm
Depth: 113mm
Technical:Horizontal DB Datasheet - 5.6mb pdf Horizontal DB Flyer - 350kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
FB HSP25Z
25 Way SP&N Horizontal Distribution Board c/w 100A Main Switch + T2 SPD |
FuseBox TP&N Distribution Board - Incomers
Loading …
FBIT1004
FBRTA1000304
See product for Accessories
FuseBox
TP&N Distribution Board - Incomers
TP&N Distribution Board - Incomers
| See product for Accessories |
Technical:TPN Brochure - 6.5mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
FuseBox SP MCB 10kA - B Curve
Loading …
See product for Accessories
FuseBox
SP MCB 10kA - B Curve
SP MCB 10kA - B Curve
| See product for Accessories |
Technical:Datasheet - 230kb pdf FuseBox Brochure - 7mb pdf TPN Brochure - 6.5mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
FuseBox SP MCB 10kA - C Curve
Loading …
See product for Accessories
FuseBox
SP MCB 10kA - C Curve
SP MCB 10kA - C Curve
| See product for Accessories |
Technical:Datasheet - 230kb pdf FuseBox Brochure - 7mb pdf TPN Brochure - 6.5mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
FuseBox SP MCB 10kA - D Curve
Loading …
See product for Accessories
FuseBox
SP MCB 10kA - D Curve
SP MCB 10kA - D Curve
| See product for Accessories |
Technical:Datasheet - 230kb pdf FuseBox Brochure - 7mb pdf TPN Brochure - 6.5mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
FuseBox 30mA RCBO - 10kA (Type A) B Curve
Loading …
See product for Accessories
FuseBox
30mA RCBO - 10kA (Type A) B Curve
30mA RCBO - 10kA (Type A) B Curve
- See each product
| See product for Accessories |
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
FuseBox 30mA RCBO - 10kA (Type A) C Curve
Loading …
See product for Accessories
FuseBox
30mA RCBO - 10kA (Type A) C Curve
30mA RCBO - 10kA (Type A) C Curve
- See each product
| See product for Accessories |
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
FuseBox 30mA RCBO - (Type B) B Curve - Bi-directional
Loading …
FuseBox
6A 30mA RCBO 6kA (Type B)
B Curve - Bi-directional
6A 30mA RCBO 6kA (Type B)
B Curve - Bi-directional
Heat pumps. Solar. EV charging. Today’s installs demand an RCBO that keeps up.
FuseBox's Type B bi-directional RCBO is designed for modern electronic loads, whichever way the current flows.
30mA earth leakage, overcurrent, and short circuit protection in both directions. Detects faults in smooth DC, pulsed DC, and AC currents. Suitable for domestic and industrial applications, with a 6kA PFC.
FuseBox's Type B bi-directional RCBO is designed for modern electronic loads, whichever way the current flows.
30mA earth leakage, overcurrent, and short circuit protection in both directions. Detects faults in smooth DC, pulsed DC, and AC currents. Suitable for domestic and industrial applications, with a 6kA PFC.
- Rating: 6A to 50A
- Tripping curve: B
- Number of poles: 1P + N (switched neutral)
- Residual operating current: 30mA
- Type: B
- Rated short circuit capacity: 6kA
- Maximum cable capacity: 16mm²
- Complies with IEC EN 61009-1
Technical:TypeB RCBO Datasheet - 300kb pdf TypeB RCBO Flyer - 175kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
FuseBox - DP Mini AFDD Type A - 10kA
Loading …
FuseBox
30mA DP Mini AFDD/RCBO
B Curve (Type A) 10kA (1 Module)
30mA DP Mini AFDD/RCBO
B Curve (Type A) 10kA (1 Module)
FuseBox combined mini AFDD/RCBO (1P+N), with switched Line and Neutral.
Designed for the demands of increasingly electrified buildings, FuseBox's mini 10kA AFDD with RCBO combines three layers of protection in one compact device to help detect dangerous electrical faults before they become a fire risk.
Designed for the demands of increasingly electrified buildings, FuseBox's mini 10kA AFDD with RCBO combines three layers of protection in one compact device to help detect dangerous electrical faults before they become a fire risk.
- 6A to 40A options for a wide range of commercial and industrial applications
- Combines overcurrent, 30mA residual current, and arc fault protection in a single device
- Detects both series and parallel arc faults by analysing the circuit waveform
- Compact single-module design for DIN rail mounting
- Automatically disconnects the affected circuit when an arc fault is detected
- Clear LED indication for fast and easy fault finding
- Required for installations in buildings over 18m high or more than six storeys
- BS 7671 requires AFDDs on socket outlet circuits up to 32A in higher-risk residential buildings (HRRBs). It also recommends them on all other 32A socket outlet circuits
Technical:10kA AFDD Datasheet - 6mb pdf 10kA AFDD Flyer - 310kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
FuseBox Contactors
Loading …
FBINC202
See product for Accessories
FuseBox
Contactors
Contactors
| See product for Accessories |
Technical:Datasheet - 410kb pdf Contactor Instructions - 3.7mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
Heat-activated Aerosol Fire Extinguisher for Distribution Boards
Loading …
FuseBox
Heat-activated Aerosol Fire Extinguisher for Distribution Boards
Heat-activated Aerosol Fire Extinguisher for Distribution Boards
The FuseBox HA20D is a compact DIN rail mountable heat-activated aerosol fire extinguisher. This automatic fire suppression solution is designed to provide added protection inside consumer units, distribution boards and other small enclosed electrical installations.
With no wiring or external power supply required, the unit activates automatically when temperatures reach 170°C (±10°C), rapidly releasing a condensed aerosol to suppress a fire at its source. Its compact MCB-sized design allows for simple installation using DIN rail or adhesive mounting, making it ideal for modern consumer units where space is limited.
With no wiring or external power supply required, the unit activates automatically when temperatures reach 170°C (±10°C), rapidly releasing a condensed aerosol to suppress a fire at its source. Its compact MCB-sized design allows for simple installation using DIN rail or adhesive mounting, making it ideal for modern consumer units where space is limited.
- Self-contained compact aerosol technology for fire protection
- Automatic heat activation at 170°C
- Compact MCB-sized design for a neat, space-saving fit
- Suitable for single phase + TPN ranges
- DIN rail or adhesive mounting for flexible positioning
- No wiring or external power required for fast and simple installation
- Protects enclosed spaces up to 0.2m²
- <10 second discharge using condensed aerosol fire suppression technology
- 10 year service life
Technical:FBHA20D Datasheet - 210kb pdf |
|
