Faac 390 UK KIT Gate Opener Kit
Easy to install kits for the builder and electrician

Swing Gate Automation
Articulated arm for swing gates. No welding required

Ideally suited for residential applications and left- or right-hand installation,
the specially designed articulated arm allows inward or outward opening.

The operator is simply fixed to the gate pier and the arm attached to the gate leaf.

Suitable for swing gates up to 3m per leaf (with electric lock) or 1.8m without electric lock.

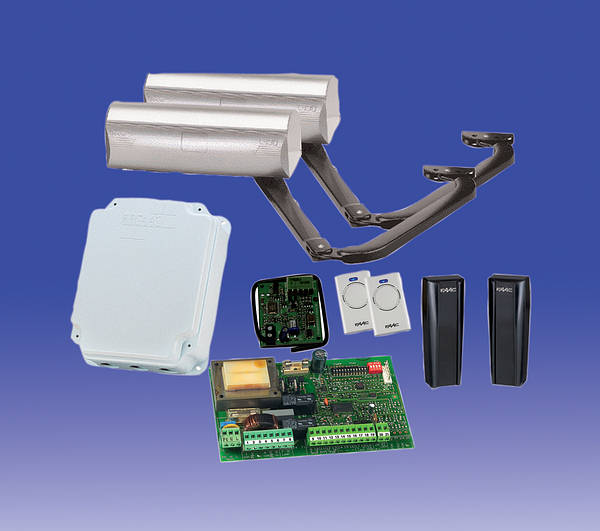

  • 2 x 390 electro-mechanical operators
  • 2 x articulated arms
  • 1 x control board and housing
  • 1 x set of photocells
  • 2 x manual release keys
  • 1 x plug-in 868MHz receiver
  • 2 x 2 button 868MHz transmitter
  • Power supply 230V / 50Hz
  • Absorbed power 280W
  • Motor winding thermal cut-out 140”C
  • Open time 15 sec/90”
  • Max torque 250Nm
  • Temp range -20”C + 55”C
  • Operator weight 12kg
  • Protection class IP44
  • Duty cycle (cycles/hour) 15
  • Opening angle 120
  • Min leaf length 0.45m
  • * Leaves exceeding 1.8m require the fitting of an electric lock to enable leaf locking
Not Stocked at all Branches Please allow 2 - 3 days for stock transfer


D390 - Data - 158kb D390 - Installation - 260kb Guide to Safety and Standards - 700kb IP Rating Chart
