Faac 402 UK KIT Gate Opener Kit
Easy to install kits for the builder and electrician

The 402 CBC has hydraulic locking on closure and can open gates up to 1.8m in length.

Maximum security and safety

Our hydraulic lock systems allow the gates to be held closed
whilst anti-intrusion security is ensured by the addition of
electric or magnetic locks. At the same time sensitive by-pass
valves in the hydraulic system ensure the maximum anticrushing
safety - with a simple manual override facility in the
event of an emergency.

Low maintenance and quiet efficiency
The combination of a quiet operation, minimal maintenance, and
low power consumption is the hallmark of the 402 hydraulic unit
- making it ideal for the residential environment. The addition
of a programmable control board provides a slowdown feature
at the end of the opening and closing cycles to lower noise and
prolong the life of the gate system.

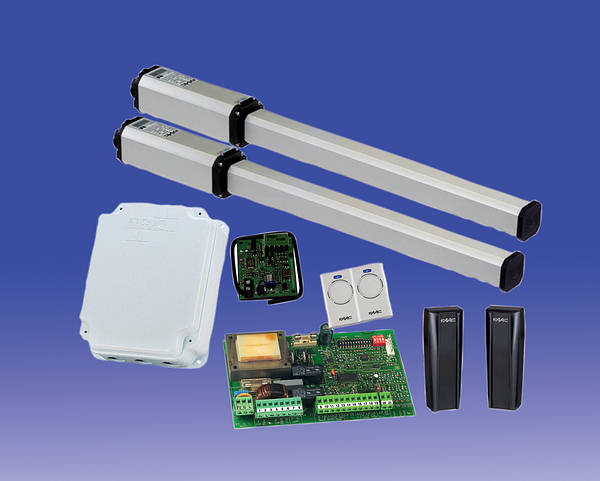

  • 2 x 402CBC 230V electromechanical operators
  • 1 x control board and housing
  • 1 x set of photocells
  • 2 x manual release keys
  • 1 x plug-in 868MHz receiver
  • 1 x 2 button 868MHz transmitter
  • FAAC HP Oil Included
  • Power supply: 230 Vac (+6% to 10%) 50 (60) Hz
  • Absorbed power: 220 W
  • Absorbed current: 1A
  • Motor rotation speed: 1400 rpm
  • Speed of operation: 90o angle - 18.5s
  • Pump fl ow rate: 1 l/min
  • Traction and thrust force: 0 to 500 daN
  • Operating ambient temperature: -40oC to +55oC
  • Thermal protection on motor winding: 120oC
  • Weight: 6.5 kg
  • Type of oil: FAAC HP Oil
  • Protection class: IP55
  • Single leaf max length (m) 1.8m
  • Use frequency (cycles/hour) 55
Not Stocked at all Branches Please allow 2 - 3 days for stock transfer


Guide to Safety and Standards - 700kb Data Sheet - 150kb Installation - 920kb
