Faac 415L KIT Single Gate Opener Kit
Easy to install kits for the builder and electrician

Swing Gate Automation

Self-locking swing gate operator kit.
Ideal for field gates up to 4m per leaf.

This highly robust unit has a die-cast aluminium body with
two coats of paint. Its stainless steel drive rod is designed for long
trouble free operation.

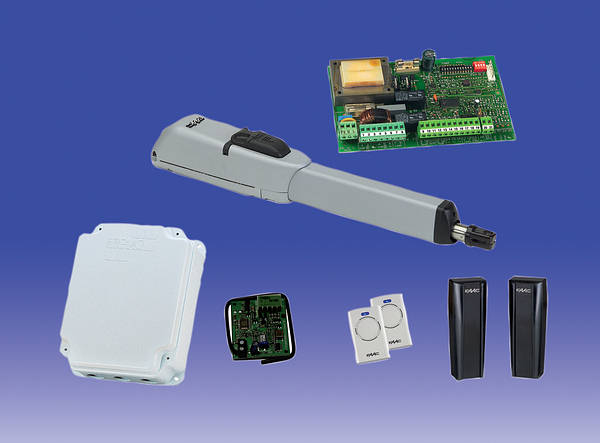

  • 1 x 415 Long 230V electromechanical operators
  • 1 x control board and housing
  • 1 x set of photocells
  • 2 x manual release keys
  • 1 x plug-in 868MHz receiver
  • 1 x 2 button 868MHz transmitter
  • Power supply 230V / 50Hz
  • Absorbed power 300W
  • Motor winding thermal cut-out 140”C
  • Temp range -20”C +55”C
  • Thrust 300daN
  • Operator weight 8kg
  • Protection class IP54
  • Duty cycle (cycles/hour) 25
  • Max leaf length 4 m
  • Open time 24s/90
  • * With leaves exceeding 3m the fitting of an electric lock is required to ensure the leaf locking
Not Stocked at all Branches Please allow 2 - 3 days for stock transfer


Guide to Safety and Standards - 700kb Data Sheet - 1.3Mb Installation - 870kb
  Order Code Description Price (ex VAT) Price (inc VAT) Quantity
product photo FC 415LKITS Faac 415L KIT Single Gate Opener Kit
