Le Sucre Wireless Glass Break Sensor3603940003581FG8M

Loading …

Dimensions
(h x w x d): 115 x 720 x 27mm

Dual Protocol for compatibility with Galaxy Dimension, G2, Le Sucre™, Domonial and Vista panels

Description

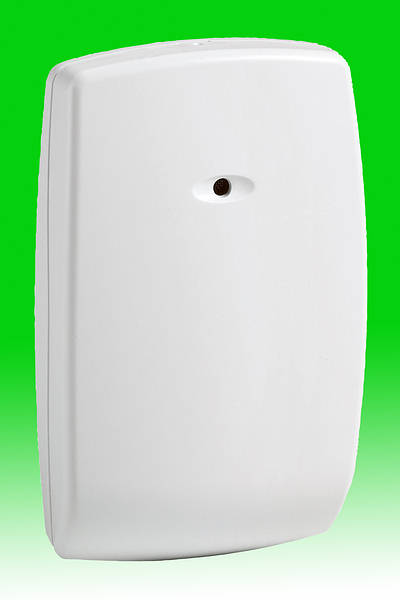

Le Sucre
Wireless Glass Break Sensor

Honeywell’s NEW FG8M wireless acoustic glassbreak sensor is the perfect inner perimeter protection solution
to address the problem of false alarms, particularly common in environments
where there is a lot of glass present, for instance Retail sites problem.

The FlexCore™ and Flexguard™ technologies offer advanced post
sensing signal processing capabilities which provide unequal false alarm immunity.

Protect all types of glass up to 14mm (plate, tempered, laminated, wired, coated, sealed insulating)
7.6m detection range
Four sensitivity levels (7.6m - 4.6m - 3m - 1.5m) via dip-switch
Battery life:
6 years in V2GY mode;
7 years in ALPHA mode
RF Range of 2000m unobstructed
Bi-Directional RF communications

868 MHz RF frequency, Narrow Band, FM
Compatible with FG701 glassbreak simulator with on/off test mode from a distance up to 4.6m
Dual Protocol for compatibility with Galaxy
Tamper: Front cover and wall mounting
Weight without batteries: 143g
Operating temperature: -10°C to 55°C
Approvals: CE, EN50131-5-3, Grade, 2 Environmental Class II

Technical

Technical:

LSFG8M Data 93Kb .PDF Full Manual 1.4Mb .PDF Quick Install 300Kb .PDF

LS FG8M
