Mini LED Oval 3CCT Bulkhead 9/12/18W - Black - IP65 c/w PIR
Product Code: LT BO18BP
5055800111161
LTBO18BP
Loading …
230mm x 105mm x 55mm
LEDlite
Mini LED Oval 3CCT Bulkhead 9/12/18W
Black - IP65 c/w PIR
Mini LED Oval 3CCT Bulkhead 9/12/18W
Black - IP65 c/w PIR

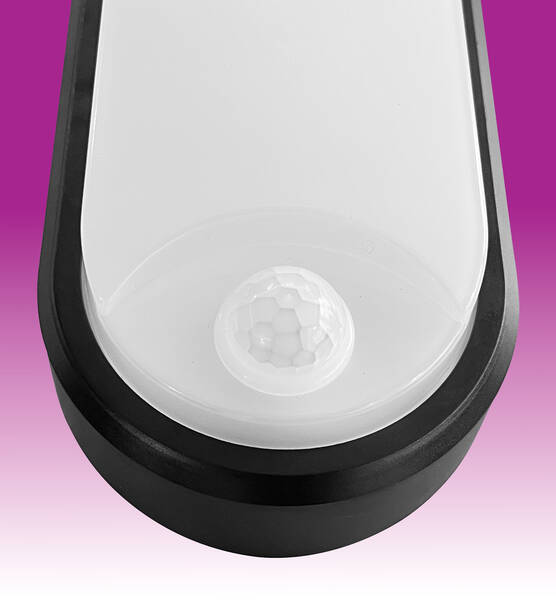

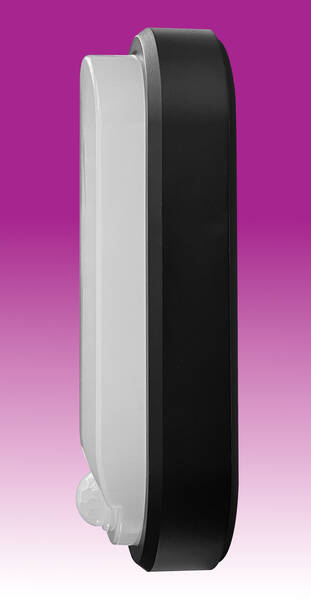

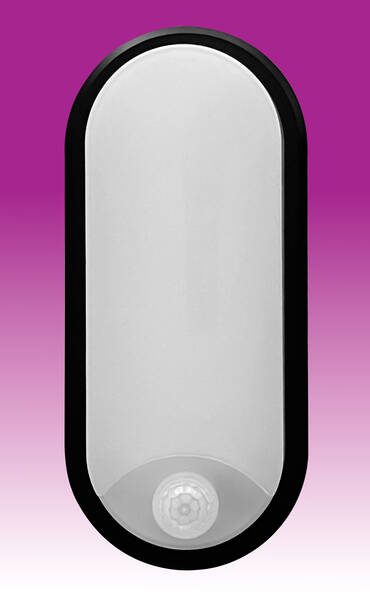

The Mini LED Oval Bulkhead is a compact and robust luminaire designed for indoor and outdoor use. With selectable wattage and colour temperature options, it offers flexible lighting solutions for a variety of environments.
The fixture is available with an integrated PIR sensor for energy-efficient motion-activated lighting.
Applications:
Residential entrances, stairwells & hallways, parking garages, utility areas, external walls, commercial & industrial zones
The fixture is available with an integrated PIR sensor for energy-efficient motion-activated lighting.
Applications:
Residential entrances, stairwells & hallways, parking garages, utility areas, external walls, commercial & industrial zones
- Input voltage: 220-240V AC / 50-60Hz
- Power output (switchable): 9W / 12W / 18W
- Colour temperature (switchable): 3000K / 4000K / 6500K
- Lumen output: 1100lm (9W) / 1500lm (12W) / 2100lm (18W)
- Luminous efficacy: >120lm/W
- CRI: >80
- Beam angle: 115°
- Polycarbonate base and diffuser
- IP rating: IP65
- Impact rating: IK08
- Class II
- Ambient temperature range: -15°C to 40°C
- 5 year warranty
- PIR specification:
- Detection range: max. 4m
- Detection angle: 120°
- Hold time: 5s/90s/5mins/10mins
- Standby period: 0s/10s/15mins/infinite
- Ambient light: disabled or 25Lux
- Max. mounting height: 3m
230mm x 105mm x 55mm
Technical:LTBO18BP Datasheet - 1.7mb pdf LTBO18BP Instructions - 2.5mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
LT BO18BP
Mini LED Oval 3CCT Bulkhead 9/12/18W - Black - IP65 c/w PIR |
