Mini LED Round 3CCT Bulkhead 9/12/18W - Black - IP65 c/w PIR
Product Code: LT BR18BP
5055800111185
LTBR18BP
Loading …
Ø210 x 58mm
LEDlite

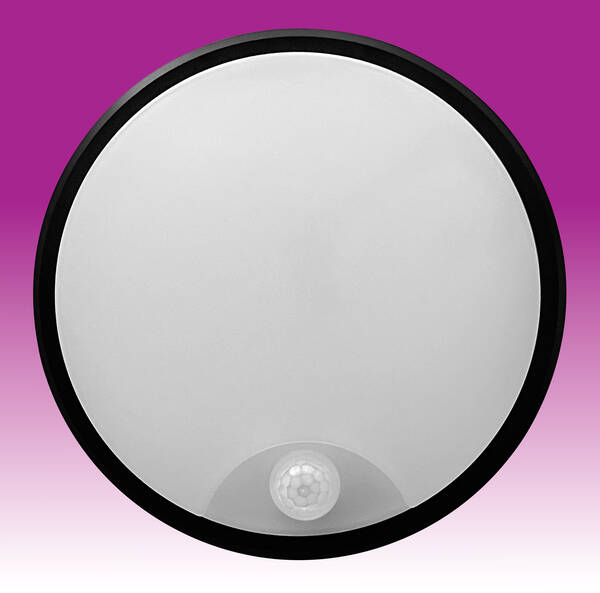

Mini LED Round 3CCT Bulkhead 9/12/18W
Black - IP65 c/w PIR
Mini LED Round 3CCT Bulkhead 9/12/18W
Black - IP65 c/w PIR
The Mini LED Round Bulkhead is a compact and robust luminaire designed for indoor and outdoor use. With selectable wattage and colour temperature options, it offers flexible lighting solutions for a variety of environments.

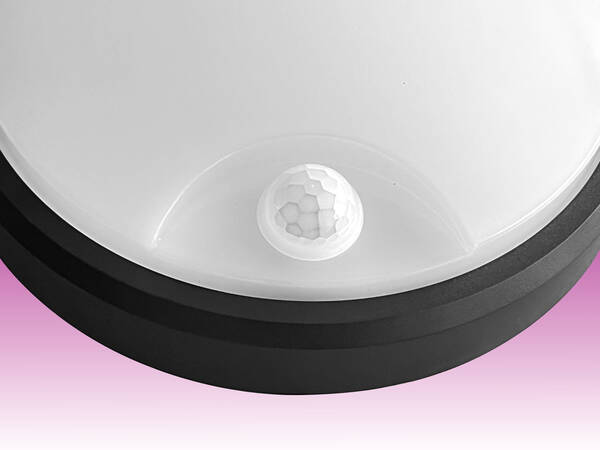

The fixture is available with an integrated PIR sensor for energy-efficient motion-activated lighting.
Applications:
Residential entrances, stairwells & hallways, parking garages, utility areas, external walls, commercial & industrial zones
The fixture is available with an integrated PIR sensor for energy-efficient motion-activated lighting.
Applications:
Residential entrances, stairwells & hallways, parking garages, utility areas, external walls, commercial & industrial zones
- Input voltage: 220-240V AC / 50-60Hz
- Power output (switchable): 9W / 12W / 18W
- Colour temperature (switchable): 3000K / 4000K / 6500K
- Lumen output: 1100lm (9W) / 1500lm (12W) / 2100lm (18W)
- Luminous efficacy: >120lm/W
- CRI: >80
- Beam angle: 115°
- Polycarbonate base and diffuser
- IP rating: IP65
- Impact rating: IK08
- Class II
- Ambient temperature range: -15°C to 40°C
- 5 year warranty
- PIR specification:
- Detection range: max. 4m
- Detection angle: 120°
- Hold time: 5s/90s/5mins/10mins
- Standby period: 0s/10s/15mins/infinite
- Ambient light: disabled or 25Lux
- Max. mounting height: 3m
Ø210 x 58mm
