13A Twin DP Switched Socket with 2 x USB - 2.0A Shared5017490886897K2744WHI

Loading …

Height – 85.6mm
Width – 146mm
Depth – 29.8mm (Inc Front Plate
Depth – 14.8mm (Exc Front Plate

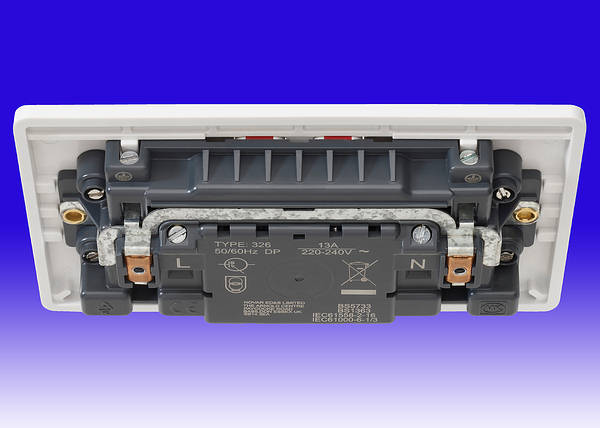

Terminal Capacity:
Live, neutral & earth
3 x 2.5mm2
3 x 4mm2
2 x 6mm2 (stranded)
MK Logic Plus
2 Gang Switch socket Outlet
with Integrated Dual USB Charging Capability
10 Year Guarantee
New Logic Plus Design.

Logic Plus products are made from a high grade thermoset
material which has an inherent antimicrobial property.

In independent tests, the Logic PlusTM products were equal to,
or exceeded, competitor ‘Anti-Bac’ products when tested for
resistance to MRSA, E.Coli, Salmonella and Klebsiella pneumoniae.

Supplied with 30mm Fixing Screws
  • USB 2.0 and 3.0 compatible
  • Double pole switching
  • Dual earthed
  • Current Rating:
    13A Combined total 2A drawn from USB outlets
  • Standby Power: < 150mW
  • IP Rating: IP2XD
  • Minimum Box Depth – 25mm
  • box depth for extra wiring space minimum – 35mm
  • *For compliance to BS 1363 use a 35mm back box
  • Can charge a device at up to a full 2A
  • If only one device is connected to a USB outlet the total output current of 2A is available from either outlet
  • If two devices are connected to USB outlets the total rated current of 2A is divided between the two outlets
  • If the total charging current exceeds the rated level of 2A then the device will enter a current limiting safety mode
  • Electronically protected against an overload or short circuit on either USB outlet
  • USB outlets are designed to provide optimum charging compatibility across a wide range of devices


Full Details and Specification
Product Code
Price (ex VAT)
Price (inc VAT)
product photo
MK K2744

13A Twin DP Switched Socket with 2 x USB - 2.0A Shared
