In-line 4G Filter c/w Coax Connections - Approved at8005050171058619F4GAHS

Removes TV interference caused by 4G mobile phone signals
coax connectors. "at800" approved.
In-line 4G Filter c/w Coax Tv Connections
Approved at800
Why filters are needed and why SLX/Labgear filters are ideal for the job

Fact: The UK Digital Switchover was planned to clear frequencies for future technologies between Ch63 – 68.
But in 2008 the standard for 4th Generation Long Term Evolution (4G LTE800) devices was agreed which used Ch61 and 62.
This has created a very tight space for these new technologies and a higher risk of interference.

Fact: Ofcom estimate that almost 10% of homes (2.4Million) will be affected by interference to their DTT reception
because they are close to a mobile mast carrying 4G and are either:
Receiving DTT on Ch59 or 60 and getting adjacent channel interference (approx 37%)
or they have a UHF amplifier (or 5-wire multi-switch) in their TV system (approx 63%)

Fact: To prevent interference from 4G LTE800 transmitters:
You need a filter with a sharp cross-over from the pass-band to the stop-band
You need a filter with VERY high rejection across the whole 4G LTE800 frequency range

SLX/Labgear 4G filters have been specifically designed to meet the above requirements.
They pass signals in the 462-782MHz range and reject signals across 791-862MHz range with an average rejection level of -55dB.
  • Removes TV interference and channel loss caused by 4G mobile phone signals
  • Simply plugs in between the aerial and TV or set top box
  • Official "at800" approved 4g Filter
  • Coax connectors
  • No Power Required
  • Filters any frequency above 790MHz
  • Technical Spec:
  • Removes TV interference caused by 4G mobile phone signals
  • Pass Band: 5 - 782MHz Av. Insertion Loss: <-1dB
  • Stop Band: 791-862MHz Av. Rejection: >50dB
  • Impedance: 75 Ohm
  • Connectors: IEC60169-2 Coax
  • Fly lead: Included

Technical:

Instructions - FV400 - 840kb

Order Code
Description
Price (ex VAT)
Price (inc VAT)
Quantity

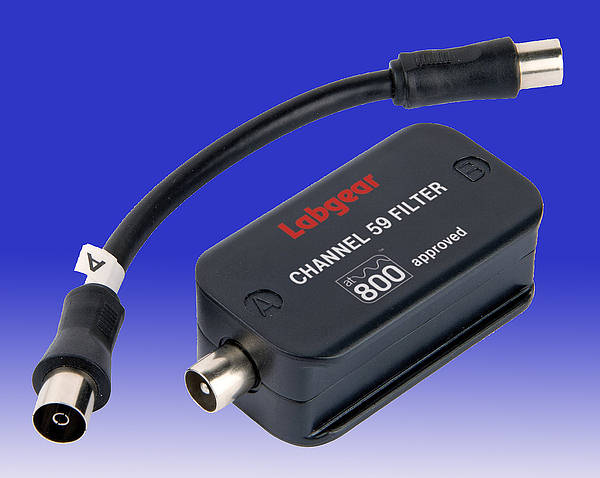

product photo

MX F4GAHS

In-line 4G Filter c/w Coax Connections - Approved at800

EA

EA 3+

£6.15

£5.75

EA

EA 3+

£7.38

£6.90
