4 in 1 IR Dome Camera 720P 1.0MP - Grey IP66 - 30Mtr - 2.8mm - 12.0mm Lens - Discontinued

Please try BNC CCTV Dome Cameras for alternative products.

4 in 1 IR Dome Camera 720P 1.0MP - Grey IP66 - 30Mtr - 2.8mm - 12.0mm Lens0TVI-ED720VG/A

Loading …

"4 in 1" camera.

It has the option to be used in four different analogue video modes. HD-TVI is the default setting, switchable (built in joystick button) to HD-CVI, AHD or standard definition CVBS mode.
Built in OSD menu, for access to the cameras default image settings. you can access the camera menu from the DVR via standard coaxial cable.
4 in 1 IR Dome Camera
720P 1.0MP
2.8mm - 12.0mm Varifocal Lens
Grey IP66 - 30Mtr

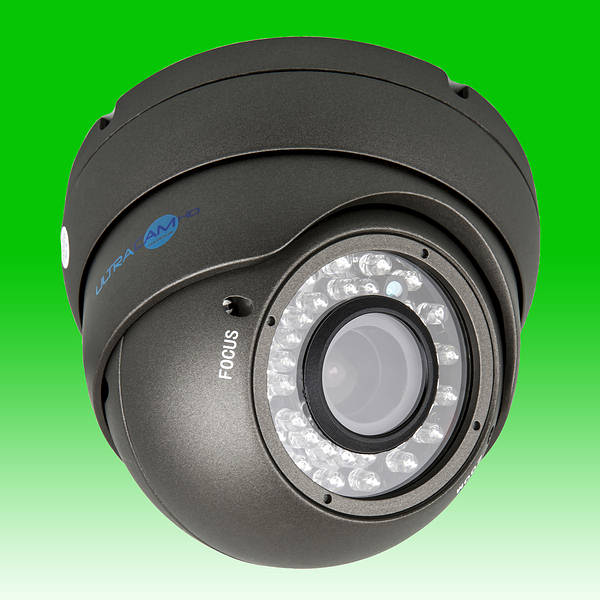

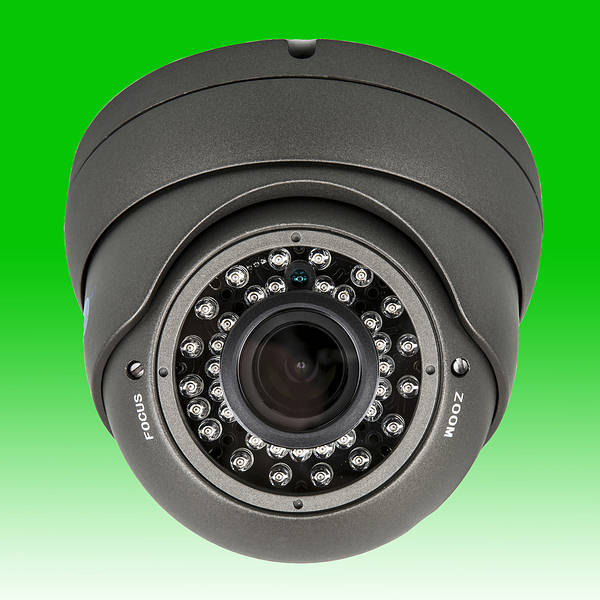

The ED720VG/A is a 1.0MP HD720p analogue colour “eyeball” dome CCTV camera.
It is housed in a vandal resistant metal grey casing and has an IP66 ingress protection rating,
making it suitable for both internal and external applications.
It is fitted with a manual focus 2.8 – 12.0mm varifocal lens which allows you to fine tune the camera in order to achieve the perfect image.
It also has IR LEDs which automatically turn on when the surrounding light levels drop below 10 lux.
This allows the camera to still view up to 30M (in a black and white image) whilst in the dark.
Its 3 axis design also means that this camera can be both ceiling and wall mounted making it a versatile favourite amongst installers.
  • Analogue High Definition / CVBS video output.
  • "4 in 1" camera with optional HD-TVI / HD-CVI / AHD & CVBS modes.
  • Camera is pre-set in HD-TVI video output mode.
  • Video output mode is changeable via built in switch in camera cable.
  • HD720p image resolution.
  • 1.0MP CMOS image sensor.
  • DNR (Digital Noise Reduction)
  • OSD (On Screen Display / Menu)
  • UTC (Up The Coax)
  • 2.8 - 12.0mm manual varifocal lens.
  • "Eyeball" style dome camera.
  • Vandal resistant, metal casing in grey.
  • IP66 ingress protection rating for internal or external use.
  • "Smart" IR LEDs allow the camera to view (in B+W) up to 30M in the dark.
  • Dual glass, hoop / ring design which prevents IR LED glare.
  • 3 axis design allows for both ceiling and wall mounting.
  • Supplied with a 2.1mm power connector.
  Order Code Description Price (ex VAT) Price (inc VAT) Quantity
product photo TS ED720VG 4 in 1 IR Dome Camera 720P 1.0MP - Grey IP66 - 30Mtr - 2.8mm - 12.0mm Lens
