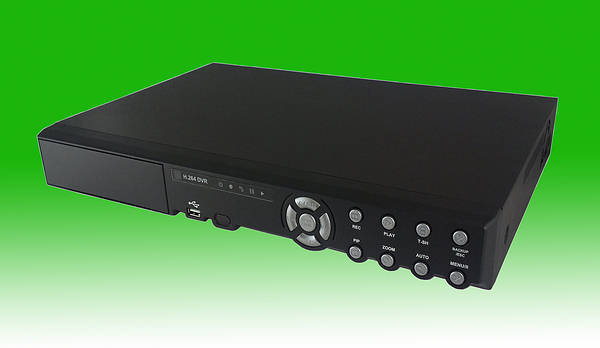

4 Channel 960H DVR
DVD & USB Back Up - 1TB HD
Our new range of DVRs offers you the option to record in 960H resolution,
which is currently the highest resolution available for use with Analogue CCD CCTV cameras.
This new extended range now consists of 4, 8 and 16 channel DVRs with either a USB only or a DVD+USB back up facility.
The USB only DVRs are housed in a smaller compact casing and record in 960H resolution at 12.5FPS (Half Real Time).
Whilst the DVD+USB DVRs are housed in a larger casing and record in 960H resolution at 25FPS (Real Time).
All of these versions use the same menu, software, mobile phone apps (for viewing via your smart phone*)
and CMS (central management software) which allows you to connect and view up to 16 DVRs* at the same time over the internet.
They all have HDMI, VGA and BNC video outputs and are supplied with a free of charge mouse controller.
However, the main selling point to this new range is the facility to record in the high definition 960H resolution.
At present most high resolution analogue CCTV cameras (CCD 700TVL+) use 960H technology.
However to get the true benefit of 960H cameras, you should use them with 960H recorders.
Many of the analogue recorders currently being sold only use D1 resolution
which is approximately 30% smaller than 960H, which means you lose 30% of your image on playback.
4 channel H.264 network DVR
- 960H resolution recording option
- Records up to 100FPS in 960H resolution (REAL TIME)
- Fitted with a CCTV specific Western Digital AV Purple 1TB HDD
- Smart phone enabled monitoring via Wi-Fi and 3G
- Compatible with Windows XP / Vista / 7 & Mac OS X
- HDMI, VGA (max 1920 x 1080) BNC Main & BNC Spot video outputs
- 2 x USB ports to allow mouse control and back up simultaneously
- Data back up via DVD RW / compatible USB 2.0 Flash Drive / network / internet
Live display, record, back up, play back and network simultaneously
- 4 channel RCA audio inputs
- Individual setup of frame rate, resolution and video quality per channel
- Covert camera(s) facility
- Connect up to 16 DVRs via free CMS software provided
- Event triggered e-mail notification
- PTZ camera control function
- Supplied with an IR remote control
- Supplied with a mouse controller
- 2 year warranty (T & C's apply)
