V-PRO Dimmer Range

Per Gang
LED's
Min Load: 0 watts LED

Max Load: - 120 watts

Max Halogen Load: - 200 watts

Max Incandescent Load 250 watts
Varilight V-Pro IR
2 x 250w 2 Way Master Remote Touch Dimmer Switch
White
The V-Pro™ dimmer range features intelligent overload protection, short circuit protection and,
most importantly, an adjustable minimum brightness and a choice of dimming modes
so that it can be used with lamps which require leading or trailing edge dimming.
This makes the dimmer extremely versatile because it is equipped to deliver
the best possible dimming performance from a given lighting load.

V-Pro™ dimmers are suitable for 0 - 100W of LED lighting (1 - 10 LEDs), Varilight DigiFlux dimmable CFLs,
electronic low voltage transformers, mains halogen and traditional mains GLS lighting.
The dimmers also feature soft start to improve lamp life and totally silent operation.

You can dim the lights using touch control or by a remote control handset.
The V-Pro IR master dimmer switches are one way
but can be used in conjunction with V-Pro IR slave units

in a multi-way circuit (including intermediate and 2 way)
so that the lights can be dimmed from more than one location.

In this type of circuit you should use one V-Pro IR master dimmer and any number of V-Pro IR slave units
with three wires directly connecting each switch (as is usual in a 2 way circuit).

The low-priced V-Pro IR slave units are not dimmer switches
and cannot be used on their own without a master dimmer.
  • Soft start to extend lamp life Saves energy
  • Steps down output under partial overload,
  • Switches off under gross overload, protecting components and extending product life.
  • Normal operation resumes once load is corrected.
  • iQ intelligent control of awkward loads
  • Push-on / Push-off 2 Way switching
  • Specifically for use on the primary circuit of low voltage lighting transformers.
  • Any combination of transformers up to the maximum rating may be connected
  • Automatic self-resetting overload protection
  • Automatic self-resetting thermal protection
  • How to Program Varilight V-Pro Dimmers
  • Suitable for
    Incandescent GLS Lamps
    Candle, Golf Ball etc
    12V Dichroic lamps (best with Telco premium low voltage transformers)
    Mains Halogen (GU10 Etc)
    Varilight Dimmable CFL
    Leading Edge Dimming Loads
    Trailing Edge Dimming Loads
    Other Dimmable CFL (subject to manufacturers Guidelines)
    Dimmable Mains LED
    Very low wattage loads
  • Not Suitable for
    Dimmable Ballast
    Fluorescent Tubes
    Wire Wound Low Voltage (or other inductive Load)

Technical:

Dimmer Selection Guide .PDF (200kb) Dimmer Instructions - pdf 63kb FAQ - Trouble Shooting

Product Code
Description
Price (ex VAT)
Price (inc VAT)
Quantity

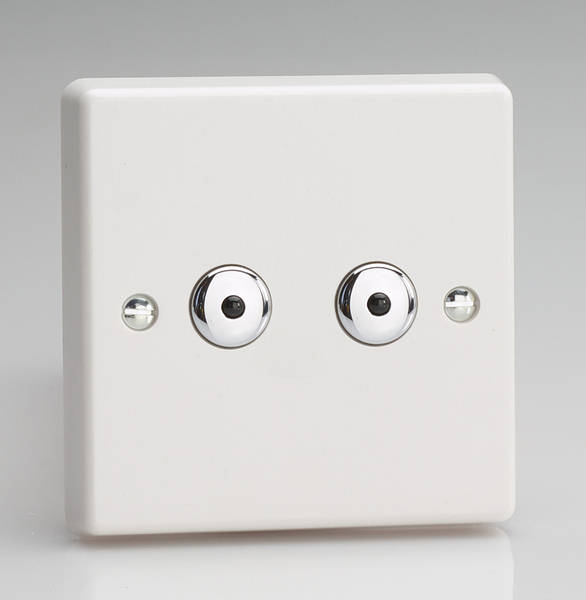

product photo
VL JQI252

2 x 250w 2 Way V-PRO Master Remote Touch Dimmer Sw- White
