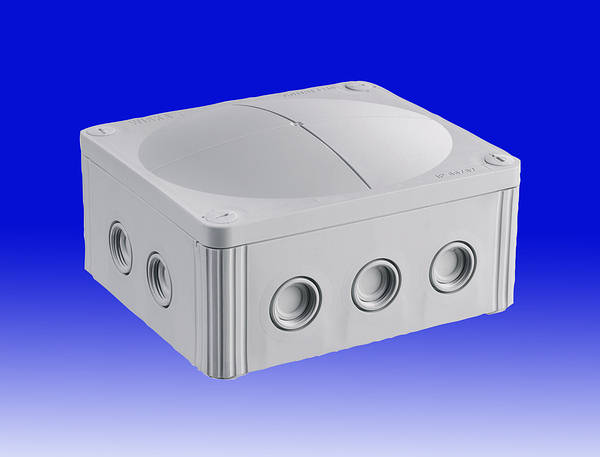

57 Amp Wiska 1210 Junction Box 160 x 140 x 81mm - Grey IP66/6740076850166361210/5 Grey

Loading …

Terminal Cable Capacity

8 x 4.0mm
6 x 6.0mm
3 x 10.0mm

Optional Magic Sealing Gel
The sealing technique ensures a high life expectancy even under permanent influence of moisture

IP 68 up to a water depth of 15 meters according to DIN EN 60529

Description

Wiska Box IP66
160 x 140 x 81mm - Grey
57 Amp

Captive quick release screws that can't be lost.
The quick-release lid screws made of plastic will not rust and stay
securely in place just where they belong - in the WISKA COMBI Box.

Good to look at
The 'Designer Box'. The WISKA COMBI with its unmistakeable
'bellied' lid provides the utmost in visual and functional perfection.
Now you can install with system AND with style.

IP 66/67 - EN 60 529
Flame Protection: Glow wire test 750C acc. To EN 60695-2-11
Temperature: -30C up to 100C
Voltage: 690V
There are 10 threaded 20mm entries on the unit with pierceable membrane. These can also be knocked out for use with 25mm gland and locknut
Material: Polypropylene, reinforced
Terminal: 5 pole (10mm)
IP 66 membrane entries

10% more room inside, thanks to the bellied cover
30% saving on labour thanks to faster cable-entry
captive quick-release lid screws
Strong
Stable, safe and secure. The WISKA COMBI with its high IP 66 Degree of Protection is weather-proof, impact-resistant and shatter-proof. Eminently suitable for extreme conditions or for outdoor installations.
All WISKA COMBI Boxes are flame-retardant, halogen free, and are highly resistant to animal or vegetable fats, mineral oil, diesel, weak acids, strong and weak alkaline solutions, or alcohol.

Technical

IP Rating Chart

Technical:

IP Rating Chart

WK 1210G

57 Amp Wiska 1210 Junction Box 160 x 140 x 81mm - Grey IP66/67

EACH	2+
£13.85	£12.55

EACH	2+
£16.62	£15.06
