32A Wiska 310 Junction Box LS0H 118x85x51mm + 3 Wago 413C - Black IP66/67
Product Code: WK 310/221B
4007686314892
10113411
Loading …
The sealing technique ensures a high life expectancy even under permanent influence of moisture
Empty Box Volume: 300ml
IP68 up to a water depth of 15 meters according to DIN EN 60529
Wiska Box - IP66/67 - LS0H
118 x 85 x 51mm Black
c/w 3 Wago 221-413C
118 x 85 x 51mm Black
c/w 3 Wago 221-413C

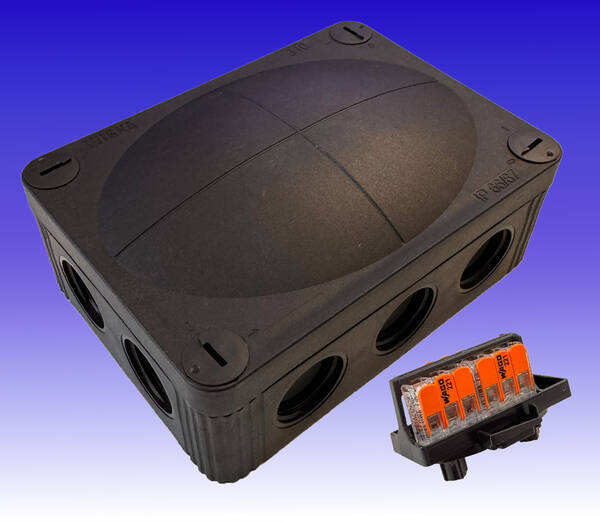

Measuring just 118 x 85 x 51mm, the COMBI 310 offers generous internal space for
connections — including an extra 10% belly space compared to similar enclosures.
Rated IP66/67 for superior protection against dust, dirt and water, it features 10 x M20
threaded membrane entries — with 3 x M20 entries on either side for versatile cable access
— plus 4 rear membrane entries for even greater installation flexibility.
Constructed from halogen-free, flame-retardant polypropylene with a twin-shot TPE seal, the
COMBI 310 is built for maximum durability and long-term performance. Its quarter-turn, self-
retaining lid screws make installation fast and frustration-free, while outstanding corrosion
resistance ensures reliability in the harshest environments.

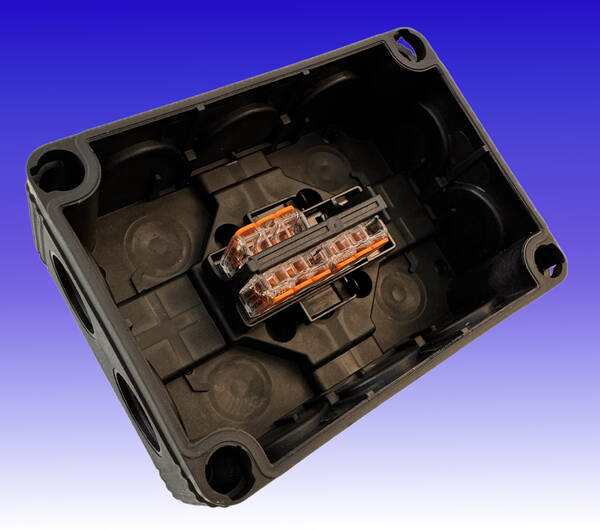

Available pre-fitted with 3 x 3 Pole WAGO 221 Lever Connectors, and offered in
black, grey, or white to suit any project or aesthetic.
connections — including an extra 10% belly space compared to similar enclosures.
Rated IP66/67 for superior protection against dust, dirt and water, it features 10 x M20
threaded membrane entries — with 3 x M20 entries on either side for versatile cable access
— plus 4 rear membrane entries for even greater installation flexibility.
Constructed from halogen-free, flame-retardant polypropylene with a twin-shot TPE seal, the
COMBI 310 is built for maximum durability and long-term performance. Its quarter-turn, self-
retaining lid screws make installation fast and frustration-free, while outstanding corrosion
resistance ensures reliability in the harshest environments.
Available pre-fitted with 3 x 3 Pole WAGO 221 Lever Connectors, and offered in
black, grey, or white to suit any project or aesthetic.
- Waterproof junction box up to 4mm² (32A)
- 118 x 85 x 51mm
- 10 elastic self-sealing cable-inlets (clamping range 3-12mm)
- Integrated M20 threads for cable glands - no locknuts necessary
- 4 quick-release lid screws in the cover
- Fixing with the fast mounting clip or
internally located openings out of the sealing area - Includes terminal carrier on quick mounting plate mounted
with 3 x WAGO 221-413
- 10% more room inside thanks to the bellied cover
- 30% saving on labour thanks to faster cable-entry
- Strong
Stable, safe and secure. The WISKA COMBI with its high IP66/67 degree of protection is weatherproof, impact-resistant and shatter-proof. Eminently suitable for extreme conditions or for outdoor installations - All WISKA COMBI Boxes are flame-retardant, halogen free, and are highly resistant to animal or vegetable fats, mineral oil, diesel, weak acids, strong or weak alkaline solutions, and alcohol
The sealing technique ensures a high life expectancy even under permanent influence of moisture
Empty Box Volume: 300ml
IP68 up to a water depth of 15 meters according to DIN EN 60529
Technical:COMBI 310 Booklet - 840kb pdf IP Rating Chart Wiska Gel Solutions.pdf 850kb |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
WK 310/221B
32A Wiska 310 Junction Box LS0H 118x85x51mm + 3 Wago 413C - Black IP66/67 |
