4.6.3 - Colours for flexible cables and cords

Unlike the cores of fixed cables, which may be identified by sleeves or tapes where they are connected, flexibles must be identified throughout their length. The colour requirements are shown in {Fig 4.22}.

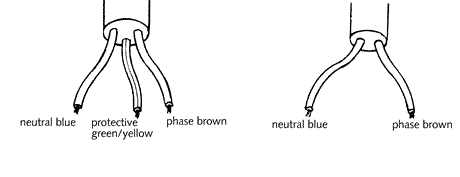

Fig 4.22 Care colours for flexible cables and cords
