EasySwitch Wireless Switch System
Easy Installation - No Wiring
Multi Purpose - No Redecorating - Secure Coding
Radio Remote Controlled
250m Range
Receivers
Easy Installation - No Wiring
Multi Purpose - No Redecorating - Secure Coding
Radio Remote Controlled
250m Range
Receivers
Fit wall switches virtually anywhere to control lighting and electrical devices without running wires.
Just imagine, no cables, no making good and no redecoration, It’s easy….
The easySWITCH SYSTEM utilises a highly developed coded technique to ensure excellent transmission range and reliability.
Each transmitter has it’s own unique identifying code which can be learnt by the receiver.
This means there are no complicated code switches to set.
With 64,000 code combinations, the likelihood of duplication is remote.
-
Three types of receiver
(ON/OFF, Buzzer and Plug Adaptor).
- See each product
| See product for Accessories and Batteries |
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
EasySwitch 8+8 Channel - On / Off Receiver - Weatherproof
Loading …
LM ESR8
LM AE434
EasySwitch Wireless Switch System
Easy Installation - No Wiring
Multi Purpose - No Redecorating - Secure Coding
Radio Remote Controlled
250m Range
Receivers
Easy Installation - No Wiring
Multi Purpose - No Redecorating - Secure Coding
Radio Remote Controlled
250m Range
Receivers
8+8 zone Wireless Receiver
The ESR8+8 is a wireless receiver designed to work with Easyswitch transmitters and PIR detectors. Supplied with 8 zones as standard, a further 8 zones can be added using an ESEM8 module to provide the maximum of 16 zone outputs.

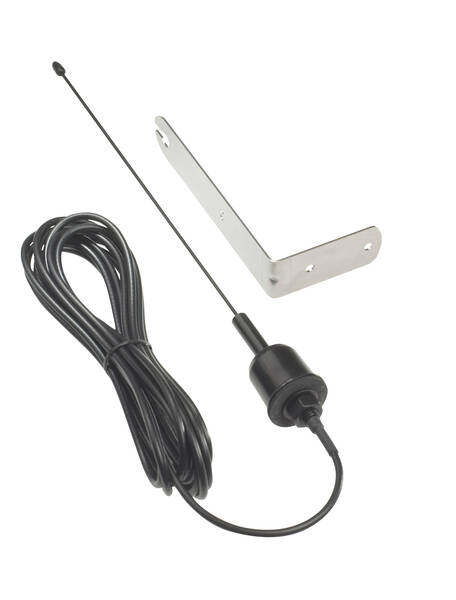

ESD Easyswitch Wireless PIR Detectors will operate up to 500m from the receiver and are ideal for integration with CCTV systems that are to be event driven. NB: Longer ranges in excess of 500m require an alternative external antenna (AE434).
The receiver has 8 volt free relays which are conveniently brought out to screw terminals along the front edge of the circuit board and the expander board ESEM8 has the same features.
An external inhibit feature can be used to disable the alarm relays in groups or globally. Inhibit is also possible by using an ESF1 Key Fob and an ESEM8 module but it will reduce the number of outputs to 15.
There are two additional relays which can be programmed to provide a grouped or global alarm output as well as day/night and global or grouped inhibit as required.
Easy programming is facilitated by way of an LED display and programming buttons. EPROM me
The ESR8+8 is a wireless receiver designed to work with Easyswitch transmitters and PIR detectors. Supplied with 8 zones as standard, a further 8 zones can be added using an ESEM8 module to provide the maximum of 16 zone outputs.
ESD Easyswitch Wireless PIR Detectors will operate up to 500m from the receiver and are ideal for integration with CCTV systems that are to be event driven. NB: Longer ranges in excess of 500m require an alternative external antenna (AE434).
The receiver has 8 volt free relays which are conveniently brought out to screw terminals along the front edge of the circuit board and the expander board ESEM8 has the same features.
An external inhibit feature can be used to disable the alarm relays in groups or globally. Inhibit is also possible by using an ESF1 Key Fob and an ESEM8 module but it will reduce the number of outputs to 15.
There are two additional relays which can be programmed to provide a grouped or global alarm output as well as day/night and global or grouped inhibit as required.
Easy programming is facilitated by way of an LED display and programming buttons. EPROM me
| See product for Accessories |
Technical:LMESR8 + ESM8 Instructions - pdf 132Kb Datasheet - 274mb Instructions - 480mb |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
EasySwitch Wireless Switch System
Loading …
EasySwitch Wireless Switch System
Easy Installation - No Wiring
Multi Purpose - No Redecorating - Secure Coding
Radio Remote Controlled
250m Range
Transmitters
Easy Installation - No Wiring
Multi Purpose - No Redecorating - Secure Coding
Radio Remote Controlled
250m Range
Transmitters
Fit wall switches virtually anywhere to control lighting and electrical devices without running wires.
Just imagine, no cables, no making good and no redecoration, It’s easy….
The easySWITCH SYSTEM utilises a highly developed coded technique to ensure excellent transmission range and reliability.
Each transmitter has it’s own unique identifying code which can be learnt by the receiver.
This means there are no complicated code switches to set.
With 64,000 code combinations, the likelihood of duplication is remote.
-
Three types of transmitter
(Wall switch, PIR and KeyFob)
- See each product
| See product for Replacement Batteries, Batteries and Accessories |
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
EasySwitch Wireless One Button Key Fob - Transmitter --- Price Drop --- |
|

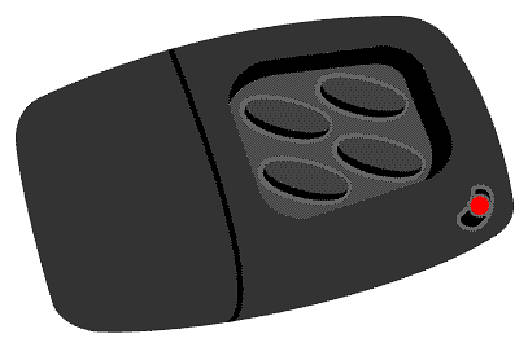

EasySwitch Wireless Four Button Key Fob - Transmitter --- Price Drop --- |
EasySwitch Wireless Switch System
Loading …
EasySwitch Wireless Switch System
Easy Installation - No Wiring
Multi Purpose - No Redecorating - Secure Coding
Radio Remote Controlled
250m Range
Transmitters
Easy Installation - No Wiring
Multi Purpose - No Redecorating - Secure Coding
Radio Remote Controlled
250m Range
Transmitters

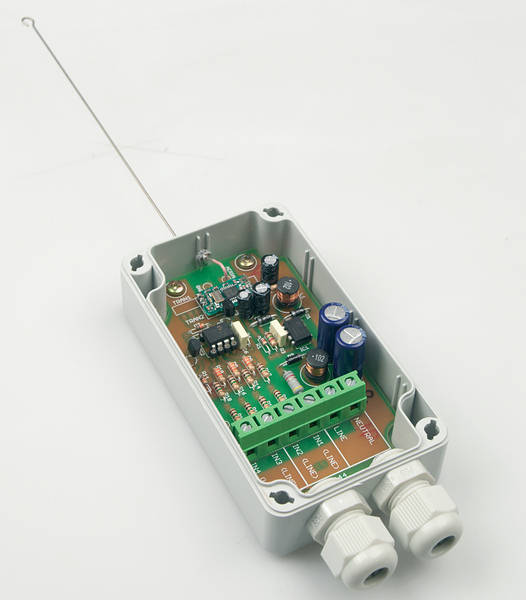

The EST4HVAC is the ideal wireless solution where mains cabling is difficult or impractical.
It is mains voltage powered and designed so that it can easily interface to various control devices that have mains signal outputs.
With four inputs this product is designed to work with the

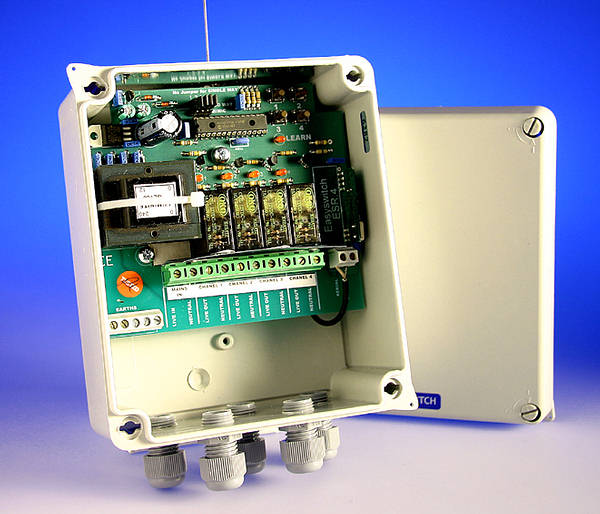

Easyswitch single (ESR1) or four circuit (ESR4) receivers to allow remote control
of up to four electrical circuits within a building or from one building to another.
Continuous transmission for reliable switching
| See product for Accessories |
Technical:Brouchure 1.7Mb pdf EST4HVAC Data 650Kb pdf EST4HVAC Instructions 450Kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|

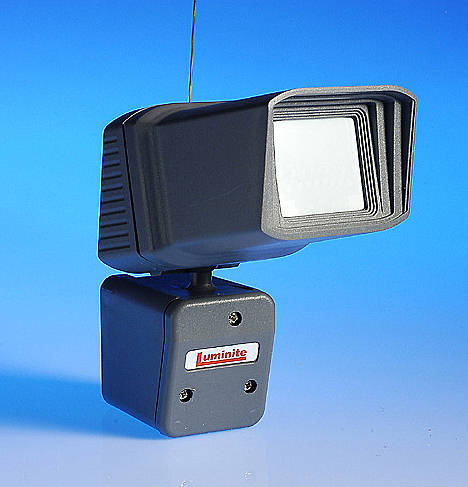

EasySwitch Pir Transmitters
Loading …
EasySwitch Pir
Transmitters
Transmitters
- Outdoor use IP65
- Day and night modes
- Up to 200m transmit ion range
- Highly secure digital FM code
- Powered by 9volt PP3 (not supplied)
- Licence exempt
- See each product
| See product for Accessories and Batteries |
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
EasySwitch Wireless Globe Style PIR - 30m Detection
Loading …
LM ESD30
EasySwitch
Wireless Globe Style PIR - 30m Detection
Wireless Globe Style PIR - 30m Detection

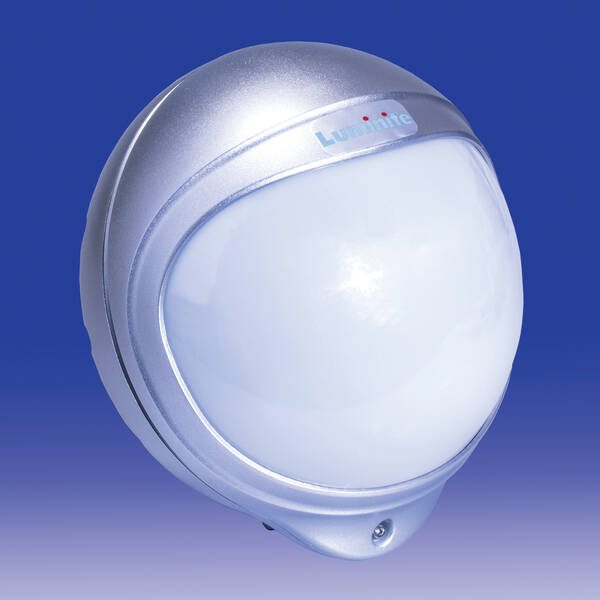

The ESD30 EasySwitch PIR detector joins the extensive range of EasySwitch wireless products
to provide a covert PIR detection range of up to 30 metres over a wide area.
This battery powered wireless PIR detector can transmit to any EasySwitch receiver
over a range of up to 500 metres (line of sight) to form part of a lighting or alarm system.
to provide a covert PIR detection range of up to 30 metres over a wide area.
This battery powered wireless PIR detector can transmit to any EasySwitch receiver
over a range of up to 500 metres (line of sight) to form part of a lighting or alarm system.
| See product for Batteries |
Technical:Data Sheet - pdf 950Kb Datasheet - 1.1kb Instructions - 419mb |
|
