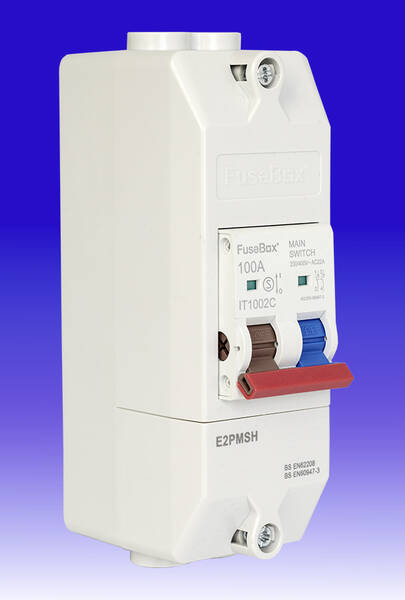

2 Pole 100A Main Switch Meter Isolator - IP20
Loading …
Height: 150mm
Width: 50mm
Depth: 83mm
See product for Meter Tails
FuseBox
2 Pole 100A Main Switch Meter Isolator - IP20
2 Pole 100A Main Switch Meter Isolator - IP20
- Number of poles: 2P
- Rated impulse withstand voltage: 6000V
- Rated current: 100A
- Rated voltage: 230V, 50Hz
- Mechanical endurance: 2000
- Protection degree: IP20
- Operating temperature: -25°C to 40°C
- Terminal size: 35mm²
- Tightening torque (Nm): 2.5Nm (main switch)
- Enclosure material: PC
Height: 150mm
Width: 50mm
Depth: 83mm
| See product for Meter Tails |
Technical:Datasheet - 530kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
2 Pole 100A Main Switch Meter Isolator c/w Type 2 SPD - IP20
Loading …
Height: 150mm
Width: 86mm
Depth: 83mm
See product for Meter Tails
FuseBox
2 Pole 100A Main Switch Meter Isolator c/w Type 2 SPD - IP20
2 Pole 100A Main Switch Meter Isolator c/w Type 2 SPD - IP20
- Number of poles: 2P
- Rated impulse withstand voltage: 6000V
- Rated current: 100A
- Rated voltage: 230V, 50Hz
- Mechanical endurance: 2000
- Protection degree: IP20
- Operating temperature: -25°C to 40°C
- Terminal size: 35mm²
- Tightening torque (Nm): 2.5Nm (main switch)
- Enclosure material: PC
-
Type 2 SPD:
- Standard: EN 61643-11 (Type 2)
- Flag indication: Green: Good / Red: Replace
- Technology: MOV (Metal Oxide Varistor) /GDT (Spark Gap)
- Voltage (Un): 230V~
- System: TN-C-S, TN-S, TT
- Terminal capacity: L: 16mm² N/PE : 10mm²
- Recommended torque: L: 2.5Nm /PE 1.2Nm / N 1.2Nm
- Maximum operating voltage (Uc): L-PE 275V; N-PE 255V
- Nominal discharge current: (In 8/20µs) 20kA
- Maximum discharge current: (Imax 8/20µs) 40kA
- Voltage protection level: L-PE =1.5kV ; N-PE =1.3kV
- Response time (tA): =25ns
- Maximum back up fuse: 100A fuse gG
- Short circuit withstand (IsccR): 25kA
- Temporary overvoltage (UT): 335V/5 sec - withstand
Height: 150mm
Width: 86mm
Depth: 83mm
| See product for Meter Tails |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Split Lid Enclosure c/w DIN Rail - IP20
Loading …
FB E2
FB E4
See product for Control Devices
FuseBox
Split Lid Enclosure c/w DIN Rail - IP20
Split Lid Enclosure c/w DIN Rail - IP20
Empty enclosure with DIN rail for housing RCD's, contactors, and other control devices.
| See product for Control Devices |
Technical:Datasheet - 530kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|

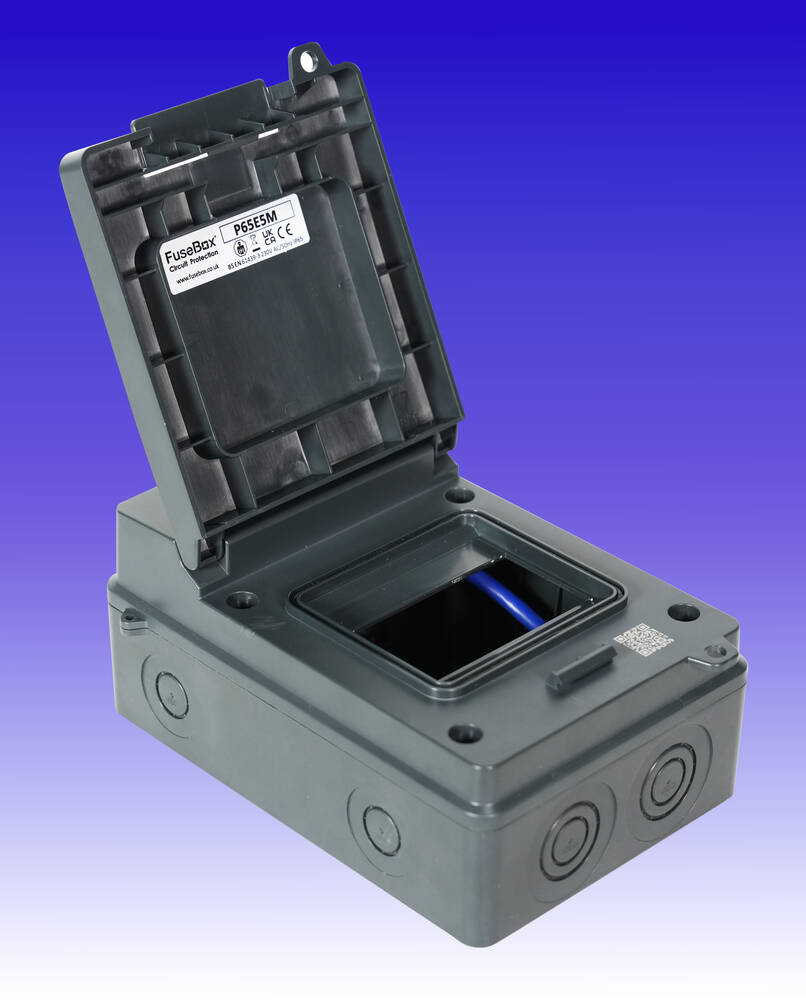

FuseBox ABS Enclosure - IP65
Loading …
See product for Accessories, AFDDs, Cable Entry Glands, Contactors, Main Switch, MCBs, RCBOs, Surge Protection and Timer
FuseBox
ABS Enclosure - IP65
ABS Enclosure - IP65
Weatherproof enclosure including terminal bars, Neutral cable, busbar & circuit identification labels.
Suitable for external applications where a larger enclosure is needed for additional circuits such as additional EV charger supplies, outdoor lighting, pond pumps etc.
Suitable for external applications where a larger enclosure is needed for additional circuits such as additional EV charger supplies, outdoor lighting, pond pumps etc.
- 100A rated busbar
- ABS construction - IP65 rated
- IK07 impact protection
- Captive stainless steel front cover screws
- Padlockable front cover
- Wire seal for front cover on left and right side
- Shrouded N/E terminals
- Drill outs on top/bottom/sides/rear: 20-32mm (expandable)
- No tail clamp provided, DIN rail pre-drilled
| See product for Accessories, AFDDs, Cable Entry Glands, Contactors, Main Switch, MCBs, RCBOs, Surge Protection and Timer |
Technical:IP65 Enclosures Datasheet - 840kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
FuseBox 6 Module Aluminium Consumer Unit - IP65
Loading …
FB A65E06MGY
FB A65E06MWH
Height: 269mm
Width: 182mm
Depth: 102mm
See product for Accessories, AFDDs, Cable Entry Glands, Contactors, Main Switch, MCBs, RCBOs, Surge Protection and Timer
FuseBox
6 Module Aluminium Consumer Unit - IP65
6 Module Aluminium Consumer Unit - IP65
FuseBox introduces its latest innovation – the IP65 series of consumer units – designed to deliver robust environmental protection in both internal and external applications. These units are ideal for installations where resistance to dust and moisture is crucial, ensuring maximum safety against electrical hazards, such as shocks and equipment damage.
The IP65 rating makes these units the perfect solution for high-humidity indoor environments, such as laundrettes or factory workshops, and provides reliable protection in outdoor locations such as residential garages and EV charging installations.
The IP65 rating makes these units the perfect solution for high-humidity indoor environments, such as laundrettes or factory workshops, and provides reliable protection in outdoor locations such as residential garages and EV charging installations.
- 6 usable ways
- IP65 rated
- Earth and neutral terminal bars at the top
- Removable and raised DIN rail
- 20mm round knock-outs on all faces
- Complete with circuit identification label pack
- Aluminium construction, powder coated finish
- Captive front cover screws
- Complete with tail clamp which can be fitted in two positions depending on configuration
- Base and front cover can be sealed with wire tag for security
- Extra height enclosure, suitable for standard RCBOs and AFDDs
Height: 269mm
Width: 182mm
Depth: 102mm
| See product for Accessories, AFDDs, Cable Entry Glands, Contactors, Main Switch, MCBs, RCBOs, Surge Protection and Timer |
Technical:Datasheet - 375kb pdf |
|
