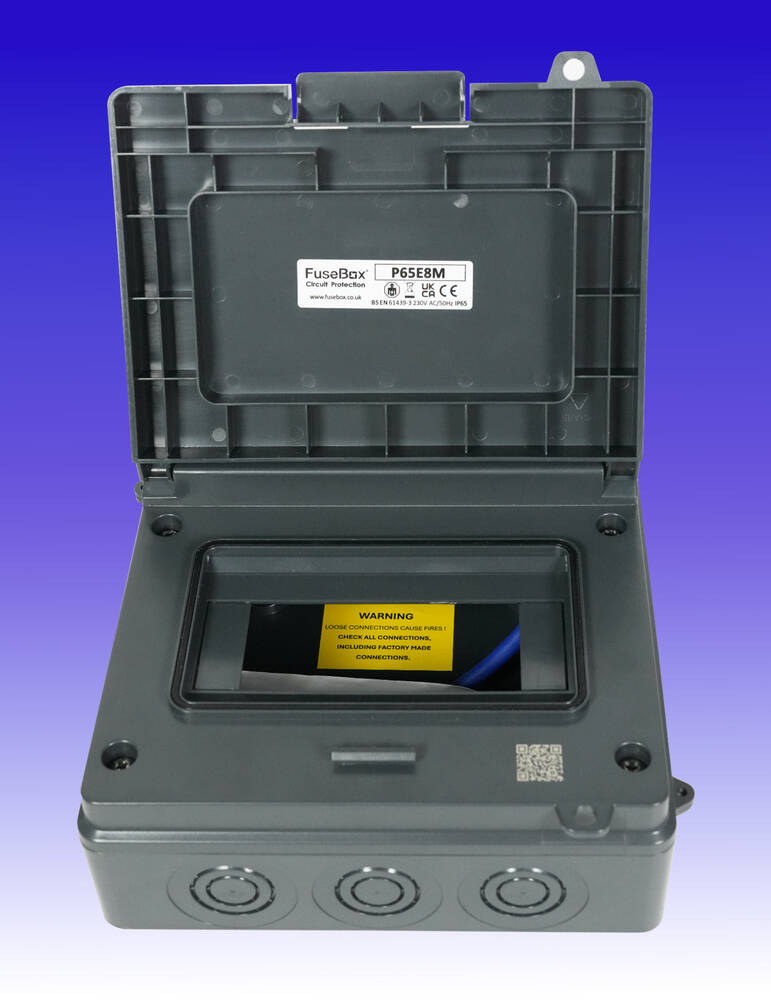

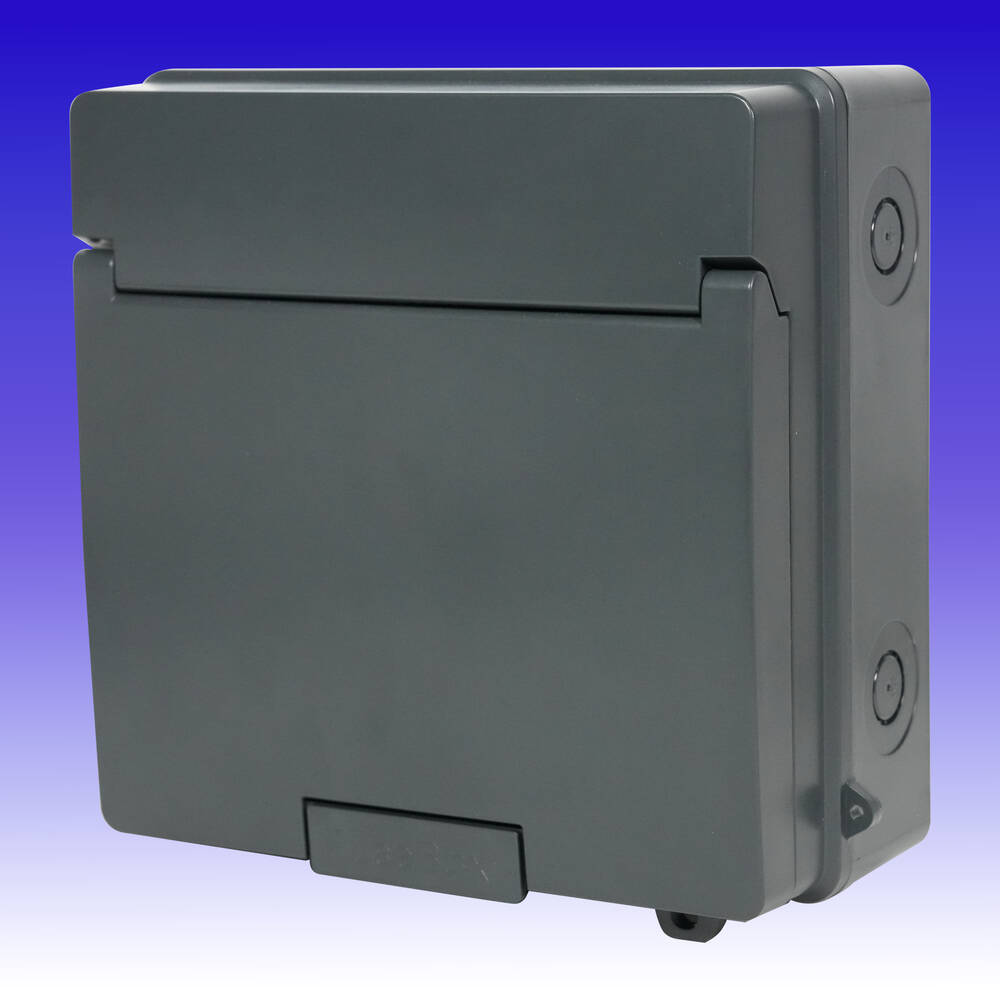

8 Module ABS Enclosure - IP65
Product Code: FB P65E8M
5060523529353
P65E8M
Loading …
Height: 223mm
Width: 234mm
Projection: 100mm
FuseBox
8 Module ABS Enclosure - IP65
8 Module ABS Enclosure - IP65
8 module enclosure including terminal bars, Neutral cable, busbar & circuit identification labels.
Suitable for external applications where a larger enclosure is needed for additional circuits such as additional EV charger supplies, outdoor lighting, pond pumps etc.
Suitable for external applications where a larger enclosure is needed for additional circuits such as additional EV charger supplies, outdoor lighting, pond pumps etc.
- 8 module enclosure
- 100A rated busbar
- ABS construction - IP65 rated
- IK07 impact protection
- Captive stainless steel front cover screws
- Padlockable front cover
- Wire seal for front cover on left and right side
- Shrouded N/E terminals
- Drill outs on top/bottom/sides/rear: 20-32mm (expandable)
- No tail clamp provided, DIN rail pre-drilled
Height: 223mm
Width: 234mm
Projection: 100mm
Technical:IP65 Enclosures Datasheet - 840kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
FB P65E8M
8 Module ABS Enclosure - IP65 |
FuseBox 100A DP Main Switch
Loading …
FuseBox
100A DP Main Switch
100A DP Main Switch
100A Double Pole 2 Module Main Switch for FuseBox consumer units.
- Number of poles: 2
- Rated breaking capacity: 6kA
- Rated current: 100A
- Terminal capacity: 35mm²
- Standards: IEC/EN 60947-3
Technical:Datasheet - 210kb pdf FuseBox Brochure - 7mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
FuseBox MCB - B Curve
Loading …
See product for Accessories
FuseBox
B CURVE MCB 6kA 1P
B CURVE MCB 6kA 1P
6kA MCB for FuseBox consumer units.
Manufactured and tested to EN/IEC 60898-1 standards.
Manufactured and tested to EN/IEC 60898-1 standards.
- Cable capacity: 16mm²
- Breaking capacity: 6kA
- B curve
| See product for Accessories |
Technical:Datasheet - 230kb pdf FuseBox Brochure - 7mb pdf MCB Datasheet - 275kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
FuseBox MCB - C Curve
Loading …
FuseBox
C CURVE MCB 6kA 1P
C CURVE MCB 6kA 1P
6kA MCB for FuseBox consumer units.
Manufactured and tested to EN/IEC 60898-1 standards.
Manufactured and tested to EN/IEC 60898-1 standards.
- Cable capacity: 16mm²
- Breaking capacity: 6kA
- C curve
Technical:FuseBox Brochure - 7mb pdf MCB Datasheet - 300kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
FuseBox 30mA RCBO - (Type A) B Curve
Loading …
See product for Accessories
FuseBox
30mA RCBO - Type A
B Curve
30mA RCBO - Type A
B Curve
6kA Type A RCBO for FuseBox consumer units.
Manufactured and tested to EN/IEC 61009-1 standards.
Manufactured and tested to EN/IEC 61009-1 standards.
- Sensitivity: 30mA
- Cable capacity: 16mm²
- Breaking capacity: 6kA
| See product for Accessories |
Technical:Datasheet - 230kb pdf FuseBox Brochure - 7mb pdf RCBO Datasheet - 300kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
FuseBox 30mA RCBO - (Type A) B Curve - Compact - Bi-directional
Loading …
See product for Accessories
FuseBox
30mA RCBO - Type A
B Curve - Compact - Bi-directional
30mA RCBO - Type A
B Curve - Compact - Bi-directional
Compact Bi-directional RCBO with switched LINE and NEUTRAL.
Used for the protection against overload, short circuit and earth leakage in solar applications, or where current flows in both directions. Type A for AC and pulsating DC sensitivity with a short circuit capacity of 6kA.
Compact in size, increasing working space within a FuseBox consumer unit making installation,
connection and testing easier and quicker.
Flying Neutral cable can be cut to suit but should be terminated.
Used for the protection against overload, short circuit and earth leakage in solar applications, or where current flows in both directions. Type A for AC and pulsating DC sensitivity with a short circuit capacity of 6kA.
Compact in size, increasing working space within a FuseBox consumer unit making installation,
connection and testing easier and quicker.
Flying Neutral cable can be cut to suit but should be terminated.
- Rating: 6A to 40A
- Tripping curve: B
- Number of poles: 1P + N (switched neutral)
- Residual operating current: 30mA
- Type: A
- Rated short circuit capacity: 6kA
- Maximum cable capacity: 16mm²
- Complies with IEC 61009-1 & IEC 61009-2-2
| See product for Accessories |
Technical:Compact BD RCBO Datasheet - 250kb pdf Datasheet - 230kb pdf FuseBox Brochure - 7mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
FuseBox 30mA RCBO - (Type A) C Curve - Compact - Bi-directional
Loading …
B curve shown
See product for Accessories
FuseBox
30mA RCBO - Type A
C Curve - Compact - Bi-directional
30mA RCBO - Type A
C Curve - Compact - Bi-directional
Compact Bi-directional RCBO with switched LINE and NEUTRAL.
Used for the protection against overload, short circuit and earth leakage in solar applications, or where current flows in both directions. Type A for AC and pulsating DC sensitivity with a short circuit capacity of 6kA.
Compact in size, increasing working space within a FuseBox consumer unit making installation,
connection and testing easier and quicker.
Flying Neutral cable can be cut to suit but should be terminated.
Used for the protection against overload, short circuit and earth leakage in solar applications, or where current flows in both directions. Type A for AC and pulsating DC sensitivity with a short circuit capacity of 6kA.
Compact in size, increasing working space within a FuseBox consumer unit making installation,
connection and testing easier and quicker.
Flying Neutral cable can be cut to suit but should be terminated.
- Rating: 6A to 40A
- Tripping curve: C
- Number of poles: 1P + N (switched neutral)
- Residual operating current: 30mA
- Type: A
- Rated short circuit capacity: 6kA
- Maximum cable capacity: 16mm²
- Complies with IEC 61009-1 & IEC 61009-2-2
| See product for Accessories |
Technical:Compact BD RCBO Datasheet - 250kb pdf Datasheet - 230kb pdf FuseBox Brochure - 7mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
FuseBox 100mA RCBO - (Type A) B Curve - Compact - Bi-directional
Loading …
30mA version shown
FuseBox
100mA RCBO - Type A
B Curve - Compact - Bi-directional
100mA RCBO - Type A
B Curve - Compact - Bi-directional
Compact Bi-directional RCBO with switched LINE and NEUTRAL.
Used for the protection against overload, short circuit and earth leakage in solar applications, or where current flows in both directions. Type A for AC and pulsating DC sensitivity with a short circuit capacity of 6kA.
Compact in size, increasing working space within a FuseBox consumer unit making installation,
connection and testing easier and quicker.
Flying Neutral cable can be cut to suit but should be terminated.
Used for the protection against overload, short circuit and earth leakage in solar applications, or where current flows in both directions. Type A for AC and pulsating DC sensitivity with a short circuit capacity of 6kA.
Compact in size, increasing working space within a FuseBox consumer unit making installation,
connection and testing easier and quicker.
Flying Neutral cable can be cut to suit but should be terminated.
- Rating: 16A to 40A
- Tripping curve: B
- Number of poles: 1P + N (switched neutral)
- Residual operating current: 100mA
- Type: A
- Rated short circuit capacity: 6kA
- Maximum cable capacity: 16mm²
- Complies with IEC 61009-1 & IEC 61009-2-2
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
FuseBox Bell Transformers
Loading …
FB ABTR
FuseBox
1A Bell Transformers 8-24V
1A Bell Transformers 8-24V
- Input voltage: 230V, 50Hz
- 35mm DIN rail mounting
- Torque (switch terminals): 1.5Nm
- Max. cable: 4mm²
- Power consumption: 0.9W
- Complies with EN 61558-2-8/ EN 61558-1
Technical:FBABTR Instructions - 220kb pdf Datasheet - 220kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
FuseBox Type 2 Direct to Busbar Surge Protection Device
Loading …
FuseBox
Type 2 Direct to Busbar Surge Protection Device
Type 2 Direct to Busbar Surge Protection Device
Type 2 Surge Protection Device, single module direct to busbar connection.
Also available factory fitted in FuseBox's new F3 range of SPD consumer units.
Also available factory fitted in FuseBox's new F3 range of SPD consumer units.
- Standard: EN 61643-11 (Type 2)
- Flag indication: Green: Good / Red: Replace
- Technology: MOV (Metal Oxide Varistor) /GDT (Spark Gap)
- Voltage (Un): 230V~
- System: TN-C-S, TN-S, TT
- Terminal capacity: L: 16mm² N/PE : 10mm²
- Recommended torque: L: 2.5Nm /PE 1.2Nm / N 1.2Nm
- Degree of protection: IP20
- Mounting: 35mm DIN rail
- Maximum operating voltage (Uc): L-PE 275V; N-PE 255V
- Nominal discharge current: (In 8/20µs) 20kA
- Maximum discharge current: (Imax 8/20µs) 40kA
- Voltage protection level: L-PE =1.5kV ; N-PE =1.3kV
- Response time (tA): =25ns
- Maximum back up fuse: 100A fuse gG
- Short circuit withstand (IsccR): 25kA
- Temporary overvoltage (UT): 335V/5 sec - withstand
Technical:T2 SPD Datasheet - 220kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
FuseBox Type 1, 2 & 3 Combined SPD (Surge Protection Device) Kit c/w 63A MCB
Loading …
FuseBox
Type 1, 2 & 3 Combined SPD (Surge Protection Device) Kit
c/w 63A MCB
Type 1, 2 & 3 Combined SPD (Surge Protection Device) Kit
c/w 63A MCB
T1, T2 & T3 combined Surge Protection Device (SPD) supplied complete with 63A B Curve MCB and 16mm² connecting cables (L,N&E) for quick and easy installation and features a replaceable cartridge.
Type 1 SPDs shall be installed as close as possible to the origin of
the electrical installation (main distribution board) 534.4.1.1
Type 1 SPDs shall be installed as close as possible to the origin of
the electrical installation (main distribution board) 534.4.1.1
- Kit comprises Type 1 ,2 & 3 SPD module + 63A MCB
- Double module width (36mm)
- Supplied with 16mm² E,N&L cables
- Din rail mounted
- Terminal capacity: 6mm² - 35mm²
- Response time: <100nS
- Installation instructions & device sticker included
- Replaceable cartridge
- Flag indication: Green = Good, Red = Replace
- Suitable for TN, TNC-S, TNC and TT systems
Technical:Datasheet - 500kb pdf FuseBox Brochure - 7mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
FuseBox - DP Mini AFDD Type A - 6kA
Loading …
FuseBox
30mA DP Mini AFDD / RCBO
B Curve - Type A
30mA DP Mini AFDD / RCBO
B Curve - Type A
FuseBox combined mini AFDD/RCBO (1P+N), switched.
- Fully compliant and 3rd party tested to BS EN 62606 / IEC 61009-1
- LED fault indication
- Fits all FuseBox consumer units
- Replaces any FuseBox RCBO where additional ARC protection may be required
- Used for the protection against ARC faults (series and parallel), overload, short circuit and earth leakage
- Type A for AC and pulsating DC sensitivity
- Short circuit capacity of 6kA with a maximum rating of 40A across the range
Technical:Datasheet - 6.12mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
FuseBox Contactors
Loading …
FBINC202
See product for Accessories
FuseBox
Contactors
Contactors
| See product for Accessories |
Technical:Datasheet - 410kb pdf Contactor Instructions - 3.7mb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
Heat-activated Aerosol Fire Extinguisher for Distribution Boards
Loading …
FuseBox
Heat-activated Aerosol Fire Extinguisher for Distribution Boards
Heat-activated Aerosol Fire Extinguisher for Distribution Boards
The FuseBox HA20D is a compact DIN rail mountable heat-activated aerosol fire extinguisher. This automatic fire suppression solution is designed to provide added protection inside consumer units, distribution boards and other small enclosed electrical installations.
With no wiring or external power supply required, the unit activates automatically when temperatures reach 170°C (±10°C), rapidly releasing a condensed aerosol to suppress a fire at its source. Its compact MCB-sized design allows for simple installation using DIN rail or adhesive mounting, making it ideal for modern consumer units where space is limited.
With no wiring or external power supply required, the unit activates automatically when temperatures reach 170°C (±10°C), rapidly releasing a condensed aerosol to suppress a fire at its source. Its compact MCB-sized design allows for simple installation using DIN rail or adhesive mounting, making it ideal for modern consumer units where space is limited.
- Self-contained compact aerosol technology for fire protection
- Automatic heat activation at 170°C
- Compact MCB-sized design for a neat, space-saving fit
- Suitable for single phase + TPN ranges
- DIN rail or adhesive mounting for flexible positioning
- No wiring or external power required for fast and simple installation
- Protects enclosed spaces up to 0.2m²
- <10 second discharge using condensed aerosol fire suppression technology
- 10 year service life
Technical:FBHA20D Datasheet - 210kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Sprint Cable Entry Glands - for all twin and earth cables
Loading …
Sprint Cable Entry Glands
offer full protection for all twin and earth cables
Complies with 18th Edition Wiring Regulations BS7671 for metal consumer units.
Technical:Data Sheet 190kb PDF |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Wiska - Sprint - Flame Retardant Grommets
Loading …
SPRINT
Flame Retardant Grommets
Flame Retardant Grommets
Complies with 18th Edition Wiring Regulations BS7671 for metal consumer units.
Made from Flame Retardant Material
Technical:WKEMTF20 Datasheet - 170kb pdf WKEMTF25 Datasheet - 170kb pdf WKEMTF32 Datasheet - 170kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Digital DIN Rail Mounting Compact Timers
Loading …
GK T80C
FB TD1
EU ECMFT
Digital DIN Rail Mounting Compact Timers
16A Resistive
16A Resistive
For use in control panels, distribution boards and consumer units.
24hr/7 day programming.
24hr/7 day programming.
- See each product
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
