10 Way Metal Dual Split Consumer Unit c/w 2 x RCDs c/w 10 MCBs --- Price Drop ---
Product Code: BG DP16610A
5050765120036
CFUDP16610-01
Loading …
Width: 402mm.
Height: 241mm.
Depth: 120mm.
BG

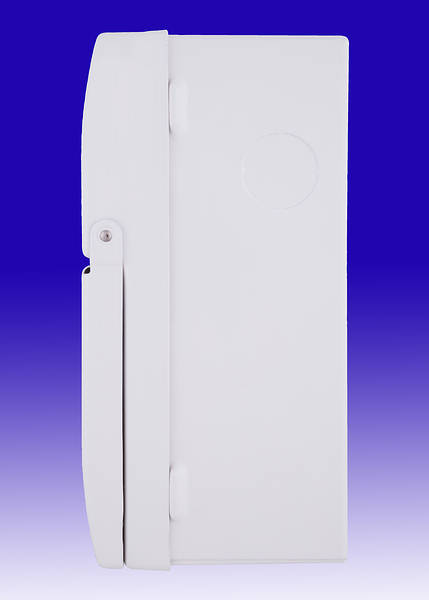

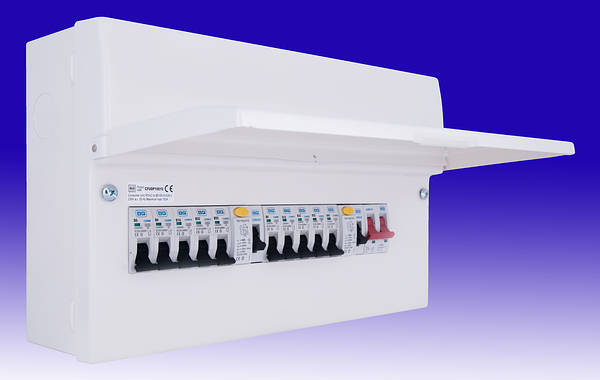

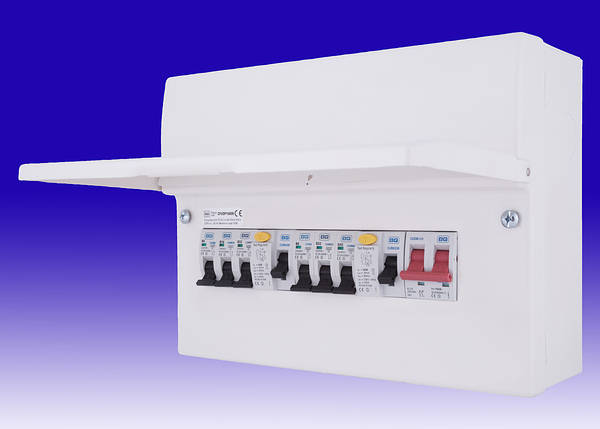

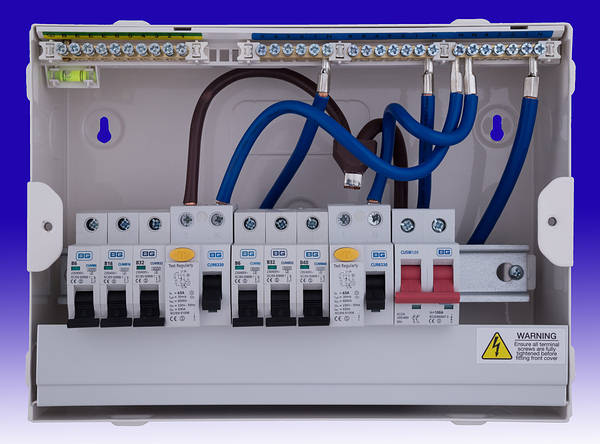

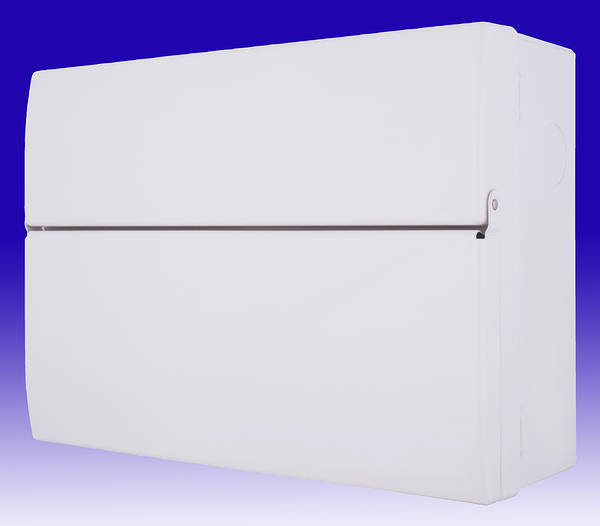

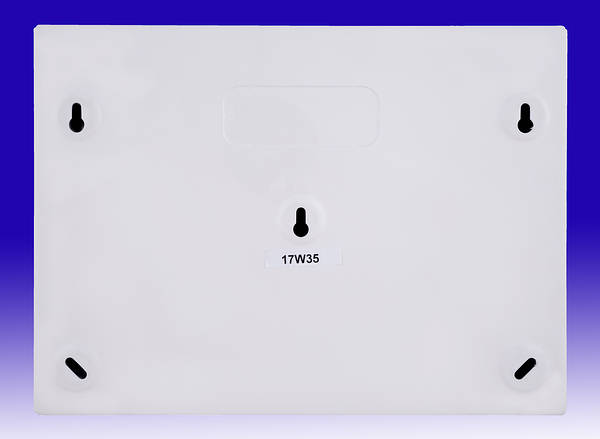

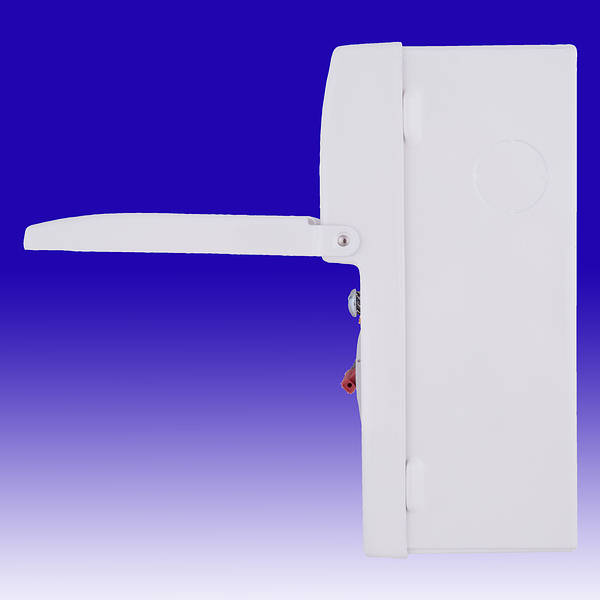

10 Way Metal Dual Split Consumer Unit
c/w 2 x 63A RCDs c/w 10 MCBs
10 Way Metal Dual Split Consumer Unit
c/w 2 x 63A RCDs c/w 10 MCBs
All metal consumer units comply with 17th Edition Wiring Regulations BS 7671.
Amendment 3.
Consumer Unit: BS EN 61439-3.
Main Switch: EN / IEC 60947-3.
RCD: EN / IEC 61008.
MCB: EN / IEC 60898.
- Max Current Rating: 100A.
- 230V AC 50Hz.
- Short Current Withstand: 16kA rms.
- IP Rating: IP2XC.
- Material: Steel.
- Finish: White gloss.
- Main Switch Terminal: 35mm² capacity.
- Main Switch Torque: 2.5 Nm.
- RCD Terminal: 35mm² capacity.
- RCD Torque: 3.5Nm.
- MCB Terminal: 16mm² (32 - 50A is 25mm²).
- MCB Torque: 2Nm.
- Knockouts
Top & Bottom Face - 9 x ø20mm + 2 x ø32mm
Sides 1 x ø32mm
Base 2 x 50mm + 1 x ø50 x 100mm.
Width: 402mm.
Height: 241mm.
Depth: 120mm.
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
BG DP16610A
10 Way Metal Dual Split Consumer Unit c/w 2 x RCDs c/w 10 MCBs --- Price Drop --- |
BG MCB's - B Type
Loading …
See product for Alternative Product
BG
MCB's - B Type
MCB's - B Type
| See product for Alternative Product |
Technical:Datasheet - 130kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
BG MCB's - C Type
Loading …
See product for Alternative Product
BG
MCB's - C Type
MCB's - C Type
| See product for Alternative Product |
Technical:Datasheet - 130kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
BG 30mA RCBO - BG - Type AC - B Curve (compact)
Loading …
Type AC – Ensures tripping for residual AC currents
Type A – Ensures tripping for residual AC currents and pulsating DC currents.
See product for Alternative Product
BG

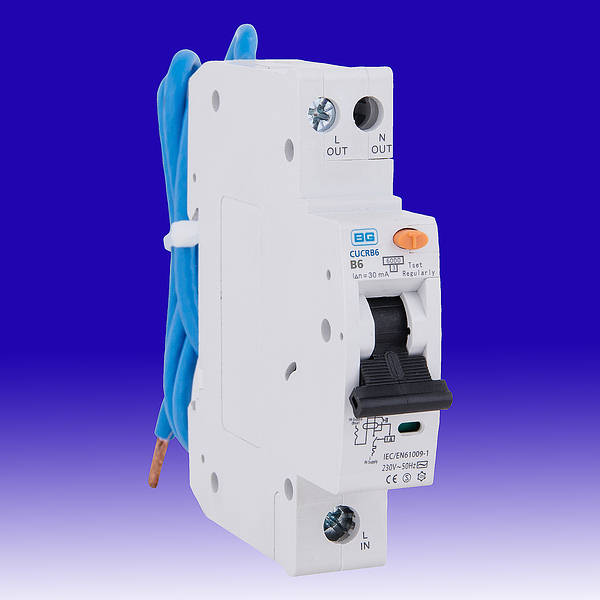

30mA RCBO - Type AC - B Curve
(New compact)
30mA RCBO - Type AC - B Curve
(New compact)
New Compact RCBO's for BG Consumer Units
Single module 30mA sensitivity combined MCB/RCD.
New compact size RCBO allowing for maximum usage of cable space within the Consumer Unit and easy installation
Single module 30mA sensitivity combined MCB/RCD.
New compact size RCBO allowing for maximum usage of cable space within the Consumer Unit and easy installation
Type AC – Ensures tripping for residual AC currents
Type A – Ensures tripping for residual AC currents and pulsating DC currents.
| See product for Alternative Product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
BG 30mA RCBO - BG -Type AC - C Curve (compact)
Loading …
Type AC – Ensures tripping for residual AC currents
Type A – Ensures tripping for residual AC currents and pulsating DC currents.
See product for Alternative Product
BG

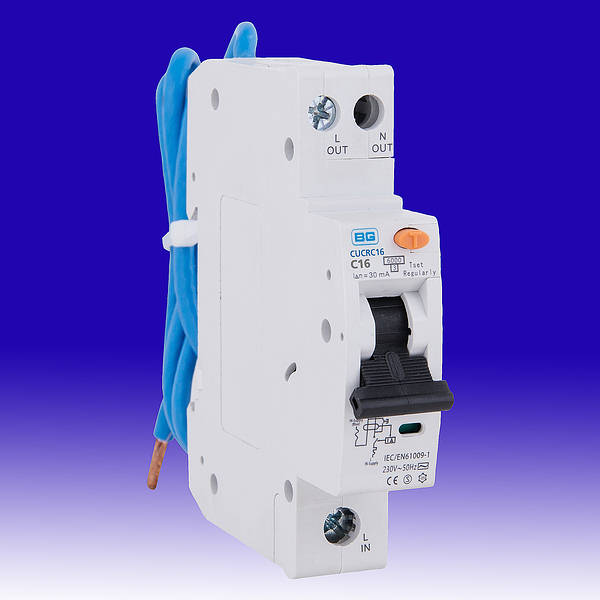

30mA RCBO - Type AC - C Curve
(New compact)
30mA RCBO - Type AC - C Curve
(New compact)
New Compact RCBO's for BG Consumer Units
Single module 30mA sensitivity combined MCB/RCD.
New compact size RCBO allowing for maximum usage of cable space within the Consumer Unit and easy installation
Single module 30mA sensitivity combined MCB/RCD.
New compact size RCBO allowing for maximum usage of cable space within the Consumer Unit and easy installation
Type AC – Ensures tripping for residual AC currents
Type A – Ensures tripping for residual AC currents and pulsating DC currents.
| See product for Alternative Product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
BG 30mA RCBO - BG - Type A - B Curve (compact)
Loading …
Type AC – Ensures tripping for residual AC currents
Type A – Ensures tripping for residual AC currents and pulsating DC currents.
See product for Alternative Product
BG
30mA RCBO - Type A
B Curve (New Compact)
30mA RCBO - Type A
B Curve (New Compact)
New Compact RCBO's for BG Consumer Units
Single module 30mA sensitivity combined MCB/RCD.
New compact size RCBO allowing for maximum usage of cable space within the Consumer Unit and easy installation.
Single module 30mA sensitivity combined MCB/RCD.
New compact size RCBO allowing for maximum usage of cable space within the Consumer Unit and easy installation.
- Single module RCBOs will occupy one outgoing way.
- Positive contact indication status.
- Device capable of being locked in the 'ON' or 'OFF' Position.
- Manufactured and tested to EN/IEC 61009-1 standards.
-
An RCBO is a combination of an MCB and RCD
This enables both overcurrent protection and earth fault current protection by a single unit. - MCB with type ‘B’ characteristics.
Type AC – Ensures tripping for residual AC currents
Type A – Ensures tripping for residual AC currents and pulsating DC currents.
| See product for Alternative Product |
Technical:Datasheet - 130kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
6A 30mA RCBO - BG (Type A) B Curve (compact) --- Price Drop --- |
|
10A 30mA RCBO - BG (Type A) B Curve (compact) --- Price Drop --- |
|
16A 30mA RCBO - BG (Type A) B Curve (compact) --- Price Drop --- |
|
20A 30mA RCBO - BG (Type A) B Curve (compact) --- Price Drop --- |
|
32A 30mA RCBO - BG (Type A) B Curve (compact) --- Price Drop --- |
|
40A 30mA RCBO - BG (Type A) B Curve (compact) --- Price Drop --- |
|
BG 30mA RCBO - BG - Type A - C Curve (compact)
Loading …
Type AC – Ensures tripping for residual AC currents
Type A – Ensures tripping for residual AC currents and pulsating DC currents.
See product for Alternative Product
BG
30mA RCBO - Type A
C Curve (New Compact)
30mA RCBO - Type A
C Curve (New Compact)
New Compact RCBO's for BG Consumer Units
Single module 30mA sensitivity combined MCB/RCD.
New compact size RCBO allowing for maximum usage of cable space within the Consumer Unit and easy installation.
Single module 30mA sensitivity combined MCB/RCD.
New compact size RCBO allowing for maximum usage of cable space within the Consumer Unit and easy installation.
- Single module RCBOs will occupy one outgoing way.
- Positive contact indication status.
- Device capable of being locked in the 'ON' or 'OFF' Position.
- Manufactured and tested to EN/IEC 61009-1 standards.
-
An RCBO is a combination of an MCB and RCD
This enables both overcurrent protection and earth fault current protection by a single unit. - MCB with type ‘B’ characteristics.
Type AC – Ensures tripping for residual AC currents
Type A – Ensures tripping for residual AC currents and pulsating DC currents.
| See product for Alternative Product |
Technical:Datasheet - 130kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
BG - Bell Transformer 240V AC to 8V 12V & 24V AC
Loading …
BG CUB1
Height: 80mm
Width: 68mm
Depth: 35mm
BG
Bell Transformer 240V AC to 8V 12V & 24V AC
Bell Transformer 240V AC to 8V 12V & 24V AC
Bell Transformer for use with metal or insulated consumer units & enclosures - DIN rail mountable.
Steps down voltage from 240V AC to 8V, 12V & 24V AC.
For installation in a high integrity circuit.
Used with mains powered door bells.
DIN rail mounted, suitable for cable size 16mm.
Steps down voltage from 240V AC to 8V, 12V & 24V AC.
For installation in a high integrity circuit.
Used with mains powered door bells.
DIN rail mounted, suitable for cable size 16mm.
Height: 80mm
Width: 68mm
Depth: 35mm
Technical:CUB1-01 Specification pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
BG Type 2 Single Phase Surge Protection Device ( SPD )
Loading …
BG SPDT21N
BG
Type 2
Single Phase Surge Protection Device ( SPD )
Type 2
Single Phase Surge Protection Device ( SPD )
This Type 2 Surge Protection Device provides superior protection against Transient overvoltages, by diverting the surge to earth within <25ns, and protecting all loads/circuits connected to the consumer unit.
The compact size and single module width make it compatible for all Fortress Consumer units and Enclosures.
The compact size and single module width make it compatible for all Fortress Consumer units and Enclosures.
- Type 2 Single Phase Surge Arrester
- Fully compliant to BSEN61643-11, BSEN62305 & BS7671
- Suitable for domestic installations
- Space saving 1 module design
- Can be fitted on DIN rail directly into the consumer unit
- 40kA
- Max. back up fuse 100A gG
- Positive status contact indicator
- Response time <25ns
- BGSPDT21N does not require an MCB - protection is built in
Technical:BGSPDT21N Datasheet - 110kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
BG - DP AFDD Type A - 6KA
Loading …
BG AFDB6A
BG
30mA DP AFDD / RCBO
B Curve - Type A
30mA DP AFDD / RCBO
B Curve - Type A
AFDD + RCBO combined:
AFDDs will all have automatic test, RCCB included + test button, includes overcurrent and fault current protection.
What buildings will be compulsory.: final socket circuits not exceeding 32A
Higher Risk Residential Buildings (HRRB): over 18M high or 6 stories what ever comes 1st
Houses in Multiple Occupation (HMO)
Purpose built student accommodation
Care homes
AFDDs will all have automatic test, RCCB included + test button, includes overcurrent and fault current protection.
What buildings will be compulsory.: final socket circuits not exceeding 32A
Higher Risk Residential Buildings (HRRB): over 18M high or 6 stories what ever comes 1st
Houses in Multiple Occupation (HMO)
Purpose built student accommodation
Care homes
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Sprint Cable Entry Glands - for all twin and earth cables
Loading …
Sprint Cable Entry Glands
offer full protection for all twin and earth cables
Complies with 18th Edition Wiring Regulations BS7671 for metal consumer units.
Technical:Data Sheet 190kb PDF |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
SPRINT Cable Glands for Tails and Earth Cables
Loading …
See product for Accessories
SPRINT Cable Glands
for Tails and Earth Cables
for Tails and Earth Cables
offer full protection for tails and earth cables
Complies with 18th Edition Wiring Regulations BS7671 for metal consumer units.
| See product for Accessories |
Technical:Data Sheet 190kb PDF WKTKEP50 Datasheet pdf Datasheet - 690kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
SPRINT Brass Cable Glands for Tails and Earth Cables
Loading …
See product for Accessories
SPRINT Brass Cable Glands
for Tails and Earth Cables
for Tails and Earth Cables
offer full protection for tails and earth cables
Complies with 18th Edition Wiring Regulations BS7671 for metal consumer units.
| See product for Accessories |
Technical:Data Sheet 190kb PDF |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
32mm Tail Kit Brass - 2 x 16mm Tail & 1 x 16mm Earth Cables --- Price Drop --- |
|
Wiska - Sprint - Flame Retardant Grommets
Loading …
SPRINT
Flame Retardant Grommets
Flame Retardant Grommets
Complies with 18th Edition Wiring Regulations BS7671 for metal consumer units.
Made from Flame Retardant Material
Technical:WKEMTF32 Datasheet - 170kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Digital DIN Rail Mounting Compact Timers
Loading …
SM NTDR16C
GK T80C
FB TD1
Digital DIN Rail Mounting Compact Timers
16A Resistive
16A Resistive
For use in control panels, distribution boards and consumer units.
24hr/7 day programming.
Voltage free contacts.
24hr/7 day programming.
Voltage free contacts.
- See each product
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
100mm x 100mm Maxi Trunking c/w End Caps - 1Mtr length
Loading …
Supplied with 2 End Caps
100mm x 100mm PVC Trunking c/w End Caps
1Mtr length
1Mtr length
Designed for use with consumer unit and distribution board Installations
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Accessories
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
