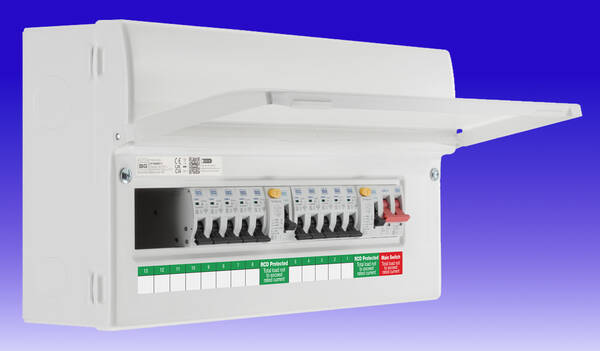

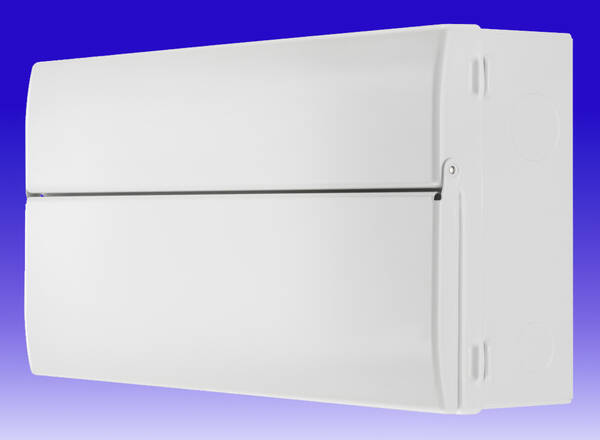

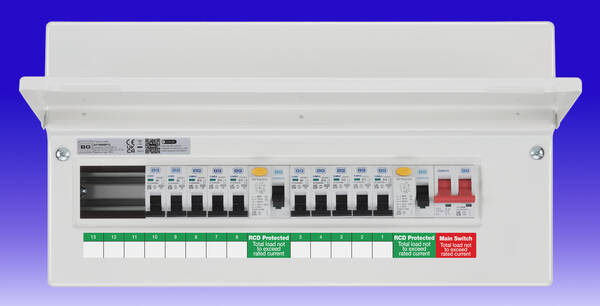

13 Way Metal Dual Split Consumer Unit c/w 2 x RCDs (Type A) + 10 MCBs
Product Code: BG F19D88P13
CF19D88P13-01
Loading …
Width: 442mm
Height: 231mm
Depth: 116mm
BG
13 Way Metal Dual Split Consumer Unit
c/w 2 x 63A RCDs (Type A) + 10 MCBs
13 Way Metal Dual Split Consumer Unit
c/w 2 x 63A RCDs (Type A) + 10 MCBs
MCB's included: 3 x 6A, 2 x 16A, 4 x 32A, 1 x 40A

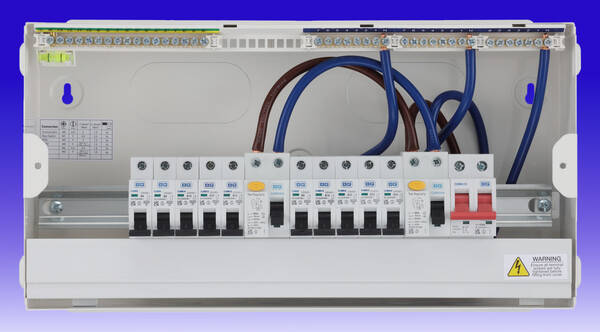

This BG Fortress metal IP2XC populated 6 way dual RCD consumer unit allows the installer to split the consumer's power needs across two 30mA RCD's, for example, lighting and power. Supplied complete with an integral spirit level, 2 x 63A 30mA Type A RCD's with 10 MCB's and all internal cables, terminals, busbar, labels and blanks.
Fast and easy installation with backed out, retained terminal screws and captive cover screws and painted in a high gloss finish to match all other BG wiring accessories. A modern, stylish design and profile with flexible circuit combinations.
This BG Fortress metal IP2XC populated 6 way dual RCD consumer unit allows the installer to split the consumer's power needs across two 30mA RCD's, for example, lighting and power. Supplied complete with an integral spirit level, 2 x 63A 30mA Type A RCD's with 10 MCB's and all internal cables, terminals, busbar, labels and blanks.
Fast and easy installation with backed out, retained terminal screws and captive cover screws and painted in a high gloss finish to match all other BG wiring accessories. A modern, stylish design and profile with flexible circuit combinations.
- Max. current rating: 100A
- Operating voltage: 230V AC 50Hz
- Short current withstand: 16kA rms
- IP rating: IP2XC
- Material: Steel
- Finish: White gloss (matches BG white accessories)
- UV stability: Yes
- Main switch terminal: 35mm² capacity
- Main switch torque: 2.5Nm
- RCD terminal: 35mm² capacity
- RCD torque: 2.5Nm
- MCB terminal: 16mm² (32 - 50A is 25mm²)
- MCB torque: 2Nm
- MCBs included:
10 x MCBs (3 x 6A, 2 x 16A, 4 x 32A & 1 x 40A) - Knockouts:
Top & bottom face - 14 x Ø20mm, 8 x Ø32mm

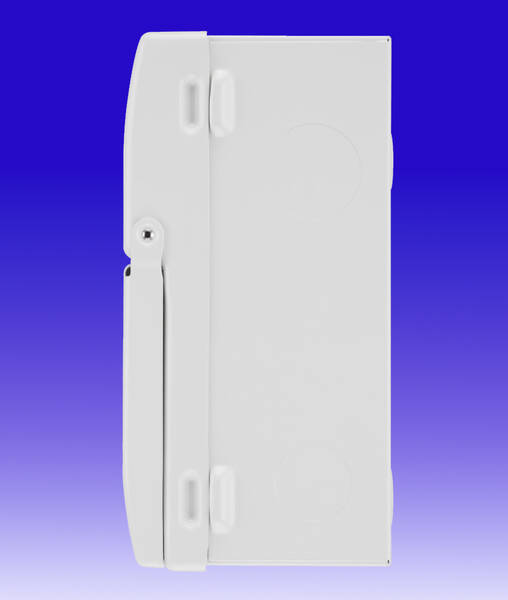

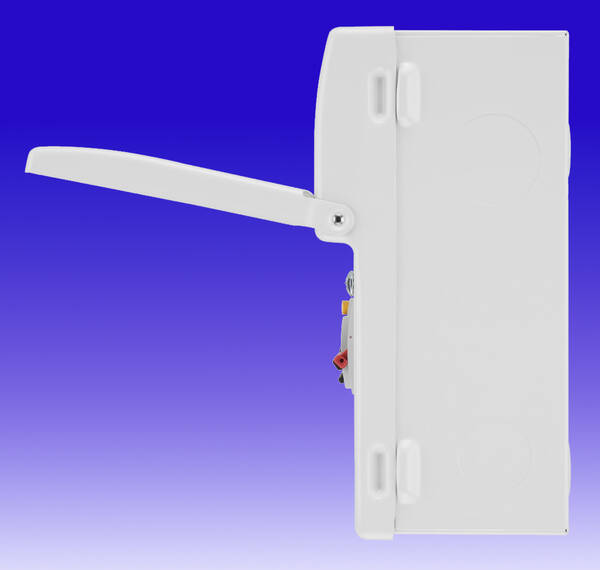

Sides - 1 x Ø32mm

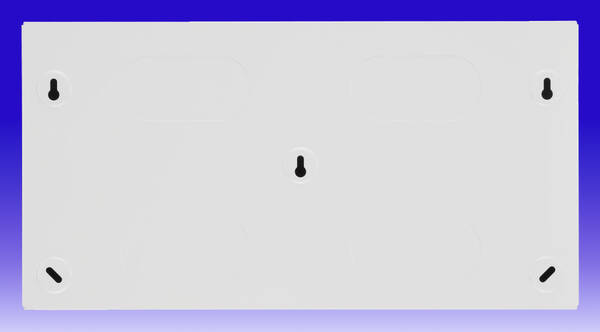

Base - 2 x Ø35mm x 90mm, 1 x Ø50mm
Width: 442mm
Height: 231mm
Depth: 116mm
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
BG F19D88P13
13 Way Metal Dual Split Consumer Unit c/w 2 x RCDs (Type A) + 10 MCBs |
