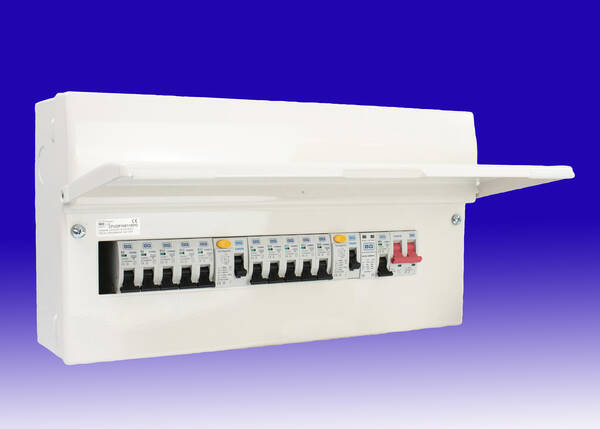

11 Way Metal Dual Split Consumer Unit c/w 2 x RCDs (Type A) + 10 MCBs + SPD Clearance Stock
Product Code: BG FP10011ASPD
5050765181259
CFUDP1000011ASPD-01
Loading …
Height: 231mm
Width: 443mm
BG
11 Way Metal Dual Split Consumer Unit
c/w 2 x 100A RCDs (Type A), 10 MCBs & SPD (Surge Protection Device)
11 Way Metal Dual Split Consumer Unit
c/w 2 x 100A RCDs (Type A), 10 MCBs & SPD (Surge Protection Device)
This range of consumer units give the flexibility of choice of incoming arrangement and with the added inclusion of an SPD to be compliant with the 18th Edition Wiring Regulations BS7671 and comes complete with 10 outgoing MCBs.
These consumer units will suit most applications with the added benefit of having a
Surge Protection Device fitted which is now part of the BS7671 18th Edition Regulations
Supplied with 100A main switch and the Surge Protection Device (pre-wired)
The terminal and busbar provide maximum flexibility and come as high integrity as standard for a combination of protected and unprotected circuits.
These consumer units will suit most applications with the added benefit of having a
Surge Protection Device fitted which is now part of the BS7671 18th Edition Regulations
Supplied with 100A main switch and the Surge Protection Device (pre-wired)
The terminal and busbar provide maximum flexibility and come as high integrity as standard for a combination of protected and unprotected circuits.
- Rating - 100 Amp
- High Integrity Dual RCD
- Fitted with spirit level for easy installation
- Gloss white finish to match BG white moulded wiring accessories
- Manufacturer Guarantee - 10 Year
-
MCBs Supplied
10 x MCBs (3 x 6A, 2 x 16A, 4 x 32A & 1 x 40A) - RCDs Supplied
2 x 100A 30mA RCDs (Type A) - SPDs Supplied - 40kA Surge Protection Device
Height: 231mm
Width: 443mm
| Previous Price (Ex VAT): £123.50 |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
BG FP10011ASPD
11 Way Metal Dual Split Consumer Unit c/w 2 x RCDs (Type A) + 10 MCBs + SPD Clearance Stock |
BG MCB's - B Type
Loading …
BG
MCB's - B Type
MCB's - B Type
Technical:Datasheet - 130kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
BG MCB's - C Type
Loading …
BG
MCB's - C Type
MCB's - C Type
Technical:Datasheet - 130kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
BG - Bell Transformer 240V AC to 8V 12V & 24V AC
Loading …
BG CUB1
Height: 80mm
Width: 68mm
Depth: 35mm
BG
Bell Transformer 240V AC to 8V 12V & 24V AC
Bell Transformer 240V AC to 8V 12V & 24V AC
Bell Transformer for use with metal or insulated consumer units & enclosures - DIN rail mountable.
Steps down voltage from 240V AC to 8V, 12V & 24V AC.
For installation in a high integrity circuit.
Used with mains powered door bells.
DIN rail mounted, suitable for cable size 16mm.
Steps down voltage from 240V AC to 8V, 12V & 24V AC.
For installation in a high integrity circuit.
Used with mains powered door bells.
DIN rail mounted, suitable for cable size 16mm.
Height: 80mm
Width: 68mm
Depth: 35mm
Technical:CUB1-01 Specification pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
BG 100A MID Meter - Single Module
Loading …
BG
100A MID Meter - Single Module
100A MID Meter - Single Module
This MID approved meter measures both imported & exported energy. It is ideal for renewable PV applications, EV charger installations, and the monitoring of dedicated power to circuits. The inbuilt Modbus RS485 data connection allows for network integration by allowing the inbuilt registers to display data onto a computer or device.
A compact module with a width of 18mm size which is DIN rail mountable, designed for installation within BG consumer units.
Accepting up to 25mm² cable conductors of the monitoring circuit, this meter does not require the addition of CT clamps for monitoring, only a single neutral connection is required for meter operation.
A compact module with a width of 18mm size which is DIN rail mountable, designed for installation within BG consumer units.
Accepting up to 25mm² cable conductors of the monitoring circuit, this meter does not require the addition of CT clamps for monitoring, only a single neutral connection is required for meter operation.
- 100A rated
- DIN rail mounting
- 18mm single module installation
- MID approved
- Import and export monitoring
- Inline connection
- RS485 Modbus connection
- Backlit display screen
- Fixed or product scrolling display
-
Single touch button operation for setup
and menu navigation - Meter functions:
Real time active energy (kWh)
Reactive energy (kVArh)
Voltage (V)
Current (A)
Active power (W)
Reactive power (Var)
Power factor (PF)
Supply frequency (Hz)
Technical:BGMID100A Datasheet - 160kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
BG - DP AFDD Type A - 6KA
Loading …
BG AFDB6A
BG
30mA DP AFDD / RCBO
B Curve - Type A
30mA DP AFDD / RCBO
B Curve - Type A
AFDD + RCBO combined:
AFDDs will all have automatic test, RCCB included + test button, includes overcurrent and fault current protection.
What buildings will be compulsory.: final socket circuits not exceeding 32A
Higher Risk Residential Buildings (HRRB): over 18M high or 6 stories what ever comes 1st
Houses in Multiple Occupation (HMO)
Purpose built student accommodation
Care homes
AFDDs will all have automatic test, RCCB included + test button, includes overcurrent and fault current protection.
What buildings will be compulsory.: final socket circuits not exceeding 32A
Higher Risk Residential Buildings (HRRB): over 18M high or 6 stories what ever comes 1st
Houses in Multiple Occupation (HMO)
Purpose built student accommodation
Care homes
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Sprint Cable Entry Glands - for all twin and earth cables
Loading …
Sprint Cable Entry Glands
offer full protection for all twin and earth cables
Complies with 18th Edition Wiring Regulations BS7671 for metal consumer units.
Technical:Data Sheet 190kb PDF |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
SPRINT Cable Glands for Tails and Earth Cables
Loading …
See product for Accessories
SPRINT Cable Glands
for Tails and Earth Cables
for Tails and Earth Cables
offer full protection for tails and earth cables
Complies with 18th Edition Wiring Regulations BS7671 for metal consumer units.
| See product for Accessories |
Technical:Data Sheet 190kb PDF WKTKEP50 Datasheet pdf Datasheet - 690kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
SPRINT Brass Cable Glands for Tails and Earth Cables
Loading …
See product for Accessories
SPRINT Brass Cable Glands
for Tails and Earth Cables
for Tails and Earth Cables
offer full protection for tails and earth cables
Complies with 18th Edition Wiring Regulations BS7671 for metal consumer units.
| See product for Accessories |
Technical:Data Sheet 190kb PDF |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
32mm Tail Kit Brass - 2 x 16mm Tail & 1 x 16mm Earth Cables --- Price Drop --- |
|
Wiska - Sprint - Flame Retardant Grommets
Loading …
SPRINT
Flame Retardant Grommets
Flame Retardant Grommets
Complies with 18th Edition Wiring Regulations BS7671 for metal consumer units.
Made from Flame Retardant Material
Technical:WKEMTF20 Datasheet - 170kb pdf WKEMTF25 Datasheet - 170kb pdf WKEMTF32 Datasheet - 170kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Digital DIN Rail Mounting Compact Timers
Loading …
SM NTDR16C
GK T80C
FB TD1
EU ECMFT
Digital DIN Rail Mounting Compact Timers
16A Resistive
16A Resistive
For use in control panels, distribution boards and consumer units.
24hr/7 day programming.
24hr/7 day programming.
- See each product
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Flexi Meter Tail Packs
Loading …
See product for Accessories
Flexi Meter Tail Packs
25mm 6181Y Brown & Blue (19 Strands)
16mm 6491X Green Yellow
25mm 6181Y Brown & Blue (19 Strands)
16mm 6491X Green Yellow
| See product for Accessories |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Maxi Trunking c/w End Caps - 1Mtr length
Loading …
Supplied with 2 end caps
PVC Trunking c/w End Caps
1Mtr length
1Mtr length
Designed for use with consumer unit and distribution board installations.
|
