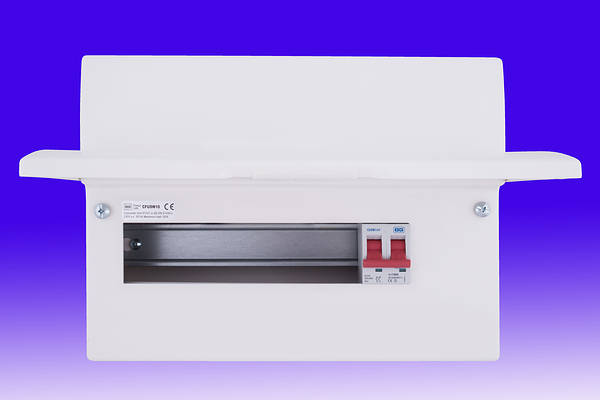

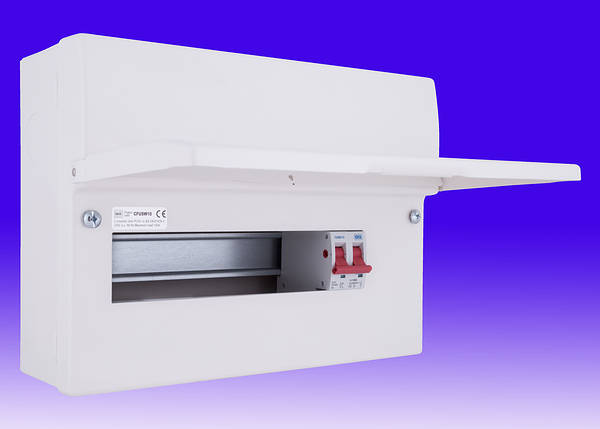

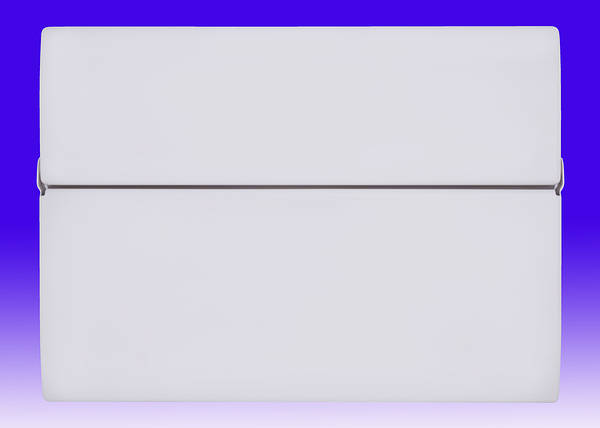

10 Way Metal Consumer Unit c/w 100A Main Switch Clearance Stock
Product Code: BG SW10
5050765119900
CFUSW10-01
Loading …
Width - 316mm
Height – 231mm
Depth – 115mm
BG
10 Way Metal Consumer Unit
10 Way Metal Consumer Unit
All metal consumer units comply with 18th Edition Wiring Regulations BS 767.
Amendment 3 Consumer Unit: BS EN 61439-3.
Each consumer unit supplied with two cover blanks.
Taller consumer unit; increased height provides more space to enable easier installation of RCBOs.
MCBs, RCDs, and control devices can be fitted into the consumer units.
The 6 way and the 10 way products have a taller design, allowing RCBOs to be
fitted quickly and easily, with greater wiring space.
100A, 12 Ways Main Switch Included.
Amendment 3 Consumer Unit: BS EN 61439-3.
Each consumer unit supplied with two cover blanks.
Taller consumer unit; increased height provides more space to enable easier installation of RCBOs.
MCBs, RCDs, and control devices can be fitted into the consumer units.
The 6 way and the 10 way products have a taller design, allowing RCBOs to be
fitted quickly and easily, with greater wiring space.
100A, 12 Ways Main Switch Included.
-
Supplied with 100A Main Switch,
busbar, label sheet, 2 cover blanks and instructions - Knockouts:
Top & Bottom Face
8 x ø20mm
1 x ø32mm
Sides 1x ø32mm
Base 1 x ø50 x 100mm - Finish - White gloss (matches BG white accessories)
- UV Stability - Yes
- Main Switch: EN / IEC 60947-3
- Max Current Rating – 100A
- Operating Voltage - 230V AC 50Hz
- Short Current Withstand - 16kA rms
- IP Rating - IP2XC
- Main Switch Terminal - 35mm² capacity
- Main Switch Torque - 2.5 Nm
Width - 316mm
Height – 231mm
Depth – 115mm
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
BG SW10
10 Way Metal Consumer Unit c/w 100A Main Switch Clearance Stock |
BG MCB's - B Type
Loading …
BG
MCB's - B Type
MCB's - B Type
Technical:Datasheet - 130kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
BG MCB's - C Type
Loading …
BG
MCB's - C Type
MCB's - C Type
Technical:Datasheet - 130kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
BG 30mA RCBO - BG - Type AC - B Curve (compact)
Loading …
Type AC – Ensures tripping for residual AC currents
Type A – Ensures tripping for residual AC currents and pulsating DC currents.
BG
30mA RCBO - Type AC - B Curve
(New compact)
30mA RCBO - Type AC - B Curve
(New compact)
New Compact RCBO's for BG Consumer Units
Single module 30mA sensitivity combined MCB/RCD.
New compact size RCBO allowing for maximum usage of cable space within the Consumer Unit and easy installation
Single module 30mA sensitivity combined MCB/RCD.
New compact size RCBO allowing for maximum usage of cable space within the Consumer Unit and easy installation
Type AC – Ensures tripping for residual AC currents
Type A – Ensures tripping for residual AC currents and pulsating DC currents.
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
BG 30mA RCBO - BG - Type A - B Curve (compact)
Loading …
Type AC – Ensures tripping for residual AC currents
Type A – Ensures tripping for residual AC currents and pulsating DC currents.
BG
30mA RCBO - Type A
B Curve (New Compact)
30mA RCBO - Type A
B Curve (New Compact)
New Compact RCBO's for BG Consumer Units
Single module 30mA sensitivity combined MCB/RCD.
New compact size RCBO allowing for maximum usage of cable space within the Consumer Unit and easy installation.
Single module 30mA sensitivity combined MCB/RCD.
New compact size RCBO allowing for maximum usage of cable space within the Consumer Unit and easy installation.
- Single module RCBOs will occupy one outgoing way.
- Positive contact indication status.
- Device capable of being locked in the 'ON' or 'OFF' Position.
- Manufactured and tested to EN/IEC 61009-1 standards.
-
An RCBO is a combination of an MCB and RCD
This enables both overcurrent protection and earth fault current protection by a single unit. - MCB with type ‘B’ characteristics.
Type AC – Ensures tripping for residual AC currents
Type A – Ensures tripping for residual AC currents and pulsating DC currents.
Technical:Datasheet - 130kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
6A 30mA RCBO - BG (Type A) B Curve (compact) --- Price Drop --- |
|
10A 30mA RCBO - BG (Type A) B Curve (compact) --- Price Drop --- |
|
16A 30mA RCBO - BG (Type A) B Curve (compact) --- Price Drop --- |
|
20A 30mA RCBO - BG (Type A) B Curve (compact) --- Price Drop --- |
|
32A 30mA RCBO - BG (Type A) B Curve (compact) --- Price Drop --- |
|
40A 30mA RCBO - BG (Type A) B Curve (compact) --- Price Drop --- |
|
BG 30mA RCBO - BG - Type A - C Curve (compact)
Loading …
Type AC – Ensures tripping for residual AC currents
Type A – Ensures tripping for residual AC currents and pulsating DC currents.
BG
30mA RCBO - Type A
C Curve (New Compact)
30mA RCBO - Type A
C Curve (New Compact)
New Compact RCBO's for BG Consumer Units
Single module 30mA sensitivity combined MCB/RCD.
New compact size RCBO allowing for maximum usage of cable space within the Consumer Unit and easy installation.
Single module 30mA sensitivity combined MCB/RCD.
New compact size RCBO allowing for maximum usage of cable space within the Consumer Unit and easy installation.
- Single module RCBOs will occupy one outgoing way.
- Positive contact indication status.
- Device capable of being locked in the 'ON' or 'OFF' Position.
- Manufactured and tested to EN/IEC 61009-1 standards.
-
An RCBO is a combination of an MCB and RCD
This enables both overcurrent protection and earth fault current protection by a single unit. - MCB with type ‘B’ characteristics.
Type AC – Ensures tripping for residual AC currents
Type A – Ensures tripping for residual AC currents and pulsating DC currents.
Technical:Datasheet - 130kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
BG - Bell Transformer 240V AC to 8V 12V & 24V AC
Loading …
BG CUB1
Height: 80mm
Width: 68mm
Depth: 35mm
BG
Bell Transformer 240V AC to 8V 12V & 24V AC
Bell Transformer 240V AC to 8V 12V & 24V AC
Bell Transformer for use with metal or insulated consumer units & enclosures - DIN rail mountable.
Steps down voltage from 240V AC to 8V, 12V & 24V AC.
For installation in a high integrity circuit.
Used with mains powered door bells.
DIN rail mounted, suitable for cable size 16mm.
Steps down voltage from 240V AC to 8V, 12V & 24V AC.
For installation in a high integrity circuit.
Used with mains powered door bells.
DIN rail mounted, suitable for cable size 16mm.
Height: 80mm
Width: 68mm
Depth: 35mm
Technical:CUB1-01 Specification pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
BG 100A MID Meter - Single Module
Loading …
BG
100A MID Meter - Single Module
100A MID Meter - Single Module
This MID approved meter measures both imported & exported energy. It is ideal for renewable PV applications, EV charger installations, and the monitoring of dedicated power to circuits. The inbuilt Modbus RS485 data connection allows for network integration by allowing the inbuilt registers to display data onto a computer or device.
A compact module with a width of 18mm size which is DIN rail mountable, designed for installation within BG consumer units.
Accepting up to 25mm² cable conductors of the monitoring circuit, this meter does not require the addition of CT clamps for monitoring, only a single neutral connection is required for meter operation.
A compact module with a width of 18mm size which is DIN rail mountable, designed for installation within BG consumer units.
Accepting up to 25mm² cable conductors of the monitoring circuit, this meter does not require the addition of CT clamps for monitoring, only a single neutral connection is required for meter operation.
- 100A rated
- DIN rail mounting
- 18mm single module installation
- MID approved
- Import and export monitoring
- Inline connection
- RS485 Modbus connection
- Backlit display screen
- Fixed or product scrolling display
-
Single touch button operation for setup
and menu navigation - Meter functions:
Real time active energy (kWh)
Reactive energy (kVArh)
Voltage (V)
Current (A)
Active power (W)
Reactive power (Var)
Power factor (PF)
Supply frequency (Hz)
Technical:BGMID100A Datasheet - 160kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
BG Type 2 Single Phase Surge Protection Device ( SPD )
Loading …
BG
Type 2
Single Phase Surge Protection Device ( SPD )
Type 2
Single Phase Surge Protection Device ( SPD )
This Type 2 Surge Protection Device provides superior protection against Transient overvoltages, by diverting the surge to earth within <25ns, and protecting all loads/circuits connected to the consumer unit.
The compact size and single module width make it compatible for all Fortress Consumer units and Enclosures.
The compact size and single module width make it compatible for all Fortress Consumer units and Enclosures.
- Type 2 Single Phase Surge Arrester
- Fully compliant to BSEN61643-11, BSEN62305 & BS7671
- Suitable for domestic installations
- Space saving 1 module design
- Can be fitted on DIN rail directly into the consumer unit
- 40kA
- Max. back up fuse 100A gG
- Positive status contact indicator
- Response time <25ns
- BGSPDT21N does not require an MCB - protection is built in
Technical:BGSPDT21N Datasheet - 110kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
BG - DP AFDD Type A - 6KA
Loading …
BG AFDB6A
BG
30mA DP AFDD / RCBO
B Curve - Type A
30mA DP AFDD / RCBO
B Curve - Type A
AFDD + RCBO combined:
AFDDs will all have automatic test, RCCB included + test button, includes overcurrent and fault current protection.
What buildings will be compulsory.: final socket circuits not exceeding 32A
Higher Risk Residential Buildings (HRRB): over 18M high or 6 stories what ever comes 1st
Houses in Multiple Occupation (HMO)
Purpose built student accommodation
Care homes
AFDDs will all have automatic test, RCCB included + test button, includes overcurrent and fault current protection.
What buildings will be compulsory.: final socket circuits not exceeding 32A
Higher Risk Residential Buildings (HRRB): over 18M high or 6 stories what ever comes 1st
Houses in Multiple Occupation (HMO)
Purpose built student accommodation
Care homes
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Sprint Cable Entry Glands - for all twin and earth cables
Loading …
Sprint Cable Entry Glands
offer full protection for all twin and earth cables
Complies with 18th Edition Wiring Regulations BS7671 for metal consumer units.
Technical:Data Sheet 190kb PDF |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
SPRINT Cable Glands for Tails and Earth Cables
Loading …
See product for Accessories
SPRINT Cable Glands
for Tails and Earth Cables
for Tails and Earth Cables
offer full protection for tails and earth cables
Complies with 18th Edition Wiring Regulations BS7671 for metal consumer units.
| See product for Accessories |
Technical:Data Sheet 190kb PDF WKTKEP50 Datasheet pdf Datasheet - 690kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
SPRINT Brass Cable Glands for Tails and Earth Cables
Loading …
See product for Accessories
SPRINT Brass Cable Glands
for Tails and Earth Cables
for Tails and Earth Cables
offer full protection for tails and earth cables
Complies with 18th Edition Wiring Regulations BS7671 for metal consumer units.
| See product for Accessories |
Technical:Data Sheet 190kb PDF |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
32mm Tail Kit Brass - 2 x 16mm Tail & 1 x 16mm Earth Cables --- Price Drop --- |
|
Wiska - Sprint - Flame Retardant Grommets
Loading …
SPRINT
Flame Retardant Grommets
Flame Retardant Grommets
Complies with 18th Edition Wiring Regulations BS7671 for metal consumer units.
Made from Flame Retardant Material
Technical:WKEMTF20 Datasheet - 170kb pdf WKEMTF25 Datasheet - 170kb pdf WKEMTF32 Datasheet - 170kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Digital DIN Rail Mounting Compact Timers
Loading …
SM NTDR16C
GK T80C
FB TD1
EU ECMFT
Digital DIN Rail Mounting Compact Timers
16A Resistive
16A Resistive
For use in control panels, distribution boards and consumer units.
24hr/7 day programming.
24hr/7 day programming.
- See each product
Technical:See each product |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Flexi Meter Tail Packs
Loading …
See product for Accessories
Flexi Meter Tail Packs
25mm 6181Y Brown & Blue (19 Strands)
16mm 6491X Green Yellow
25mm 6181Y Brown & Blue (19 Strands)
16mm 6491X Green Yellow
| See product for Accessories |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Maxi Trunking c/w End Caps - 1Mtr length
Loading …
Supplied with 2 end caps
PVC Trunking c/w End Caps
1Mtr length
1Mtr length
Designed for use with consumer unit and distribution board installations.
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Accessories
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
