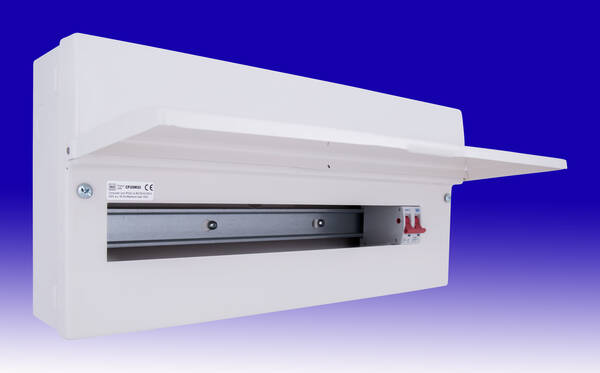

20 Way Metal Consumer Unit c/w 100a Main Switch
Product Code: BG SW20
5050765159722
CFUSW20-01
Loading …
Width: 494mm
Height: 231mm
Depth: 115mm
BG
20 Way Metal Consumer Unit
20 Way Metal Consumer Unit
Double pole isolation ready for RCBO, MCB and High Integrity circuits
Modern stylish design with a profile that matches BG wiring accessories
Flexibility for maximum circuit combinations and easy upgrades
Fast and simple installation
Consumer unit and devices tested to all relevant standards
10 Year Guarantee
Easy access of cables via knockouts (20 and 32mm), in sides top and bottom, plus additional rear entry knockouts.
Base, Cover and Visor all manufactured from steel to ensure full compliance to BS 7671.
Gloss white colour to match BG white moulded wiring accessories. The gloss finish provides a superior finish as well as aiding cleaning.
Up-opening visor, enabling easier access to devices.
.
100A, 20 Ways c/w Main Switch Included.
Modern stylish design with a profile that matches BG wiring accessories
Flexibility for maximum circuit combinations and easy upgrades
Fast and simple installation
Consumer unit and devices tested to all relevant standards
10 Year Guarantee
Easy access of cables via knockouts (20 and 32mm), in sides top and bottom, plus additional rear entry knockouts.
Base, Cover and Visor all manufactured from steel to ensure full compliance to BS 7671.
Gloss white colour to match BG white moulded wiring accessories. The gloss finish provides a superior finish as well as aiding cleaning.
Up-opening visor, enabling easier access to devices.
.
100A, 20 Ways c/w Main Switch Included.
-
Supplied with 100A Main Switch,
busbar, label sheet, 2 cover blanks and instructions - Knockouts:
Top & Bottom Face
11 x ø20mm
2 x ø32mm
Sides 1x ø32mm
Base 2 x ø50 x 100mm - Finish - White gloss (matches BG white accessories)
- UV Stability - Yes
- Main Switch: EN / IEC 60947-3
- Max Current Rating – 100A
- Operating Voltage - 230V AC 50Hz
- Short Current Withstand - 16kA rms
- IP Rating - IP2XC
- Main Switch Terminal - 35mm² capacity
- Main Switch Torque - 2.5 Nm
- conforms to BS EN61439-3 & BS7671
Width: 494mm
Height: 231mm
Depth: 115mm
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
BG SW20
20 Way Metal Consumer Unit c/w 100a Main Switch |
BG MCB's - B Type
Loading …
BG
MCB's - B Type
MCB's - B Type
Technical:CP Range Catalogue - 450kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
BG MCB's - C Type
Loading …
BG
MCB's - C Type
MCB's - C Type
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
BG 30mA RCBO - BG - Type AC - B Curve (compact)
Loading …
Type AC – Ensures tripping for residual AC currents
Type A – Ensures tripping for residual AC currents and pulsating DC currents.
BG
30mA RCBO - Type AC - B Curve
(New compact)
30mA RCBO - Type AC - B Curve
(New compact)
New Compact RCBO's for BG Consumer Units
Single module 30mA sensitivity combined MCB/RCD.
New compact size RCBO allowing for maximum usage of cable space within the Consumer Unit and easy installation
Single module 30mA sensitivity combined MCB/RCD.
New compact size RCBO allowing for maximum usage of cable space within the Consumer Unit and easy installation
Type AC – Ensures tripping for residual AC currents
Type A – Ensures tripping for residual AC currents and pulsating DC currents.
Technical:BG CRB & CRC Data Sheet 330kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
BG 30mA RCBO - BG -Type AC - C Curve (compact)
Loading …
Type AC – Ensures tripping for residual AC currents
Type A – Ensures tripping for residual AC currents and pulsating DC currents.
BG
30mA RCBO - Type AC - C Curve
(New compact)
30mA RCBO - Type AC - C Curve
(New compact)
New Compact RCBO's for BG Consumer Units
Single module 30mA sensitivity combined MCB/RCD.
New compact size RCBO allowing for maximum usage of cable space within the Consumer Unit and easy installation
Single module 30mA sensitivity combined MCB/RCD.
New compact size RCBO allowing for maximum usage of cable space within the Consumer Unit and easy installation
Type AC – Ensures tripping for residual AC currents
Type A – Ensures tripping for residual AC currents and pulsating DC currents.
Technical:BG CRB & CRC Data Sheet 330kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
BG 30mA RCBO - BG - Type A - B Curve (compact)
Loading …
Type AC – Ensures tripping for residual AC currents
Type A – Ensures tripping for residual AC currents and pulsating DC currents.
BG
30mA RCBO - Type A
B Curve (New Compact)
30mA RCBO - Type A
B Curve (New Compact)
New Compact RCBO's for BG Consumer Units
Single module 30mA sensitivity combined MCB/RCD.
New compact size RCBO allowing for maximum usage of cable space within the Consumer Unit and easy installation.
Single module 30mA sensitivity combined MCB/RCD.
New compact size RCBO allowing for maximum usage of cable space within the Consumer Unit and easy installation.
- Single module RCBOs will occupy one outgoing way.
- Positive contact indication status.
- Device capable of being locked in the 'ON' or 'OFF' Position.
- Manufactured and tested to EN/IEC 61009-1 standards.
-
An RCBO is a combination of an MCB and RCD
This enables both overcurrent protection and earth fault current protection by a single unit. - MCB with type ‘B’ characteristics.
Type AC – Ensures tripping for residual AC currents
Type A – Ensures tripping for residual AC currents and pulsating DC currents.
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
BG 30mA RCBO - BG - Type A - C Curve (compact)
Loading …
Type AC – Ensures tripping for residual AC currents
Type A – Ensures tripping for residual AC currents and pulsating DC currents.
BG
30mA RCBO - Type A
C Curve (New Compact)
30mA RCBO - Type A
C Curve (New Compact)
New Compact RCBO's for BG Consumer Units
Single module 30mA sensitivity combined MCB/RCD.
New compact size RCBO allowing for maximum usage of cable space within the Consumer Unit and easy installation.
Single module 30mA sensitivity combined MCB/RCD.
New compact size RCBO allowing for maximum usage of cable space within the Consumer Unit and easy installation.
- Single module RCBOs will occupy one outgoing way.
- Positive contact indication status.
- Device capable of being locked in the 'ON' or 'OFF' Position.
- Manufactured and tested to EN/IEC 61009-1 standards.
-
An RCBO is a combination of an MCB and RCD
This enables both overcurrent protection and earth fault current protection by a single unit. - MCB with type ‘B’ characteristics.
Type AC – Ensures tripping for residual AC currents
Type A – Ensures tripping for residual AC currents and pulsating DC currents.
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
BG - Bell Transformer 240VAC to 8V 12V & 24VAC
Loading …
BG CUB1
Height: 80mm.
Width: 68mm.
Depth: 35mm.
BG
Bell Transformer 240VAC to 8V 12V & 24VAC
Bell Transformer 240VAC to 8V 12V & 24VAC
Bell Transformer for use with metal or insulated consumer units & enclosures DIN rail mountable Steps down voltage from 240VAC to 8V 12V & 24VAC
For installation in a high integrity circuit
Used with mains powered door bell works with ring door bells.
Din rail mounted suitable for cable size 16mm.
For installation in a high integrity circuit
Used with mains powered door bell works with ring door bells.
Din rail mounted suitable for cable size 16mm.
Height: 80mm.
Width: 68mm.
Depth: 35mm.
Technical:CUB1-01 Specification pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
BG - AFDD Type A - 6KA
Loading …
BG AFDB6A
BG
30mA AFDD / RCBO
B & C Curve - Type A
30mA AFDD / RCBO
B & C Curve - Type A
AFDD + RCBO combined:
AFDDs will all have automatic test, RCCB included + test button, includes overcurrent and fault current protection.
What buildings will be compulsory.: final socket circuits not exceeding 32A
Higher Risk Residential Buildings (HRRB): over 18M high or 6 stories what ever comes 1st
Houses in Multiple Occupation (HMO)
Purpose built student accommodation
Care homes
AFDDs will all have automatic test, RCCB included + test button, includes overcurrent and fault current protection.
What buildings will be compulsory.: final socket circuits not exceeding 32A
Higher Risk Residential Buildings (HRRB): over 18M high or 6 stories what ever comes 1st
Houses in Multiple Occupation (HMO)
Purpose built student accommodation
Care homes
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
BG Type 2 Single Phase Surge Protection Device ( SPD )
Loading …
BG SPDT21
BG
Type 2
Single Phase Surge Protection Device ( SPD )
Type 2
Single Phase Surge Protection Device ( SPD )
- Type 2 Single Phase Surge Arrester
- Fully compliant to BSEN61643-11 , BSEN62305 & BS7671
- Suitable for domestic installations
- Space saving 1 module design
- Min. back up MCB 16-32A B curve
- Can be fitted on DIN rail directly into the consumer unit
- Grey colour to match existing circuit protection devices
- Nominal
- IP20 protection degree
- Response time < 25ms
Technical:BGSPDT21 Datasheet 146kb |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Type 2 Single Phase SPD (Surge Protection Device) --- Price Drop --- |
|
Sprint Cable Entry Glands - for all twin and earth cables
Loading …
Sprint Cable Entry Glands
offer full protection for all twin and earth cables
Complies with 18th Edition Wiring Regulations BS7671 for metal consumer units.
Technical:Data Sheet 190kb PDF |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
SPRINT Cable Glands for Tails and Earth Cables
Loading …
See product for Accessories
SPRINT Cable Glands
for Tails and Earth Cables
for Tails and Earth Cables
offer full protection for tails and earth cables
Complies with 18th Edition Wiring Regulations BS7671 for metal consumer units.
| See product for Accessories |
Technical:Data Sheet 190kb PDF WKTKEP50 Datasheet pdf Datasheet - 690kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
SPRINT Brass Cable Glands for Tails and Earth Cables
Loading …
See product for Accessories
SPRINT Brass Cable Glands
for Tails and Earth Cables
for Tails and Earth Cables
offer full protection for tails and earth cables
Complies with 18th Edition Wiring Regulations BS7671 for metal consumer units.
| See product for Accessories |
Technical:Data Sheet 190kb PDF |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Wiska - Sprint - Flame Retardant Grommets Cable Entry Kit EMT-F
Loading …
SPRINT
Flame Retardant Grommets Kit
Flame Retardant Grommets Kit
Complies with 18th Edition Wiring Regulations BS7671 for metal consumer units.
Made from Flame Retardant Material
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Digital DIN Rail Mounting Compact Timers
Loading …
SM NTDR16C
GK T80C
Digital DIN Rail Mounting Compact Timers
16A Resistive, 2A Inductive
16A Resistive, 2A Inductive
For use in control panels, distribution boards and consumer units.
24hr/7 day programming.
Volt free contacts.
24hr/7 day programming.
Volt free contacts.
Technical:Instructions - pdf 109kb SMNTDR16C Datasheet - 375kb pdf Instructions - 720kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Flexi Meter Tail Packs
Loading …
See product for Accessories
Flexi Meter Tail Packs
25mm 6181Y Brown & Blue (19 Strands)
16mm 6491X Green Yellow
25mm 6181Y Brown & Blue (19 Strands)
16mm 6491X Green Yellow
| See product for Accessories |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
100mm x 100mm Maxi Trunking c/w End Caps - 1Mtr length
Loading …
Supplied with 2 End Caps
100mm x 100mm PVC Trunking c/w End Caps
1Mtr length
1Mtr length
Designed for use with consumer unit and distribution board Installations
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Accessories
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
