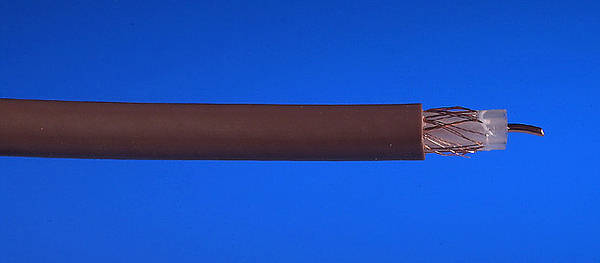

Coaxial Cable Brown - 1.00mm² - 75ohms - 100M Drum
Product Code: CA COAXB
5015972050958
808.115UK
Loading …
Nominal O.D - 6.7mm
75 Ohm Coaxial Cable - Brown
100M Drum
100M Drum
Full range of Coaxial Accessories
For drum of cable
Please Enter e.g.
100 = 100 Metre Drum
- Application:
- Television and Radio downleads for Aerials
- Conductor: Copper clad steel conductor
- Insulation: copper clad aluminium braiding with aluminium foil and air spaced polythene dielectric.
- Sheath: PVC Brown
- CSA - 0.78mm²
- Conductor diameter - 1.0mmØ
- Braid - 48 x 0.12mmØ
- Cable diameter - 6.6mmØ
- Screen - Aluminium foil
- Dielectric - 4.60mmØ Air spaced P.E.
- Impedance - 75 ohm
- Velocity factor - 0.83 min.
- Return loss 5-400MHz - 24dB min.
- Return loss 450-1000MHz - 20dB min.
- Return loss 1000-2150MHz - 16dB min.
- Attenuation @ 5MHz - 2.9dB max.
- Attenuation @ 50MHz - 5.2dB max.
- Attenuation @ 100MHz - 6.9dB max.
- Attenuation @ 200MHz - 10.2dB max.
- Attenuation @ 400MHz - 14.9dB max.
- Attenuation @ 860MHz - 20.3dB max
- Attenuation @ 1000MHz - 22.5dB max.
- Attenuation @ 1750MHz - 29.8dB max.
- Attenuation @ 2150MHz - 33.6dB max
Nominal O.D - 6.7mm
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Metres
|
|---|---|
|
CA COAXB
Coaxial Cable Brown - 1.00mm² - 75ohms - 100M Drum |
