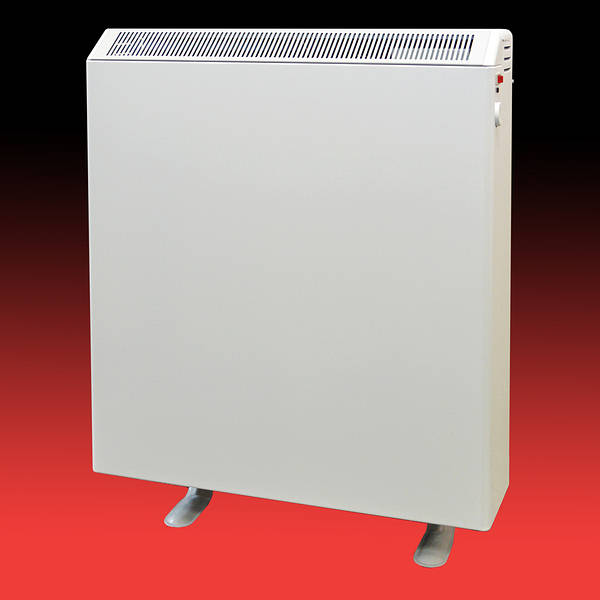

TSR Supaslim Combi Storage Heater 3400w Heavy Goods*
Product Code: CD TSR24NAC
5011139054937
54937
Loading …
Rating Storage (kW) – 3.4kW
Direct Acting (kW) 2/1kW
Charge Acceptance (7 hrs) (kWh) – 23.5kWh
Number of Elements – 4
Number of Core Bricks – 16
Dimensions - Height 760mm – Width – 1016mm – Depth – 204mm
Weight – 149kg - Inc Bricks
Direct Acting (kW) 2/1kW
Charge Acceptance (7 hrs) (kWh) – 23.5kWh
Number of Elements – 4
Number of Core Bricks – 16
Dimensions - Height 760mm – Width – 1016mm – Depth – 204mm
Weight – 149kg - Inc Bricks
Creda
TSR Supaslim Combi Storage Heater 3400w
TSR Supaslim Combi Storage Heater 3400w
The Supaslim Combi heater is designed to combine economic and low-cost storage heating
with an independently thermostat-controlled convector heater
Effectively two heaters in one, the built-in convector heater can provide heat on its own or in combination with the storage heater for a rapid boost to room temperature.
with an independently thermostat-controlled convector heater
Effectively two heaters in one, the built-in convector heater can provide heat on its own or in combination with the storage heater for a rapid boost to room temperature.
- Combines economic tariff rate storage heater with a fast and responsive convector heater for instant room heating
- The slimmest storage combination heater available
- Sensamatic fully automatic storage heater output ensures room comfort levels are maintained throughout the day without user intervention
- The convector heater has manually adjustable room temperature sensing thermostatic control accurate to within 0.5°C
- All controls are concealed behind a lockable flap
- Hydraulic input charge control thermostat provides auto-set input charge control
- Convector heater ratings can be set on full or half load (installation option)
- Elements (storage) - mineral insulated stainless steel sheathed
- Insulation - opacified silicaceous aerogel and mineral fibre mat
- Storage Core - high density iron oxide compound
- Controls (Output) - activated by integral adjustable thermostat
- Controls (Input) - hydraulic head temperature compensated, room and storage core temperature sensitive, auto-set charge control
- Protection - two level thermal safety overheat
- Supply - 230/240V AC single phase
Rating Storage (kW) – 3.4kW
Direct Acting (kW) 2/1kW
Charge Acceptance (7 hrs) (kWh) – 23.5kWh
Number of Elements – 4
Number of Core Bricks – 16
Dimensions - Height 760mm – Width – 1016mm – Depth – 204mm
Weight – 149kg - Inc Bricks
Direct Acting (kW) 2/1kW
Charge Acceptance (7 hrs) (kWh) – 23.5kWh
Number of Elements – 4
Number of Core Bricks – 16
Dimensions - Height 760mm – Width – 1016mm – Depth – 204mm
Weight – 149kg - Inc Bricks
Technical:Assembly - 316kb pdf Instructions - 316kb pdf |
|
