Faac 770 UK KIT Underground Gate Opener Kit
Easy to install kits for the builder and electrician

Underground Swing Gate Automation

Completely invisible,

this new way of opening and closing
gates up to 2.5m means the gate appearance is unchanged.
The totally self-locking system includes a corrosion-proof
load-bearing box which can support a gate of 500kg (per
leaf). The operator unit can be accessed for maintenance
without removing the gate.

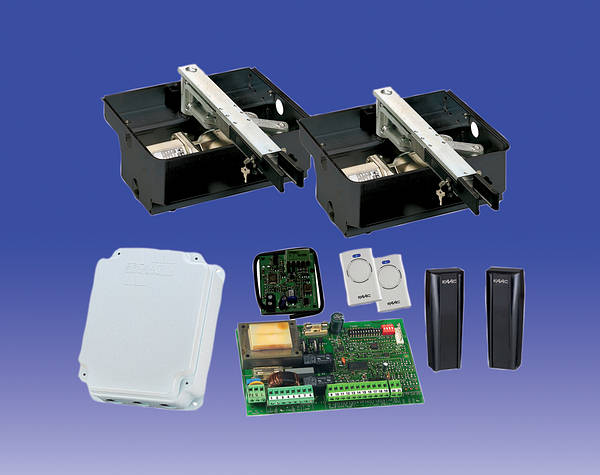

  • 2 x 770 electro-mechanical operators
  • 2 x foundation boxes
  • 1 x control board and housing
  • 1 x set of photocells
  • 2 x manual release keys
  • 1 x plug-in 868MHz receiver
  • 1 x 2 button 868MHz transmitter
  • Power supply 230V / 50Hz
  • Absorbed power 380W
  • Max torque 330Nm
  • Motor winding thermal cut-out 140”C
  • Temp range -20”C + 55”C
  • Operator weight 14kg
  • Protection class IP67
  • Duty cycle (cycles/hour) 20
  • Open time 15 sec/90
Not Stocked at all Branches Please allow 2 - 3 days for stock transfer


770 Data Sheet - 200kb 770 Installation - 600kb Guide to Safety and Standards - 700kb IP Rating Chart
