3w LED Recessed Ground Light Stainless Steel IP65 - 6000K
Product Code: LE DGL3D
5055832938590
LEDGL3D
Loading …
Please note:
IP65 fittings are not submersible
To test the drainage below the luminaire, the hole should be filled with water and be able to
drain away within 30 mins
IP65 fittings are not submersible
To test the drainage below the luminaire, the hole should be filled with water and be able to
drain away within 30 mins
3w LED Recessed Ground Light
Stainless Steel IP65 - 6000K
Stainless Steel IP65 - 6000K
230V IP65 3W LED recessed ground light. Stainless steel bezel and aluminium body.
Ideal for driveways and decking, safe for indoor and outdoor use. Integral driver, 6000K Cool White. SMD
Ensure that a minimum 300mm of drainage is put in below the luminaire
Note: to test the drainage below the luminaire, the hole should be filled with water and be able to drain away within 30 mins
Supplied with 2 mtr outdoor flex.
Must be installed Vertically can not be installed Horizontally within walls etc
Ideal for driveways and decking, safe for indoor and outdoor use. Integral driver, 6000K Cool White. SMD
Ensure that a minimum 300mm of drainage is put in below the luminaire
Note: to test the drainage below the luminaire, the hole should be filled with water and be able to drain away within 30 mins
Supplied with 2 mtr outdoor flex.
Must be installed Vertically can not be installed Horizontally within walls etc
- Lumens : 290lm
- Efficacy (lm/W): 96
- CCT: 6000K
- LED colour: Cool White
- Input voltage: Mains 230V 50Hz
- Construction body: Stainless Steel 304 Grade
- IP Rating: IP65
- Life Span (Hrs): 30,000
- Cable length (m): 2m
- Warranty: 2 Years
- Dimmable: No

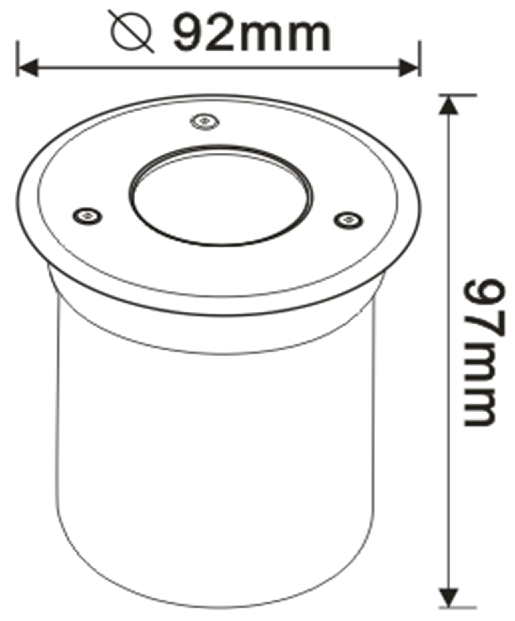

- Overall dimensions :
Diameter: 92mm,
Recess: 97mm - Cut out with mounting sleeve : 78mm
Please note:
IP65 fittings are not submersible
To test the drainage below the luminaire, the hole should be filled with water and be able to
drain away within 30 mins
IP65 fittings are not submersible
To test the drainage below the luminaire, the hole should be filled with water and be able to
drain away within 30 mins
Technical:LEDGL3D Datasheet LEDGL3D Instructions LEDGL3D Line Drawing |
|
