6w LED Recessed Ground Light Stainless Steel IP65
Product Code: LE DGL6
5055832931065
LDGL6
Loading …
Please note:
IP65 fittings are not submersible
To test the drainage below the luminaire, the hole should be filled with water and be able to
drain away within 30 mins
IP65 fittings are not submersible
To test the drainage below the luminaire, the hole should be filled with water and be able to
drain away within 30 mins
6w LED Recessed Ground Light
Stainless Steel IP65
Stainless Steel IP65
304 Stainless steel bezel aluminium housing and plastic mounting sleeve.
Supplied complete with 2mtr outdoor flex.
AC-LED COB non-dimmable.
Low maintenance, long life.
Suitable for drive over (max 5mph 800kg) when used in conjunction with sleeve in tarmac or concrete and decking
Low surface temperature, safe for use indoor and outdoor.
Must be installed Vertically can not be installed Horizontally within walls etc
- Diameter: 129 mm
- Depth: 70mm
- Cut Out: 108 mm (without sleeve)
- Cut Out: 114 mm (with sleeve)
- LED Colour: 3000k
- Wattage: 6w
- Lumens: 405lm
- Ensure that a minimum 300mm of drainage is put in below the luminaire
- Note: to test the drainage below the luminaire, the hole should be filled with water and be able to drain away within 30 mins
Please note:
IP65 fittings are not submersible
To test the drainage below the luminaire, the hole should be filled with water and be able to
drain away within 30 mins
IP65 fittings are not submersible
To test the drainage below the luminaire, the hole should be filled with water and be able to
drain away within 30 mins

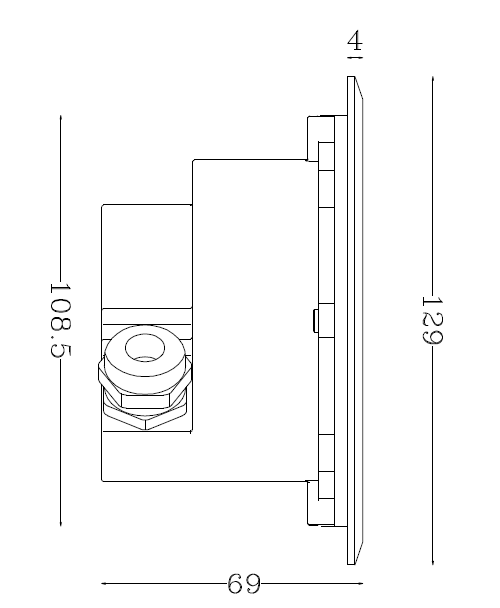

Technical:LEDGL6 Datasheet LEDGL6 Instructions LEDGL6 Line Drawing |
|
