TriBoom Ultra High Gain 5G Compliant Aerial
Product Code: MX LAB450K
5050171054512
LAB450K
Loading …
( 50mm Pole recommended )
Check Freeview coverage area
( see link below )
http://www.freeview.co.uk/
Dimensions:
Length: 1110mm.
Width: 600mm.
Labgear
TriBoom Ultra High Gain 5G compliant Aerial
TriBoom Ultra High Gain 5G compliant Aerial
for easy storage/transportation
This Digital aerial is ideal for fringe reception areas.
This is one of the best digital aerials on the market.
- Tilting mast clamp for easy adjustment
- Easy dipole assembly
- Compact folding design
- High Gain: 13.5dBi
- Channels 21 to 48.
- Frequency range: 470 - 694Mhz.
- Front/Back Ratio: >16dB
- Beam Width +/-deg: H32°/V40°.
- Connection: F type
- Electronic 75O balun.
- Rejects 5G mobile interference (This replaces Channel 5 compatible).
( 50mm Pole recommended )
Check Freeview coverage area
( see link below )
http://www.freeview.co.uk/
Dimensions:
Length: 1110mm.
Width: 600mm.
Technical:MXLAB450K Datasheet pdf MXLAB450K Instructions pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
MX LAB450K
TriBoom Ultra High Gain 5G Compliant Aerial |
Digital Satellite Cable
Loading …
See product for Cable Clips, Glands and Accessories

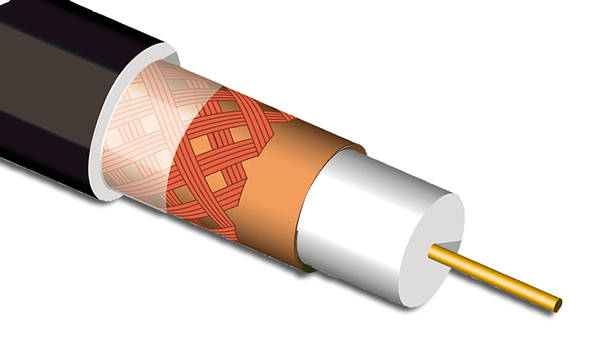

Digital Satellite & Aerial Cable
( Full specification click product code )
( Full specification click product code )
Ideal for installations where the satellite cable must be very durable
With a gas-injected foam-core dielectric, the PF100 is very robust, watertight and ready for digital satellite
Best Materials - PF100 cable uses MYLAR together with bare copper in the braiding
to enhance durability and prevent cracking
Easy to install - PF100 cables are thin, flexible and metre-marked
- Approved to RNE678/100-06 2001 by the CAI (certificate no. CAI 0069A)
- Approved to BS EN 50117 - the standard recommended for he domestic installation of satellite equipment by the UK's leading provider of digital satellite services and the CAI
-
For cut lengths of cable
Please Enter Quantity Required e.g.
1 = 1 Metre
5 = 5 Metres etc. - For 100Mtr of cable
Please Enter Quantity 100
| See product for Cable Clips, Glands and Accessories |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Metres
|
|---|---|
Tv Coaxial Cables
Loading …
See product for Accessories, Cable Clips and Glands

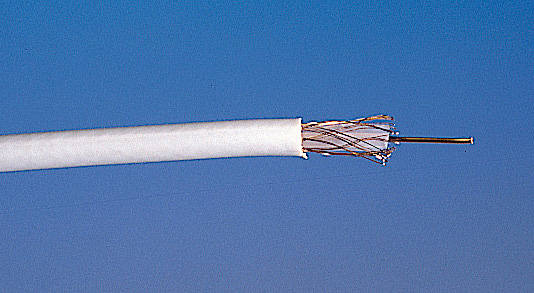

Tv Coaxial Cables
75 Ohm
75 Ohm
Semi Airspaced - Low Loss
Full range of Coaxial Accessories
-
For cut lengths of cable
Please Enter Quantity Required e.g.
1 = 1 Metre
5 = 5 Metres etc.
-
For 100Mtr of cable
Please Enter Quantity 100
| See product for Accessories, Cable Clips and Glands |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Metres
|
|---|---|
Interlocking Aerial Mast Sections
Loading …
See product for Accessories
40mm x 1.5mtr Interlocking Aerial Mast Sections
Once assembled they should be considered permanent, as they lock together
and are difficult to separate,
We recommend a maximum of three fitted together in one installation
Max 3 Sections = 4.5mtrs Mast
Interlocking Mast Sections are the perfect solution
for sending long aerial masts by carrier
and reduces the carriage costs
| See product for Accessories |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Aerial Fixings Brackets Lashing Kits and U Bolts
Loading …
MX 341
MX 330
MX 339
MX 335
FX RBM10
See product for Accessories
Aerial Fixings & Brackets for
1, 1¼ & 1½ Inch diameter Poles
1, 1¼ & 1½ Inch diameter Poles
| See product for Accessories |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Aerial Fixings & Brackets for 2 inch Poles
Loading …
MX 342
MX 335
MX TK24G
MX LK13G
FX RBM10
See product for Accessories
Aerial Fixings & Brackets for 2 inch Poles
| See product for Accessories |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Accessories
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
