Demon Cato Rollatray 450mm x 15m Heavy Goods*
Product Code: RT 450
5056560207491
RT450
Loading …
Demon Cato
Rollatray
450mm x 15m
Rollatray
450mm x 15m

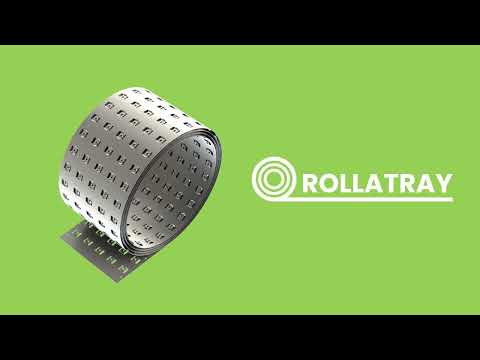

Rollatray is a unique innovation, designed to dramatically increase installation speeds
and reduce downtime in a wide variety of installations.
Available in three widths (150mm, 300mm and 450mm), each Rollatray unit is supplied in 15 metre coils, essentially enabling the installer to simply unroll to the required length and cut with a dedicated guillotine or angle grinder.
With no couplers or brackets needed, as is necessary with standard cable tray, these coils roll out at a speed of 1 metre per second, with the added benefit of having no material memory meaning Rollatray lies flat once uncoiled and is attached directly to substrates.
Manufactured from pre-galvanised sheet steel, Rollatray is perfectly suited to internal applications where large cable runs are required.
Featuring a dry to touch oil applied to cut areas of the material, Rollatray features suitable corrosion resistant properties for installations within commercial buildings, riser mains, multi-storey buildings and factory/automation lines, to name some examples.
Key Features
Offers installers up to 90% labour savings, compared with traditional cable tray.
Simple bends, tees & 4 ways - simply overlap units and secure with an M6 screw.
No couplers or brackets - install anywhere with a solid, flat surface.
Flexible fixing arrangement using innovative raised "nipples" and snail form thread.
Complies with BS EN 10346:2009 and manufactured to the requirements of BS EN 61537:2007, meeting the same standard as cable tray.
and reduce downtime in a wide variety of installations.
Available in three widths (150mm, 300mm and 450mm), each Rollatray unit is supplied in 15 metre coils, essentially enabling the installer to simply unroll to the required length and cut with a dedicated guillotine or angle grinder.
With no couplers or brackets needed, as is necessary with standard cable tray, these coils roll out at a speed of 1 metre per second, with the added benefit of having no material memory meaning Rollatray lies flat once uncoiled and is attached directly to substrates.
Manufactured from pre-galvanised sheet steel, Rollatray is perfectly suited to internal applications where large cable runs are required.
Featuring a dry to touch oil applied to cut areas of the material, Rollatray features suitable corrosion resistant properties for installations within commercial buildings, riser mains, multi-storey buildings and factory/automation lines, to name some examples.
Key Features
Offers installers up to 90% labour savings, compared with traditional cable tray.
Simple bends, tees & 4 ways - simply overlap units and secure with an M6 screw.
No couplers or brackets - install anywhere with a solid, flat surface.
Flexible fixing arrangement using innovative raised "nipples" and snail form thread.
Complies with BS EN 10346:2009 and manufactured to the requirements of BS EN 61537:2007, meeting the same standard as cable tray.
- Manufactured from 0.8mm medium duty pre-galvanised steel
- Manufactured to BS EN 10346:2009 (Continuously Hot-Dip Coated Steel Flat Products) in line with standard cable tray
- Meets the earthing requirements of BS EN 61537:2007 (Cable Management - Cable Tray Systems & Cable Ladder Systems)
- Each coil is coated with a dry to touch oil to protect any cropped areas of the sheet material
- Easily cut to size using a guillotine with no hot works permits required, offering significant on-site health & safety benefits
- Suitable for structured cabling, fibre optic, fire/security and low voltage distribution
- Fixed to a structure simply using tapcon screws or a Pulsa nail gun
- Each coil rolls out in a controlled manner at 1 metre per second
- No material memory means Rollatray lies flat once uncoiled, ready for installation
- All Rollatray coils are supplied in weatherproof coverings ensuring efficient delivery to site
Technical:Rollatray Brochure - 10mb pdf RT450 Datasheet - 390kb pdf |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
|
RT 450
Demon Cato Rollatray 450mm x 15m Heavy Goods* |
Cable Ties - Stainless Steel (316)
Loading …
See product for Accessories
Stainless Steel (316)
Cable Ties
Cable Ties
and more when harsh environmental conditions may adversely affect the bundling application.
Used where corrosion, vibration, weathering, radiation and temperature extremes are a concern,
Grade 316 stainless steel ties can be used in virtually any indoor, outdoor and underground application.
It has self locking, ball bearing mechanism for quick and easy installation,
either by hand or by tensioning tool.
Operating Temperature between -35°C and 180°C.
| See product for Accessories |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Black Cable Ties
Loading …
See product for Accessories
Black Cable Ties
Inert to mould and fungus
Securing and tidying cables
- Made from Polyamid 6/6
- Zero Halogen
- Flammability rating: UL 94 class V2Dielectric strength: 50,000 volts/mm
-
Resistance to external agents
Excellent resistance to bases, oils, grease, oil products, chlorate solvents
Limited resistance to all acids
No resistance to phenols
| See product for Accessories |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Natural / White Cable Ties
Loading …
See product for Accessories
Natural Cable Ties
Inert to mould and fungus
Securing and tidying cables
- Made from Polyamid 6/6
- Zero Halogen
- Flammability rating: UL 94 class V2Dielectric strength: 50,000 volts/mm
-
Resistance to external agents
Excellent resistance to bases, oils, grease, oil products, chlorate solvents
Limited resistance to all acids
No resistance to phenols
| See product for Accessories |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Cable Ties - 200mm x 4.8mm - Colours
See product for Accessories
Cable Ties
200mm x 4.8mm - Colours
200mm x 4.8mm - Colours
| See product for Accessories |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Cable Ties 300mm x 4.8mm - Colours
See product for Accessories
Cable Ties
300mm x 4.8mm - Colours
300mm x 4.8mm - Colours
| See product for Accessories |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Speedy Tie 750mm x 13mm Yellow
Loading …
Speedy Tie 750mm x 13mm Yellow
With its patented easy to release trigger, applying and re-applying Speedy Tie is simple.
And because it's re-usable it can be used again…and again… and again…
Developed specifically for use in electrical, HVAC and construction industries,
its releasable, re-usability and ease of application means
Speedy Tie is particularly suited where temporary bundling or fixings are required.
Material - High grade Nylon 6.6 (halogen free)
Minimum Tensile Strength
lbs - 200
N - 888
Technical:Spec and Information - pdf 165kb |
|
Product Code
Description
|
Price (ex VAT)
Price (inc VAT)
Quantity
|
|---|---|
Hook & Loop Band
Loading …
Easy Cut
Hook & Loop Band - 1.2m
Hook & Loop Band - 1.2m
It makes a perfect strap or band to bundle cords together,
to attach to wires to a frame or simply stop cables tangling.
Supplied in a 1.2m roll, and easily cut to required length.
It can be pulled open, then re-used over and again!
Fully safety tested to hold 10Kg using a 50mm overlay.
|
